Radio/Audio System Schematics

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

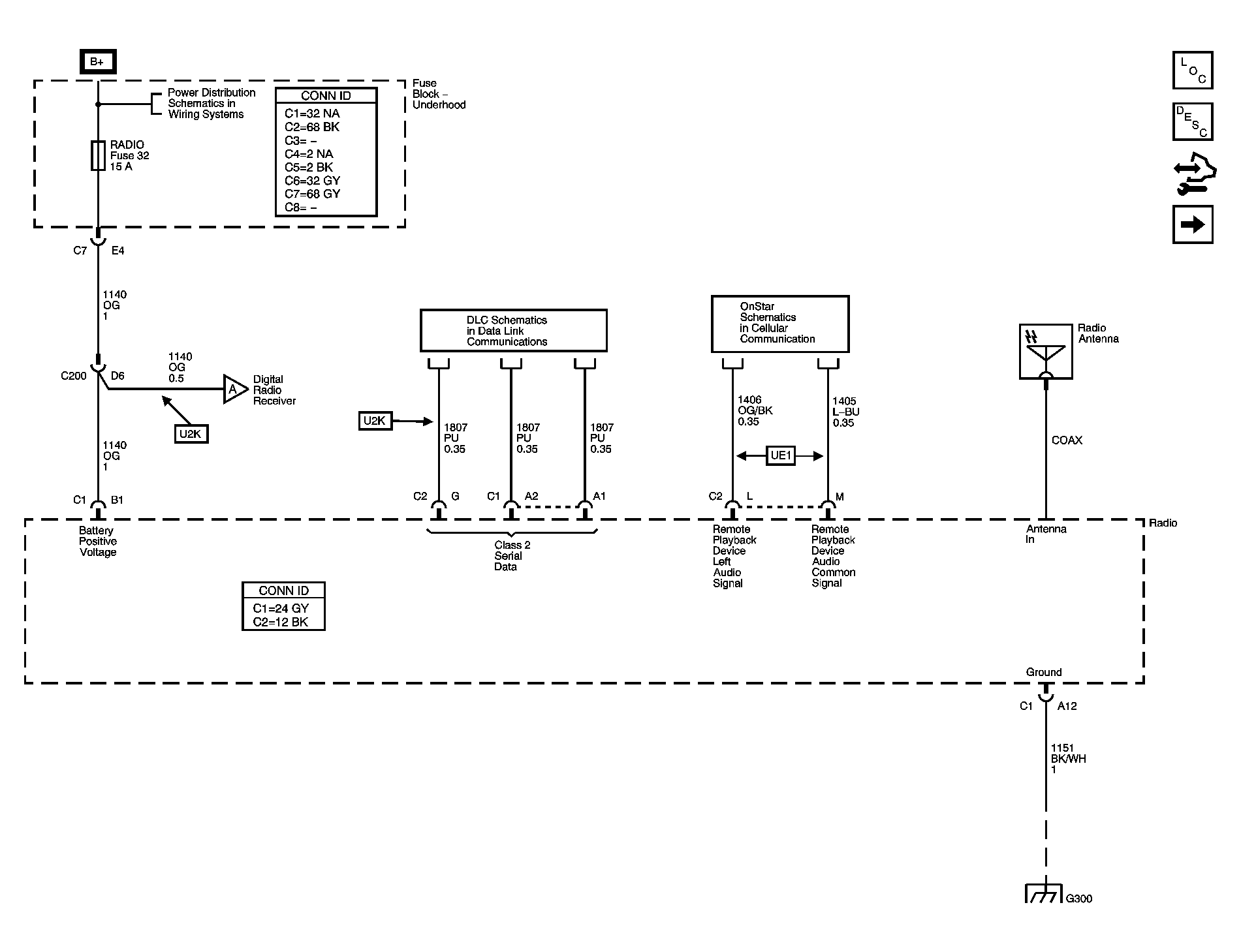

Fig 1: Power, Ground & DLC Schematic

Courtesy of GENERAL MOTORS CORP.

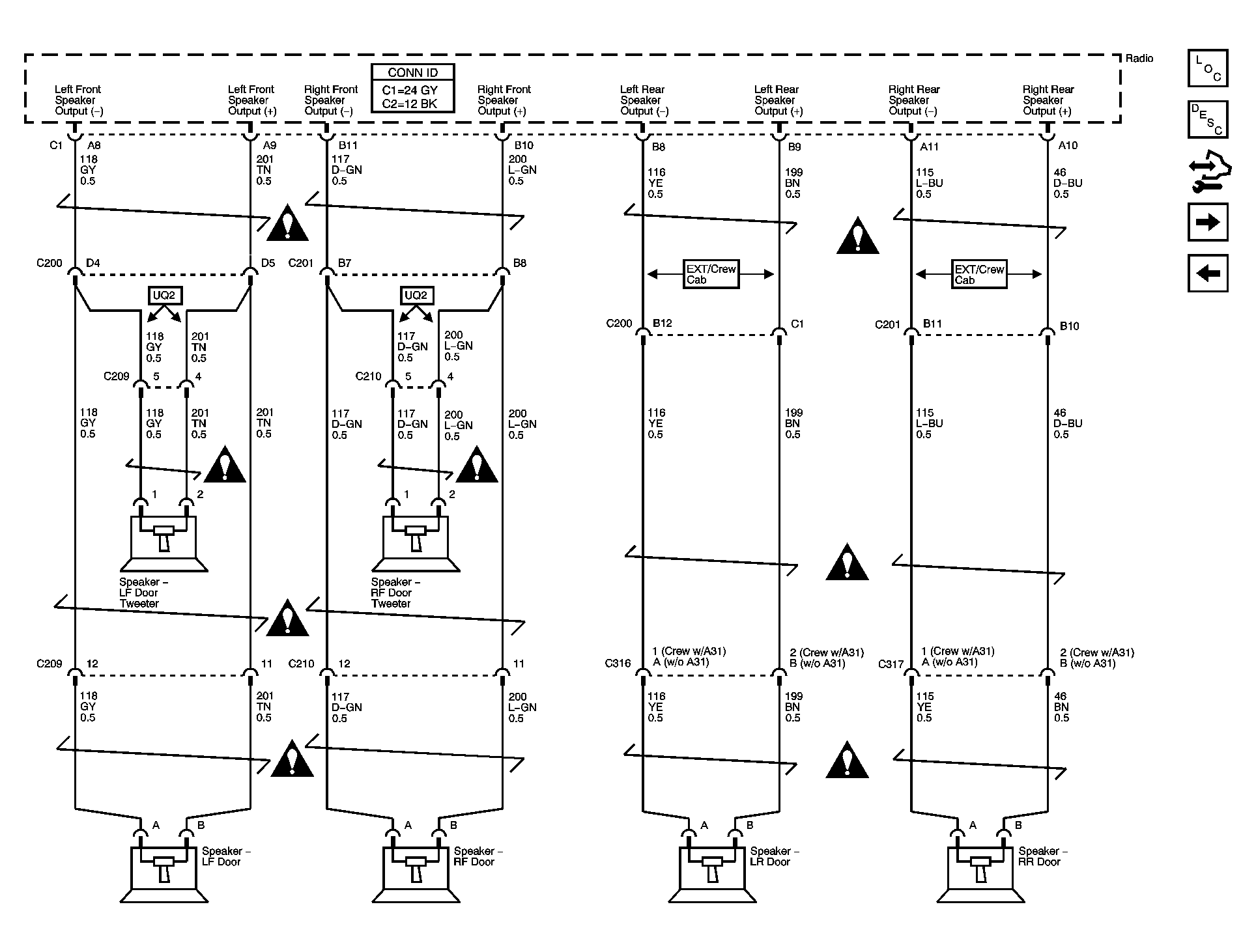

Fig 2: Speakers Schematic

Courtesy of GENERAL MOTORS CORP.

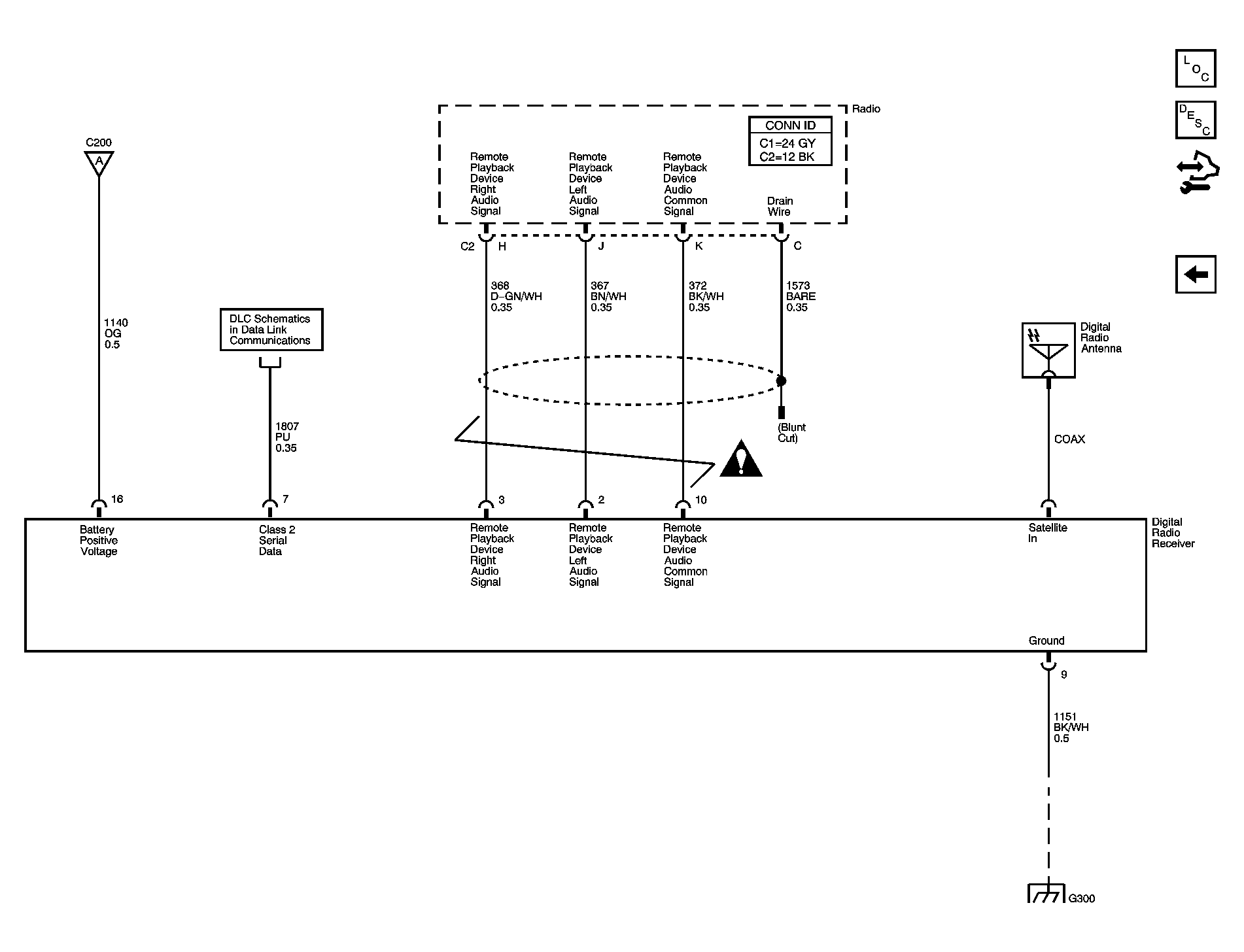

Fig 3: Digital Radio Schematic - U2K

Courtesy of GENERAL MOTORS CORP.
