Installation Procedure

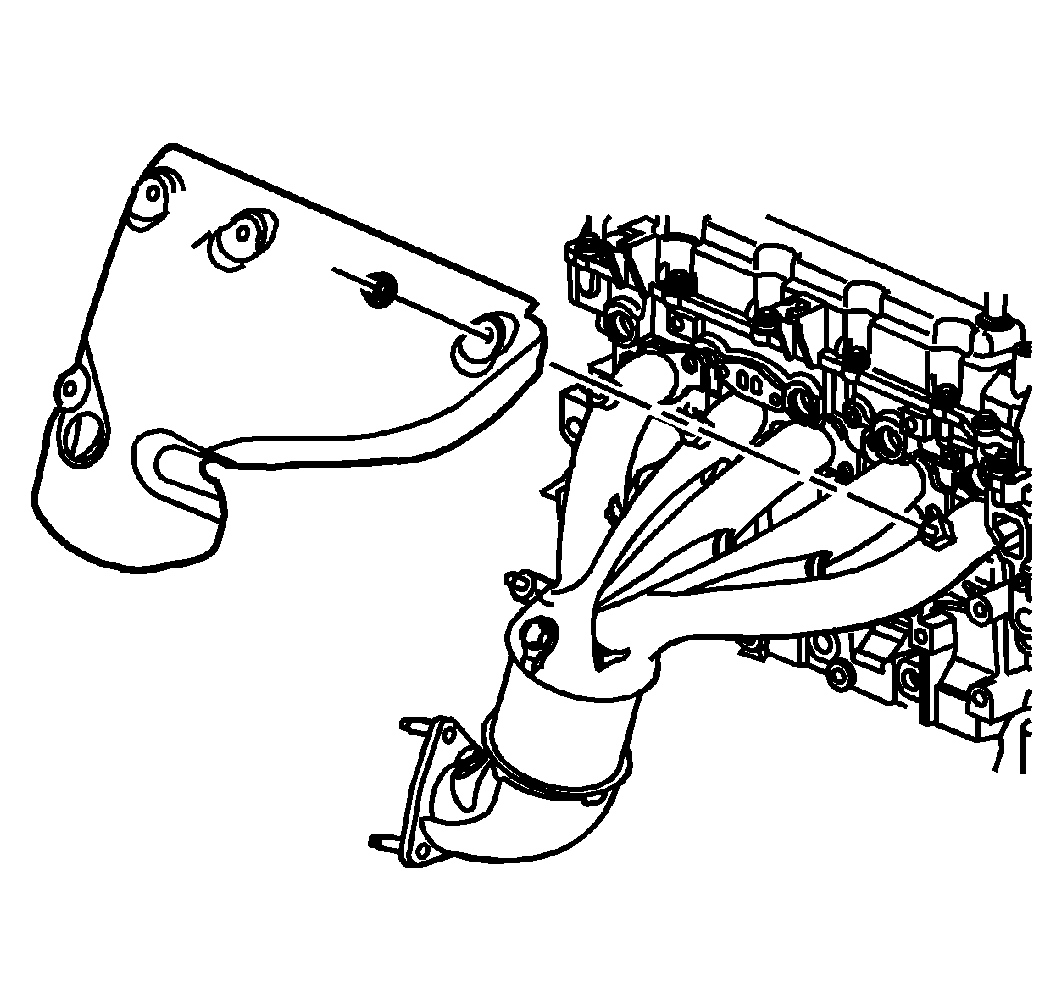

    Fig 1: View Of Exhaust Manifold Heat Shield
    GM858156Courtesy of GENERAL MOTORS CORP.
  1. Install the exhaust manifold heat shield to the exhaust manifold.
  2. Apply anti-seize GM P/N 12371386 (Canadian P/N 993128) to the exhaust manifold heat shield nuts.
    3. NOTE: Refer to Fastener Notice .
  3. Install the exhaust manifold heat shield nuts.

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).

  4. Install the HO2S to the exhaust manifold. Refer to Heated Oxygen Sensor 1 Replacement .

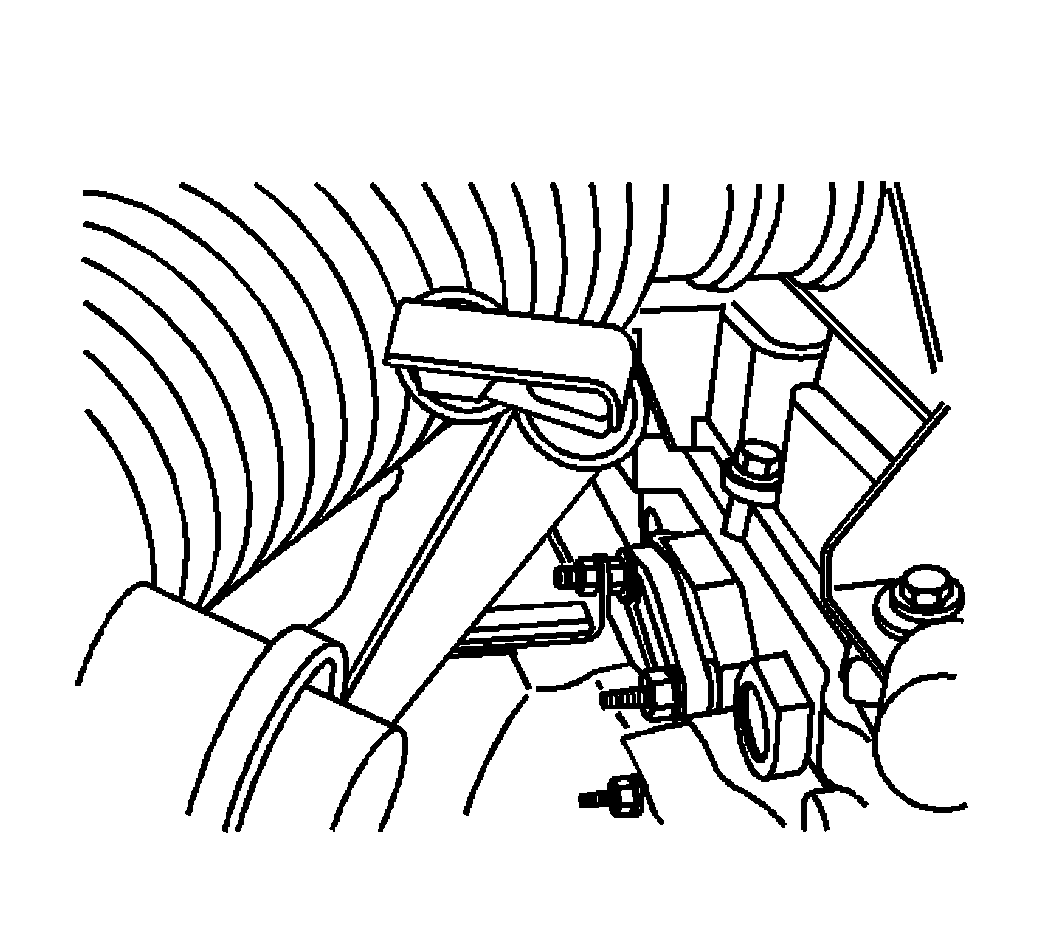

    5. Fig 2: View Of Transmission Filler Tube & Bracket
    GM754346Courtesy of GENERAL MOTORS CORP.
  5. Position the automatic transmission filler tube to the AIR adapter if previously removed.
  6. Install the automatic transmission filler tube bracket nut.

    Tighten:  Tighten the nut to 12.5 N.m (111 lb in).

  7. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  8. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
