Installation Procedure

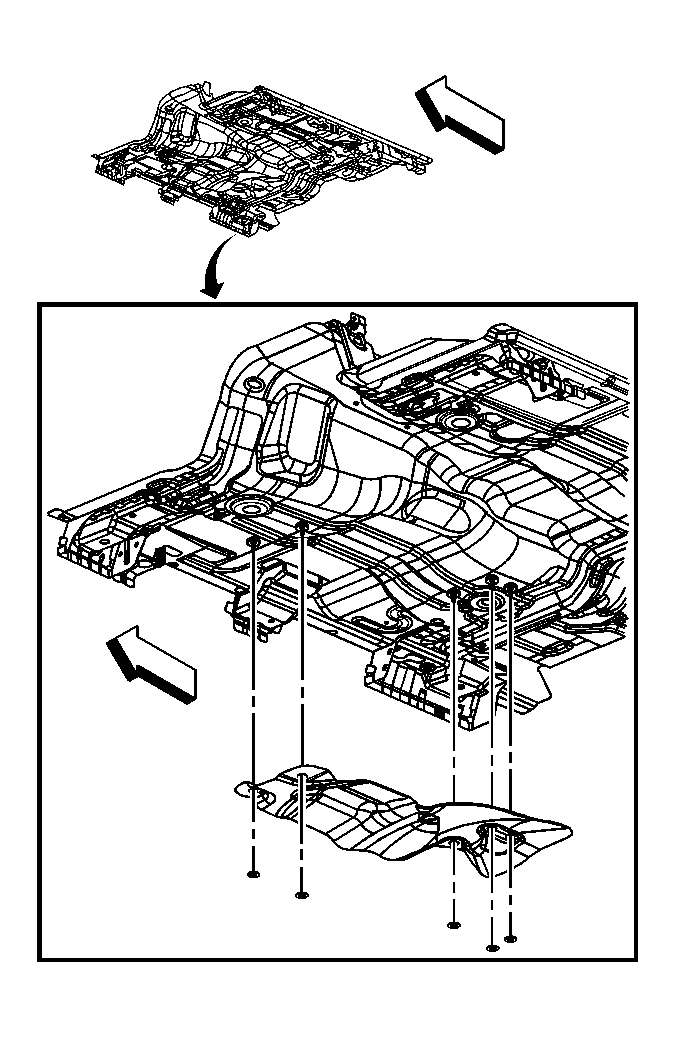

    Fig 1: View Of Catalytic Converter Heat Shield At Floor Panel
    GM1560124Courtesy of GENERAL MOTORS CORP.
  1. Position the catalytic converter heat shield to the floor panel studs.
    2. NOTE: Refer to Fastener Notice .
  2. Install the nuts securing the heat shield to the floor panel.

    Tighten:  Tighten the nuts to 9 N.m (80 lb in).

  3. Remove the catalytic converter. Refer to Catalytic Converter Replacement .
