Accessory Switch Replacement
Accessory Switch Replacement

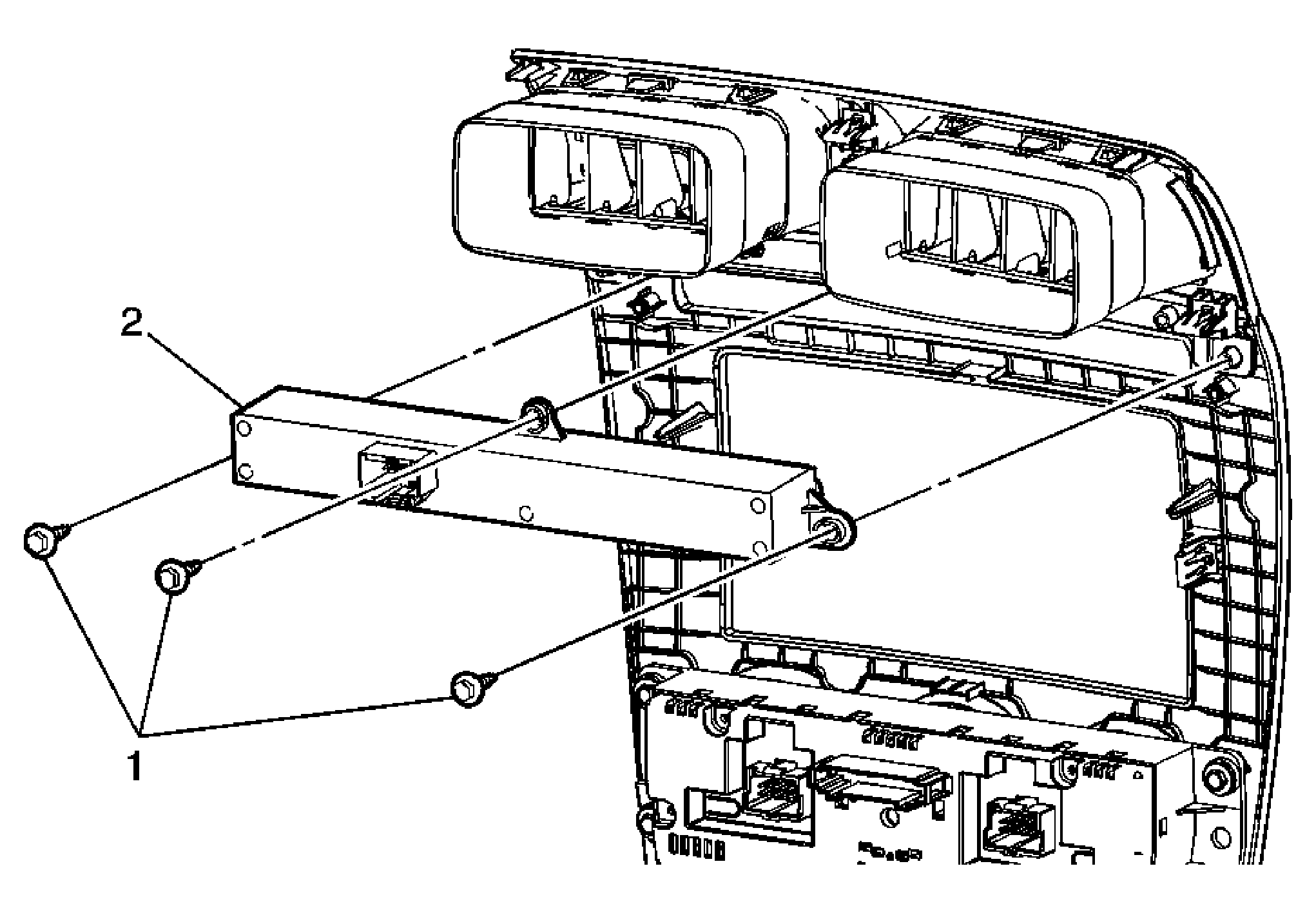

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel center trim plate. Refer to Instrument Panel Center Trim Panel Replacement (Left Hand Drive) or Instrument Panel Center Trim Panel Replacement (Right Hand Drive) . |
|
| 1 | Instrument Panel Accessory Switch Screw (Qty: 3)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Accessory Switch Assembly |
