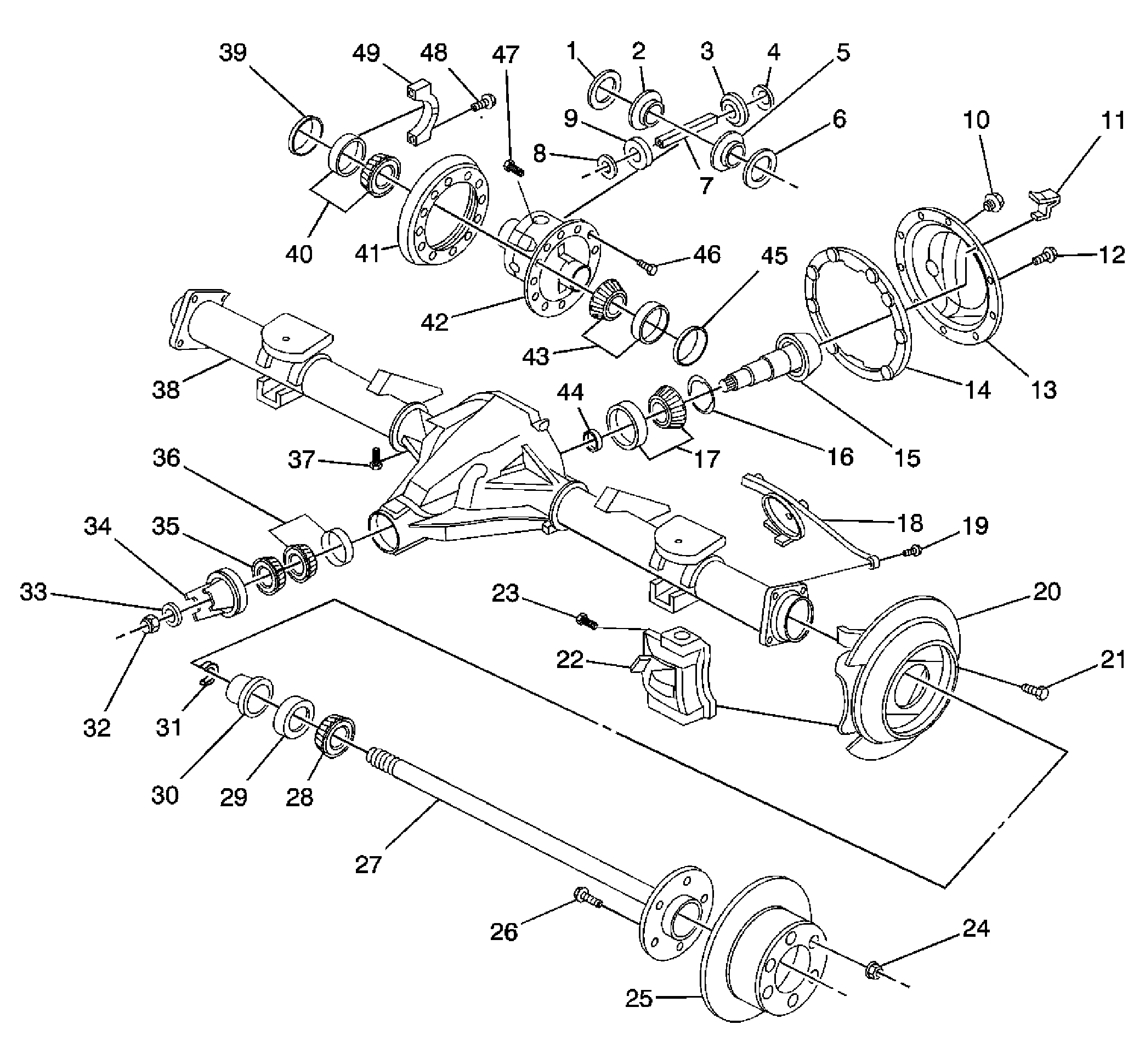

| 1 |
Differential Side Gear Thrust Washer |
| 2 |
Differential Side Gear |
| 3 |
Differential Pinion Gear |
| 4 |
Differential Pinion Gear Thrust Washer |
| 5 |
Differential Side Gear |
| 6 |
Differential Side Gear Thrust Washer |
| 7 |
Differential Pinion Gear Shaft |
| 8 |
Differential Pinion Gear Thrust Washer |
| 9 |
Differential Pinion Gear |
| 10 |
Differential Carrier Fill Plug |
| 11 |
Brake Pipe Bracket |
| 12 |
Rear Axle Housing Cover Bolt/Screw |
| 13 |
Rear Axle Housing Cover |
| 14 |
Rear Axle Housing Cover Gasket |
| 15 |
Differential Ring and Drive Pinion Ratio 4.56 - G80 Gear Set |
| 16 |
Differential Drive Pinion Spacer |
| 17 |
Differential Drive Pinion Gear Inner Bearing Assembly |
| 18 |
Rear Wheel Speed Sensor Assembly |
| 19 |
Rear Wheel Speed Sensor Bolt/Screw |
| 20 |
Park Assembly Brake |
| 21 |
Park Brake Assembly Bolt/Screw |
| 22 |
Rear Brake Assembly Caliper |
| 23 |
Rear Brake Caliper Assembly Bolt/Screw |
| 24 |
Rear Brake Rotor Retainer |
| 25 |
Rear Brake Rotor |
| 26 |
Rear Wheel Stud |
| 27 |
Rear Axle Shaft |
| 28 |
Rear Axle Shaft Seal Assembly |
| 29 |
Rear Axle Shaft Bearing Assembly |
| 30 |
Wheel Speed Sensor Reluctor Ring |
| 31 |
Rear Axle Shaft Lock |
| 32 |
Differential Drive Pinion Gear Nut |
| 33 |
Differential Drive Pinion Gear Washer |
| 34 |
Differential Drive Pinion Gear Yoke |
| 35 |
Differential Drive Pinion Gear Seal |
| 36 |
Differential Drive Pinion Gear Outer Bearing Assembly |
| 37 |
Rear Axle Vent Hose Connector |
| 38 |
Rear Axle Housing Assembly |
| 39 |
Differential Spacer |
| 40 |
Differential Bearing Assembly |
| 41 |
Differential Ring and Gear Pinion 4.56 Ratio - G80 Gear Set |
| 42 |
Differential Case |
| 43 |
Differential Bearing Assembly |
| 44 |
Differential Drive Pinion Gear Bearing Spacer |
| 45 |
Differential Bearing Spacer |
| 46 |
Differential Ring Gear Bolt |
| 47 |
Differential Bolt |
| 48 |
Bearing Cap Bolt (Not Serviced Separately) |
| 49 |
Bearing Cap (Not Serviced Separately) |
