Front Side Door Window Inner Weatherstrip Replacement

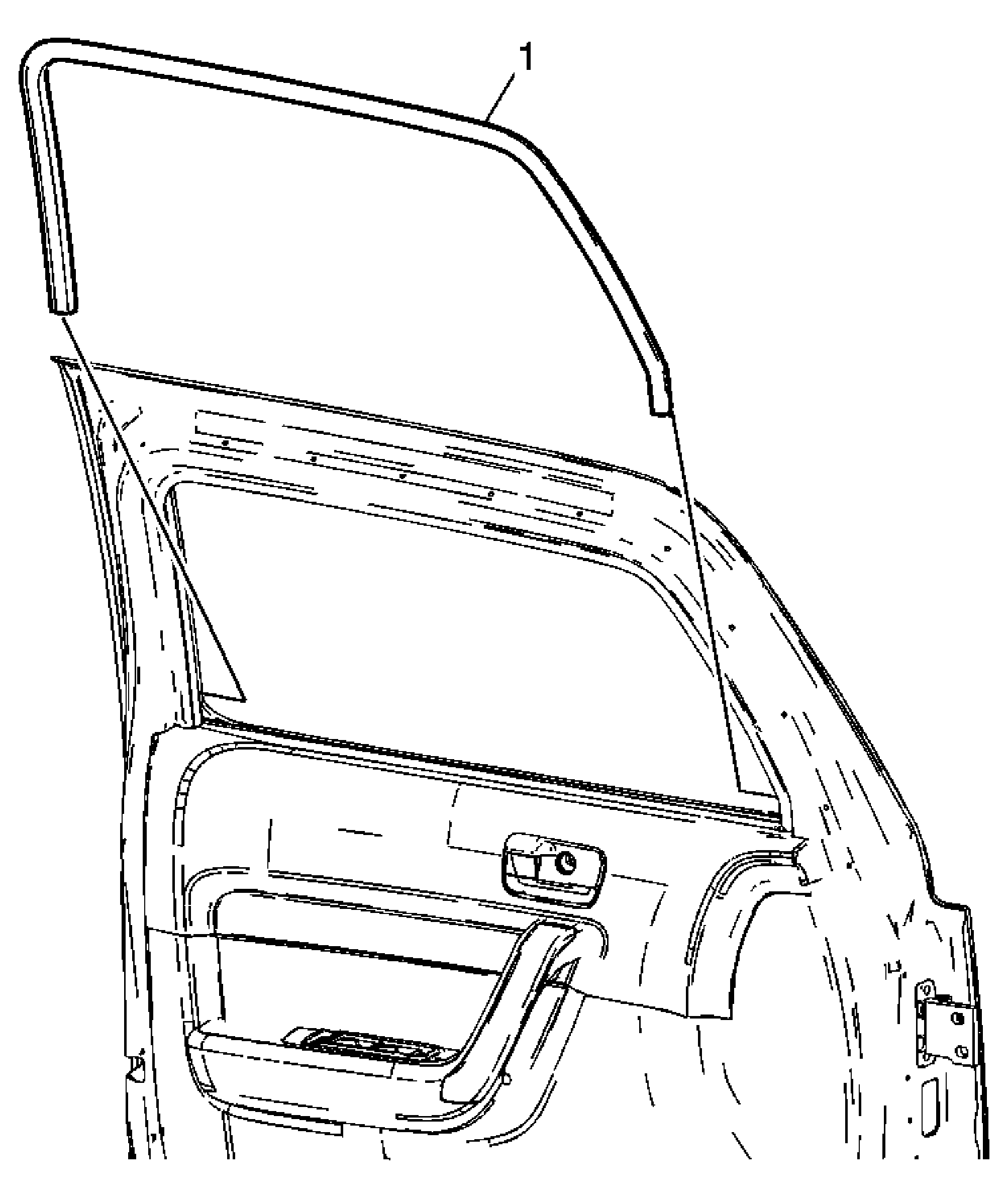

Fig 1: Weatherstrip Replacement - Front Door Window - Inner

Courtesy of GENERAL MOTORS CORP.

Front Side Door Window Inner Weatherstrip Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Weatherstrip, Front Door Window Inner Tip:  Place the window in the full down position to remove the weatherstrip. Pull the weatherstrip from the window frame to remove.
