Position Lamp Bulb Replacement

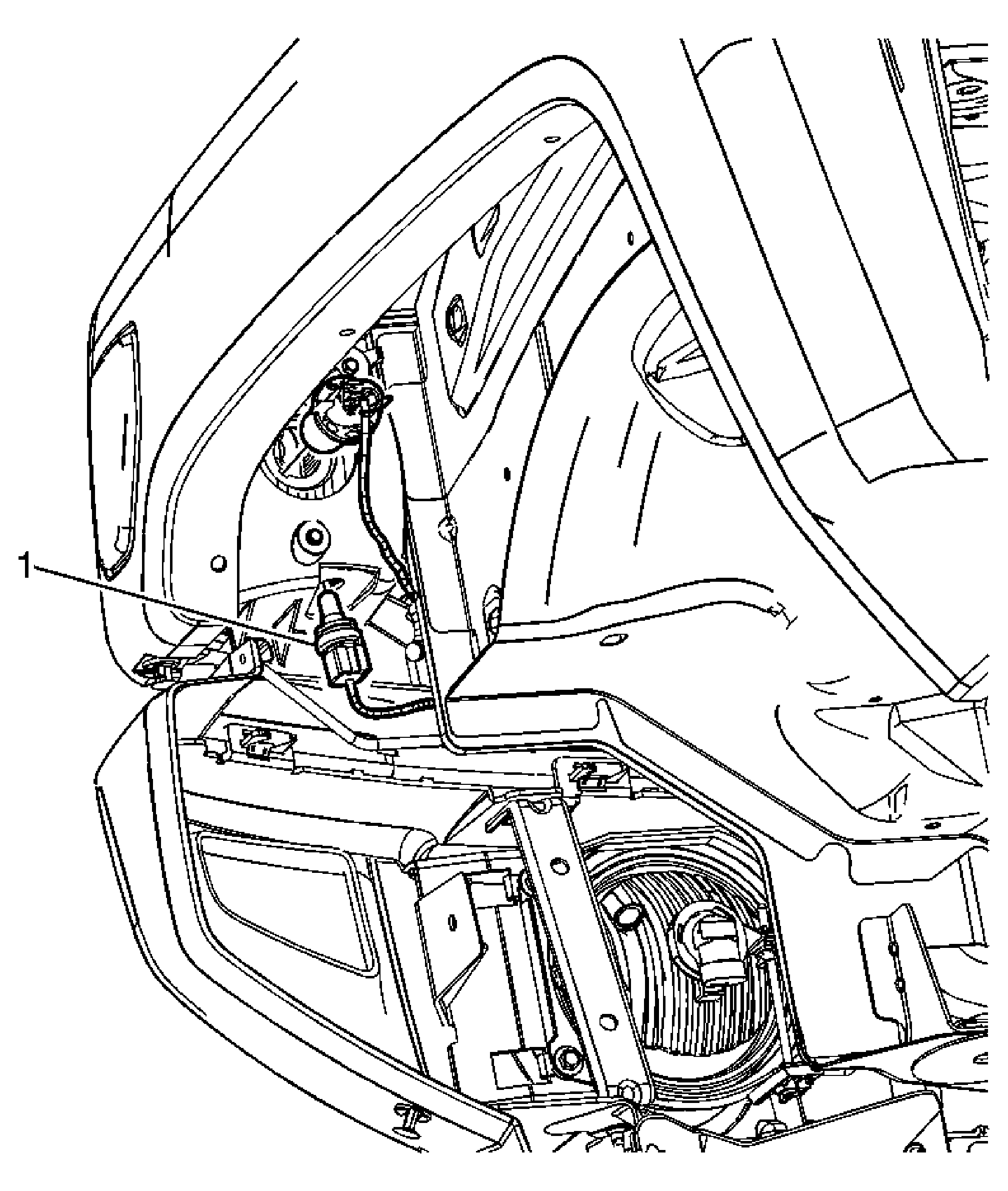

Fig 1: Identifying Position Lamp Bulb
GM1775680Courtesy of GENERAL MOTORS CORP.
Position Lamp Bulb Replacement

Callout Component Name
Preliminary Procedure:
Remove either the RH or LH front wheelhouse panel. Refer to Wheelhouse Panel Replacement (Front) or Wheelhouse Panel Replacement (Rear) .
1 Front Position Lamp Bulb
Tip:
  1. Twist the lamp socket counterclockwise to remove from the lamp assembly.
  2. Remove the bulb from the lamp socket.
