Power Steering Pulley Replacement

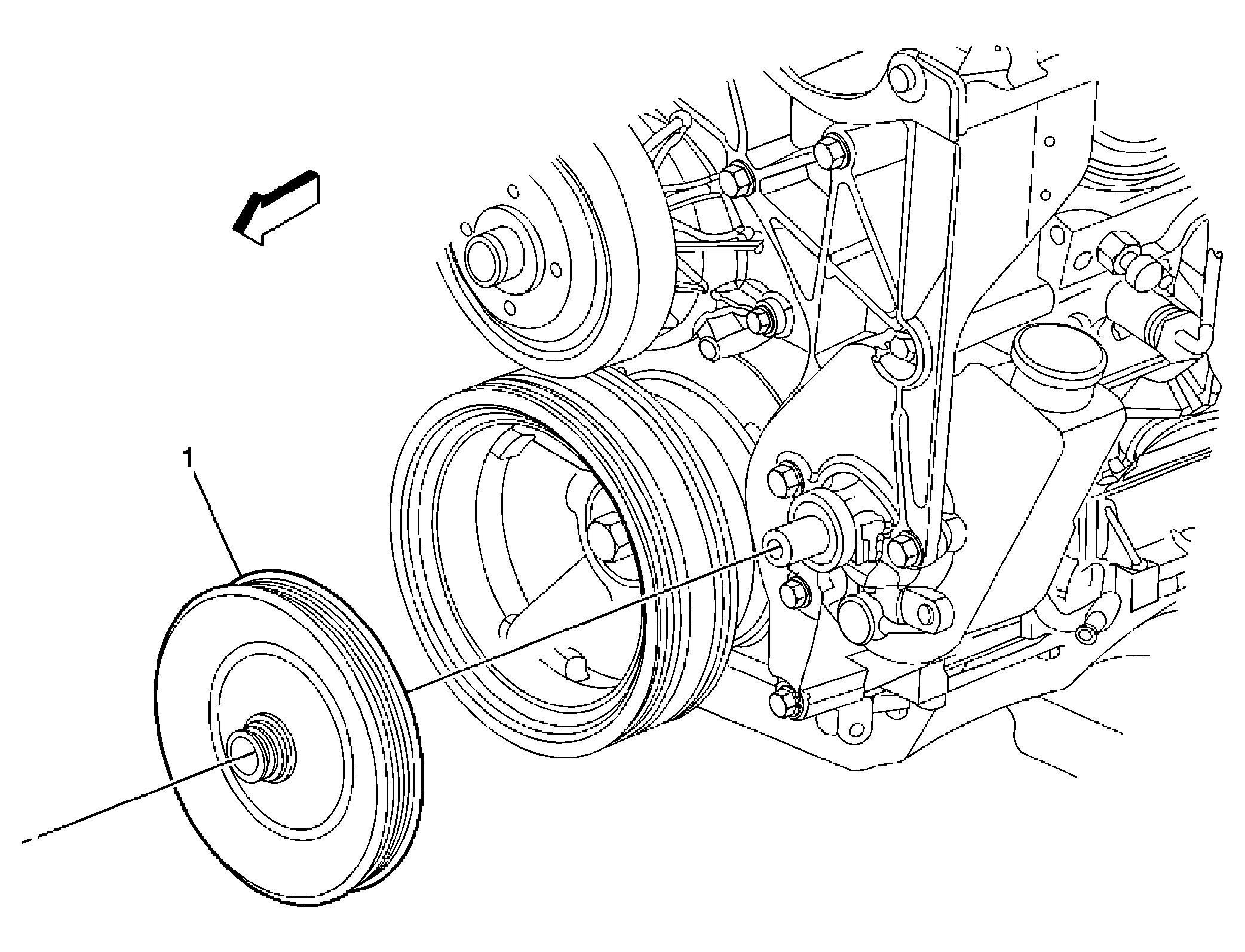

Fig 1: Power Steering Pulley Replacement

GM1830347

Courtesy of GENERAL MOTORS CORP.

Power Steering Pulley Replacement

Callout

Component Name

NOTE: Refer to Fastener Notice .

Preliminary Procedures

Remove the upper fan shroud. Refer to Fan Shroud Replacement .
Remove the drive belt. Refer to Drive Belt Replacement - Accessory .

1

Power Steering Pump Pulley
Tip:

Using the J 25034-C , remove the power steering pump pulley. See Special Tools .
Using the J 25033-C , install the power steering pump pulley. See Special Tools .

Special Tools

J 25034-C Power Steering Pump Pulley Remover. See Special Tools .
J 25033-C Power Steering Pump Pulley Installer. See Special Tools .
