Assist Step Rear Bracket Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

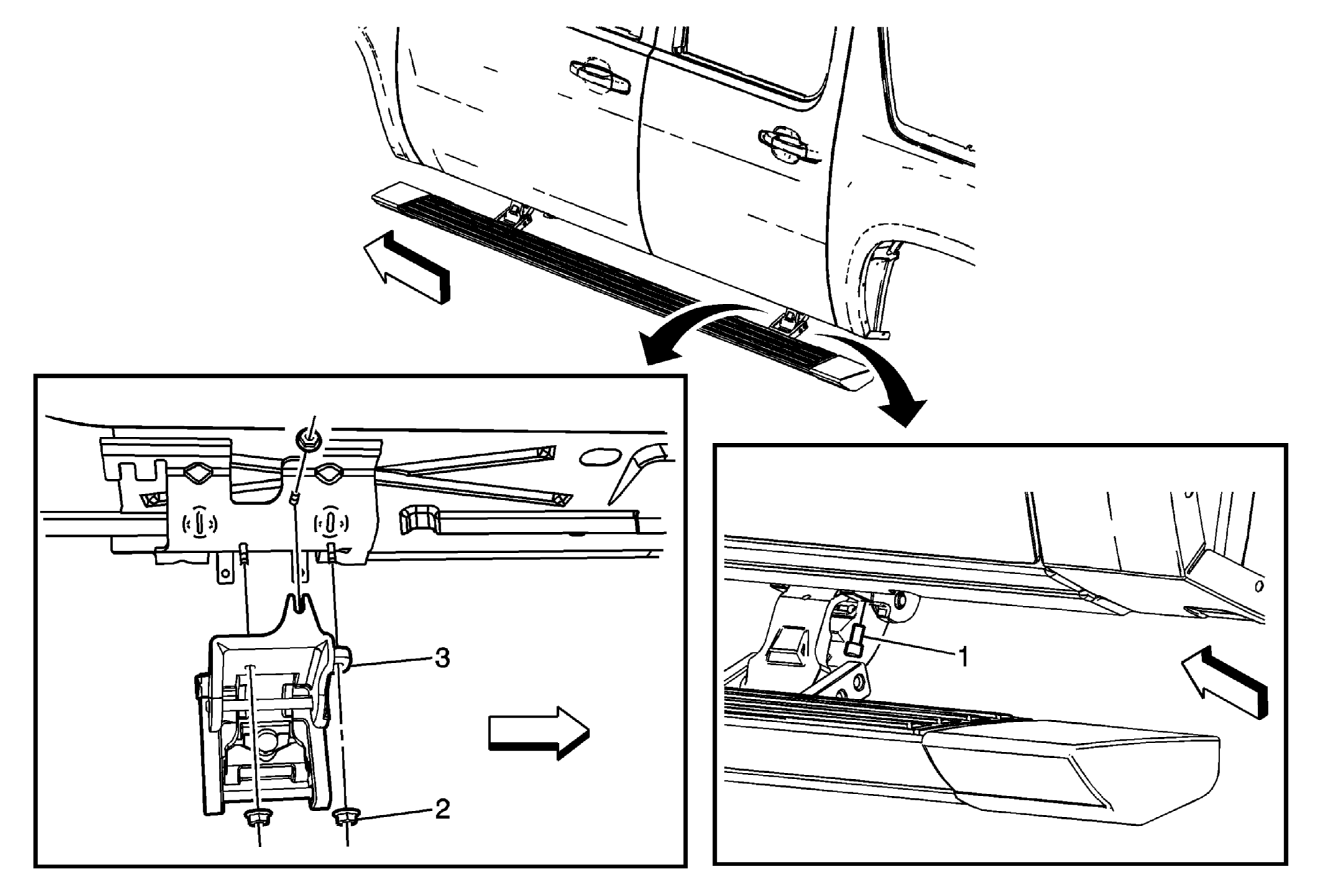

Fig 1: View Of Power Assist Step Rear Bracket, Rear Bracket Nuts & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Deploy and support the power assist step. Use a grease pencil to outline the location of the power assist step rear bracket location on the power assist step. Remove the power assist rear bracket to power assist step bolts. Refer to Assist Step Replacement (Manual) or Assist Step Replacement (Z71 ) or Assist Step Replacement (Power)
1	Power Assist Step Rear Bracket Bolts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 6 N.m (53 lb in)
2	Power Assist Step Rear Bracket Nuts (Qty: 3) Tighten: 10 N.m (89 lb in)
3	Power Assist Step Rear Bracket
