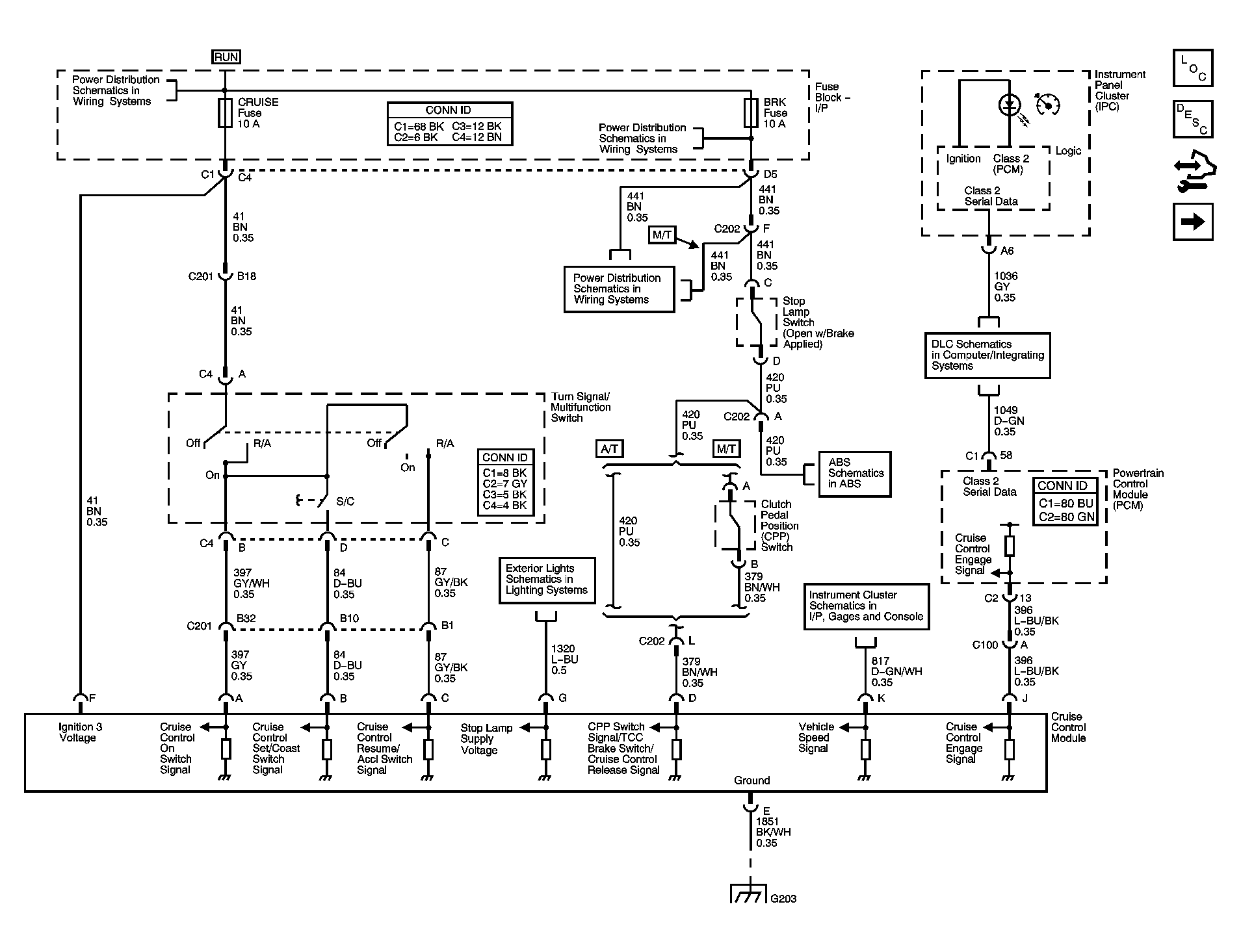

Fig 1: Cruise Control Schematic - 4.3L
Courtesy of GENERAL MOTORS CORP.

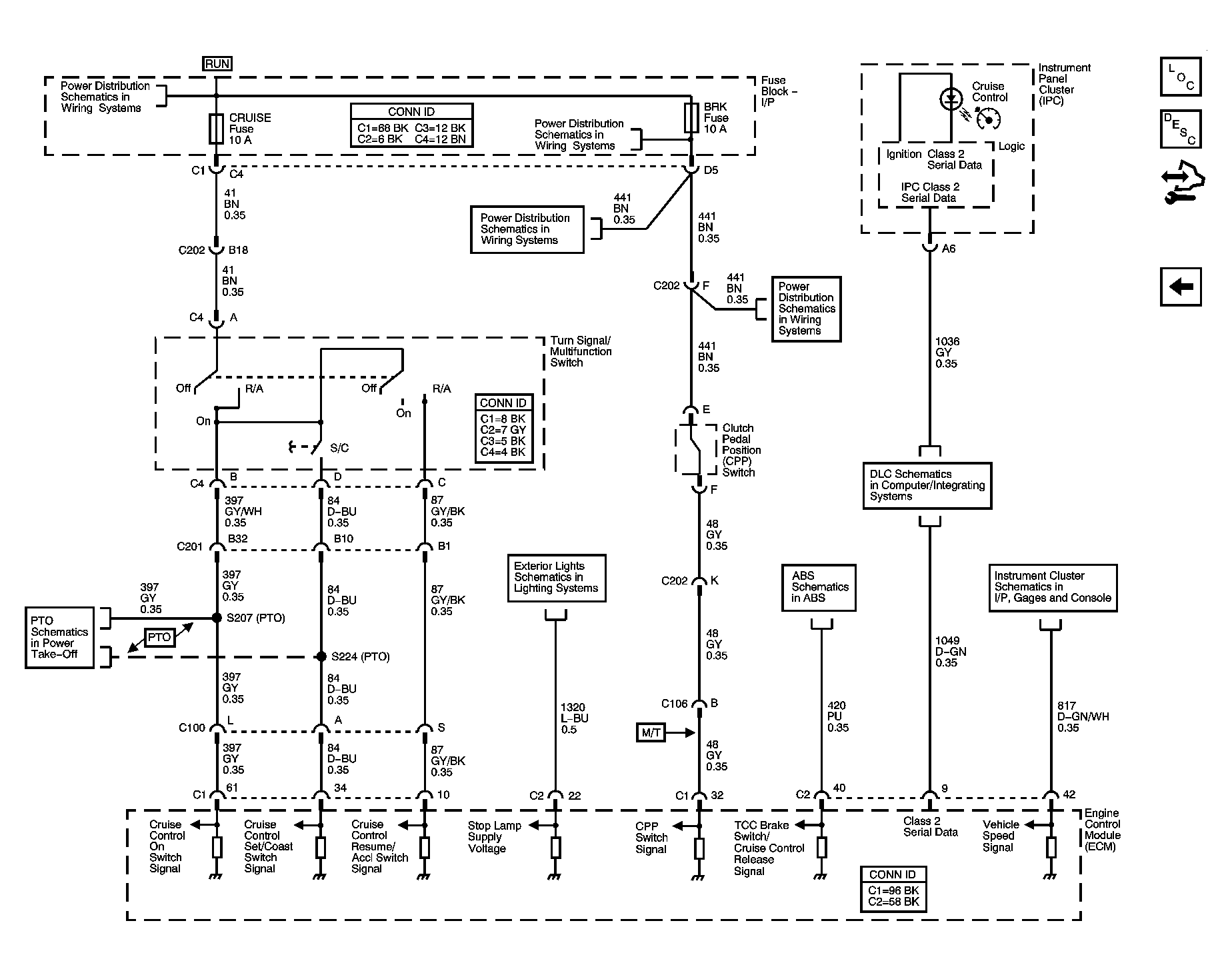

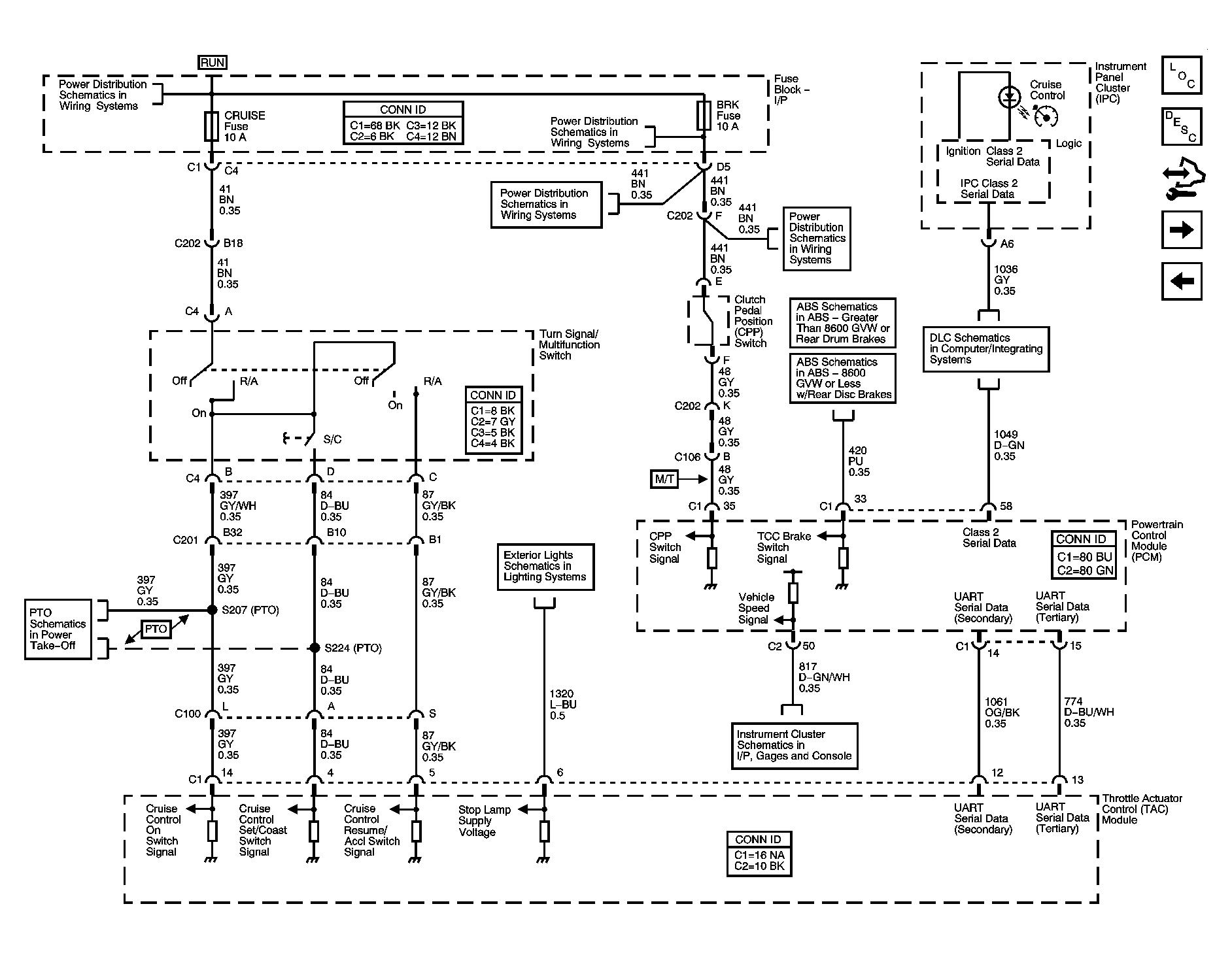

Fig 2: Cruise Control Schematic - 4.8L, 5.3L, 6.0L, and 8.1L
