Installation Procedure

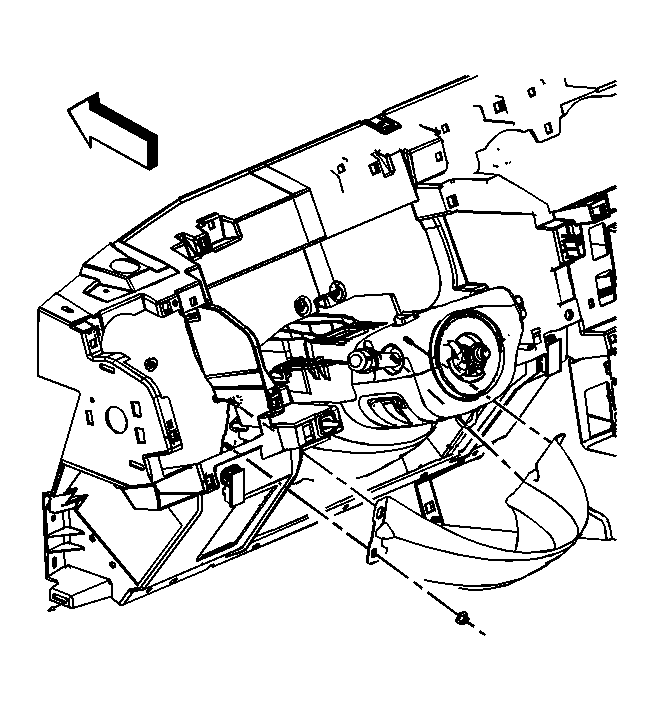

    Fig 1: Steering Column Bracket
    GM832829Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Align and fasten the nuts that hold the knee bolster deflector.

    Tighten:  Tighten the nuts to 2 N.m (18 lb in).

  2. Fasten the screws/bolts that hold the knee bolster trim panel to the I/P. Refer to Driver Knee Bolster Panel Replacement .
  3. Align and move forward center console in place and fasten to the center console bracket. Refer to Console Replacement .
