Installation Procedure

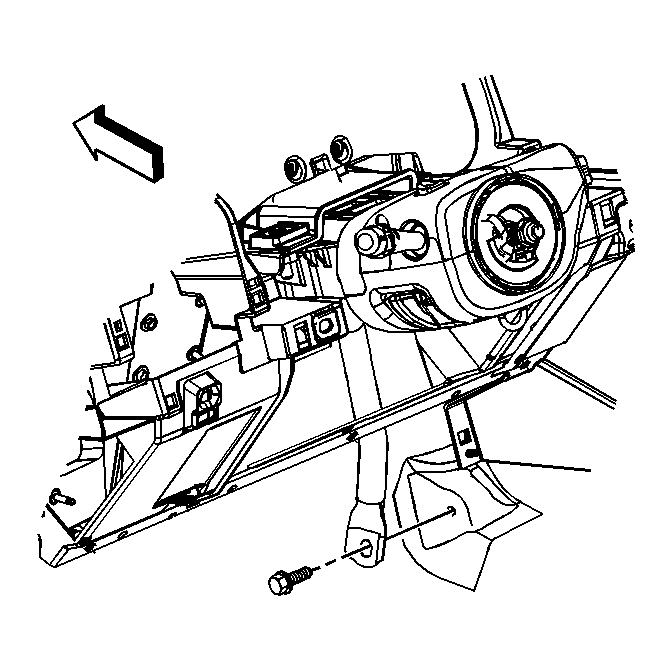

    Fig 1: I/P Carrier Center Support Bracket Nut
    GM832818Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Align the center bracket with the I/P and floor, then bolt the bracket in place.

    Tighten:  Tighten the bolt to 25 N.m (18 lb in).

  2. Install the extension panel the I/P. Refer to Instrument Panel Extension Trim Plate Replacement .
  3. Install the center console to the center console bracket. Refer to Console Replacement .
