Installation Procedure

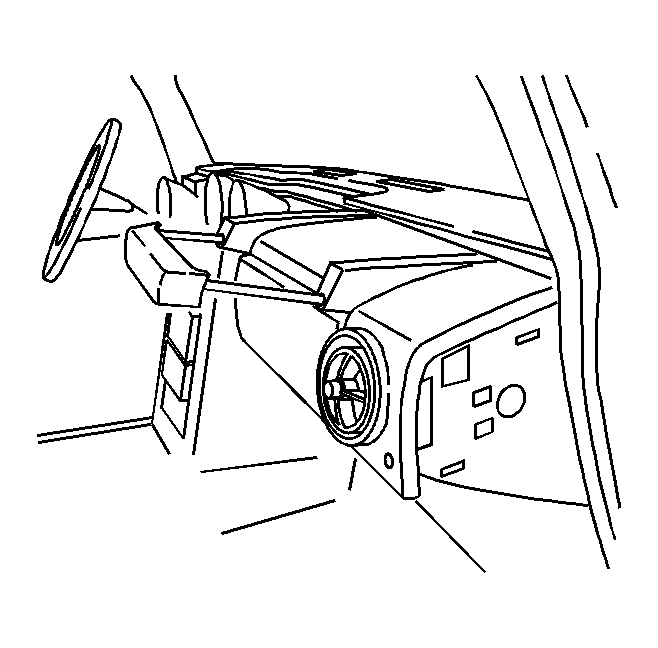

    Fig 1: I/P Assist Handle
    GM816332Courtesy of GENERAL MOTORS CORP.
  1. Line assist handle with holes in I/P and push the I/P assist handle into the I/P until I/P assist handle clicks into place.
  2. Pull rearward on the assist handle to ensure the handle is secure.
  3. Install the passenger side I/P side trim panel.
  4. Close the I/P storage compartment.
