Moveable Window Schematics

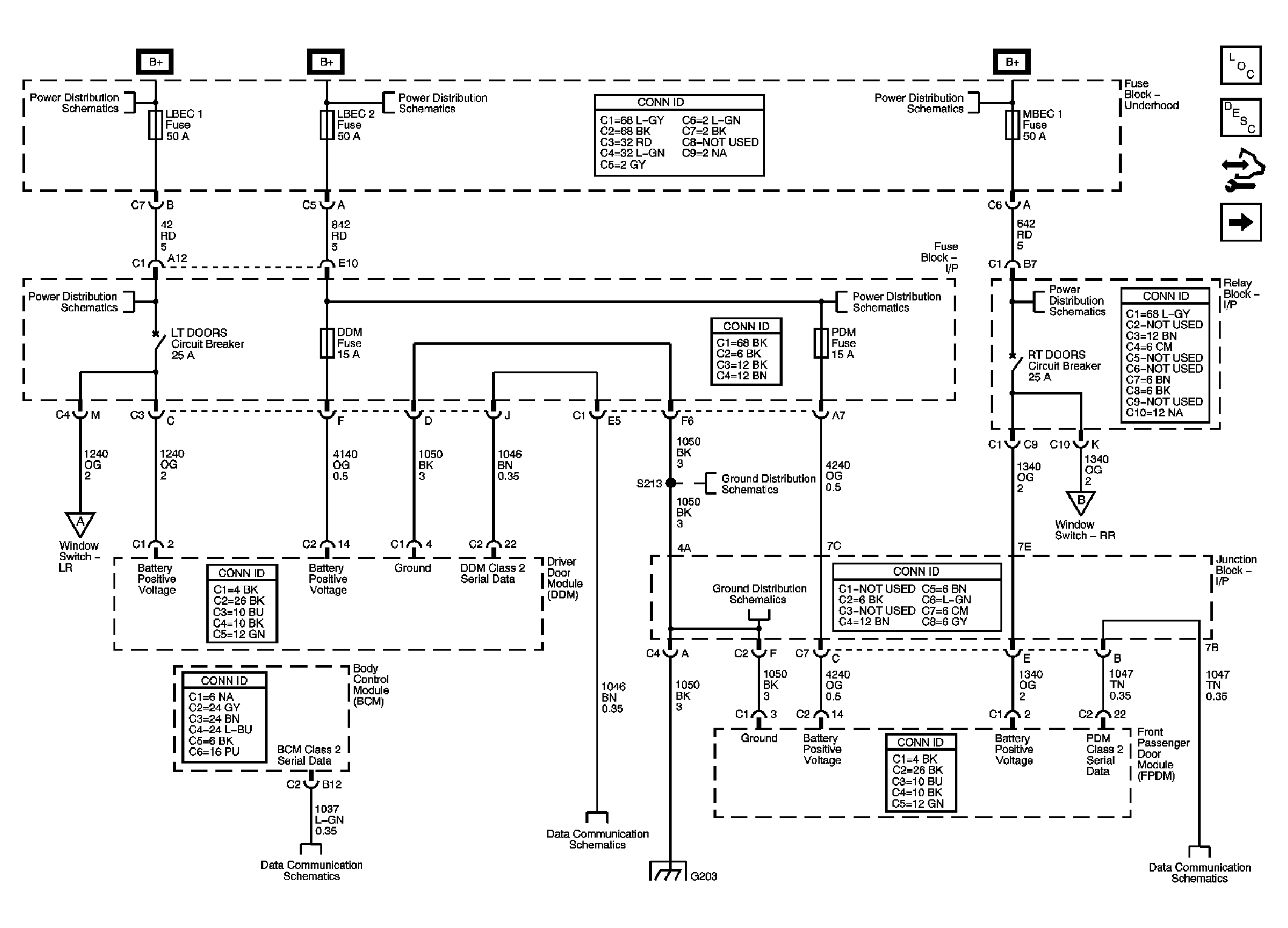

Fig 1: Power, Ground, and Serial Data Schematic
GM1805337Courtesy of GENERAL MOTORS CORP.

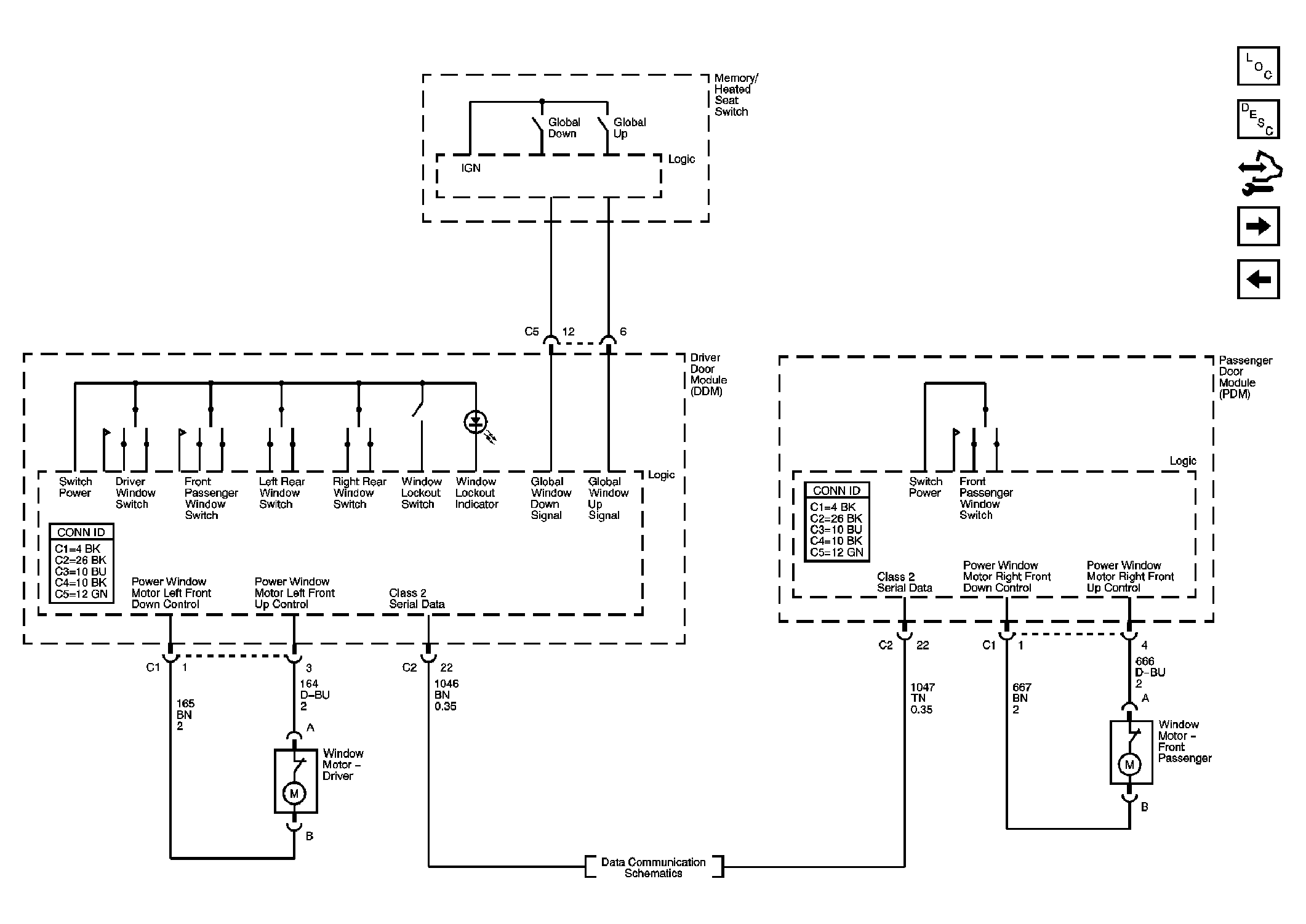

Fig 2: Front Door Window Schematic
GM1805341Courtesy of GENERAL MOTORS CORP.

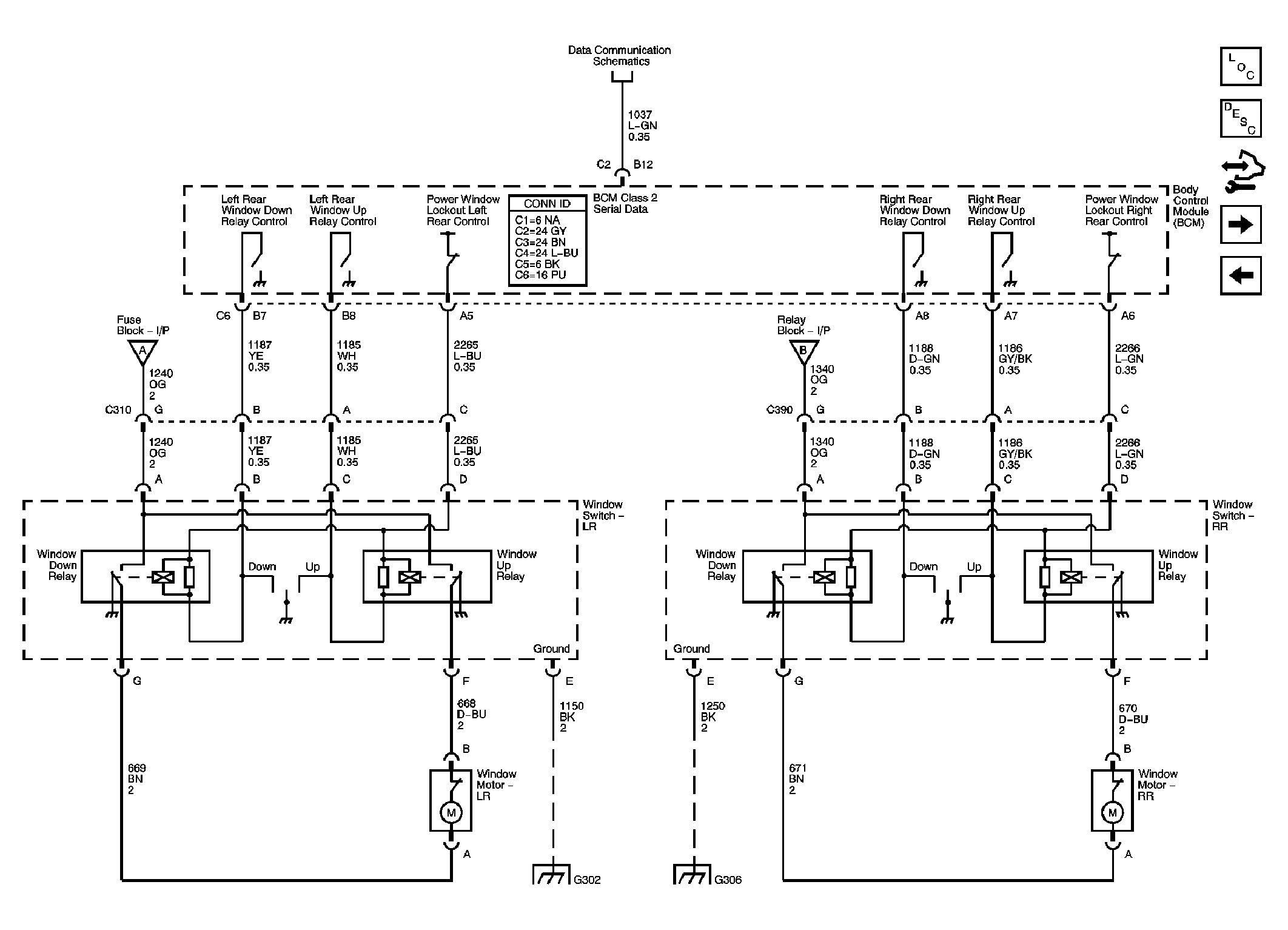

Fig 3: Rear Door Window Schematic
GM1805343Courtesy of GENERAL MOTORS CORP.

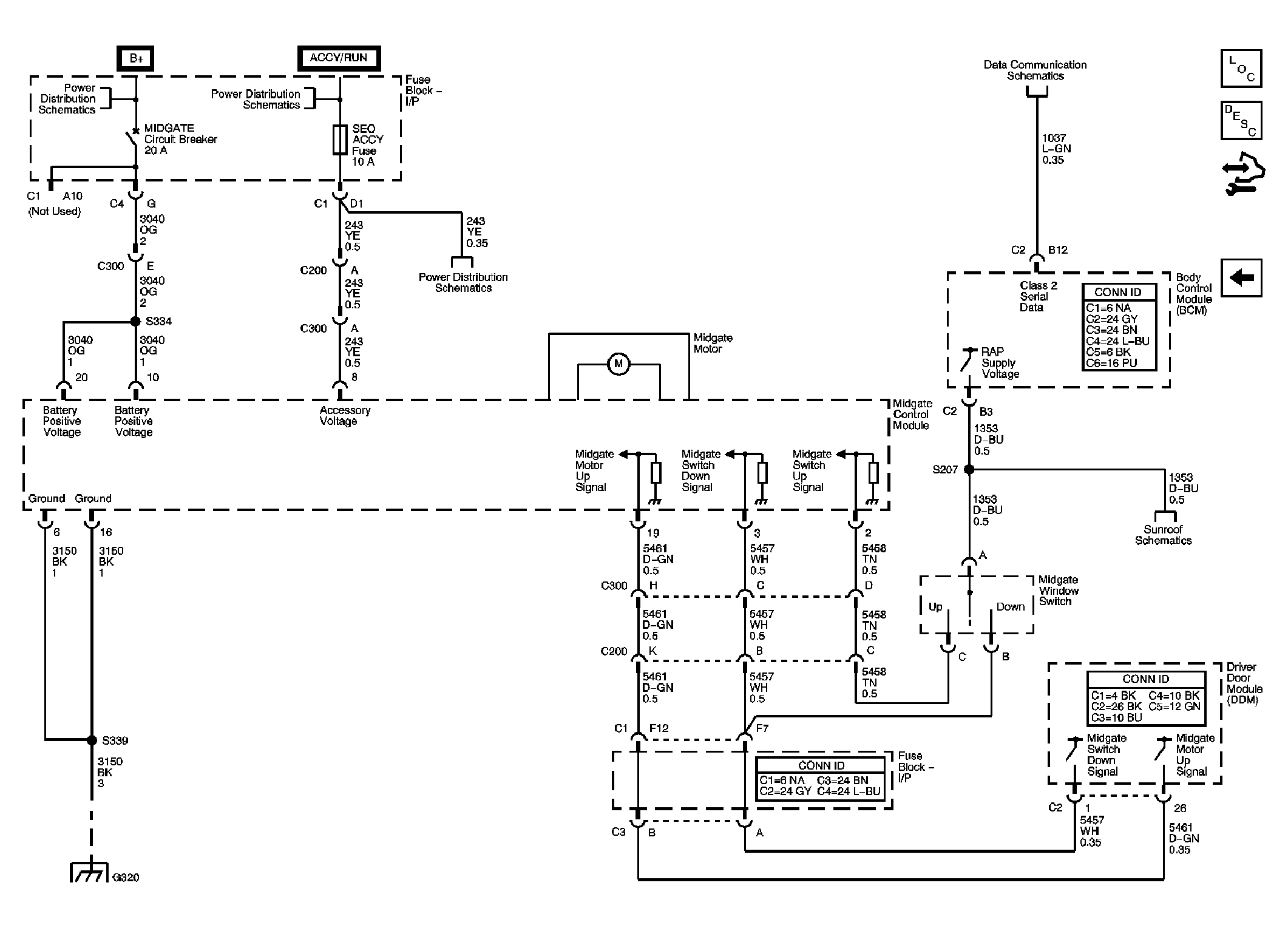

Fig 4: Midgate Window Schematic
GM1805347Courtesy of GENERAL MOTORS CORP.
