Removal Procedure

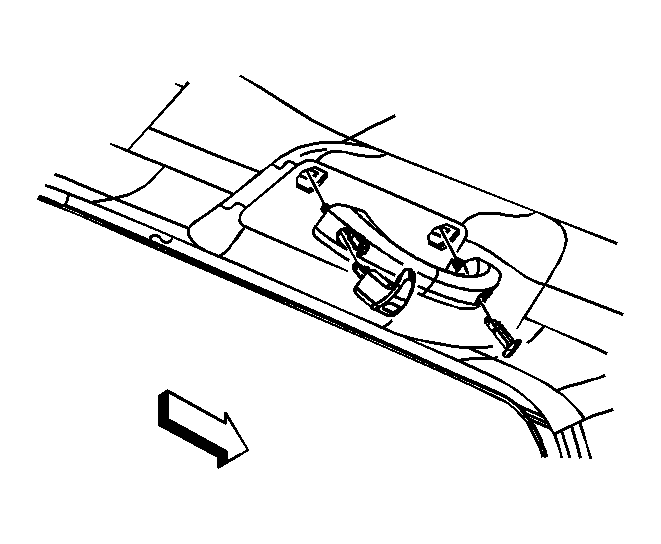

    Fig 1: Assist Handle & Rear Coat Hook Assembly
    GM867076Courtesy of GENERAL MOTORS CORP.
  1. Using a suitable flat bladed tool gently pry out the retaining tabs, and remove to disengage retaining clips.
  2. Pull on the assist handle away from the body in order to remove the assist handle from the body.
