Door Control Module Schematics

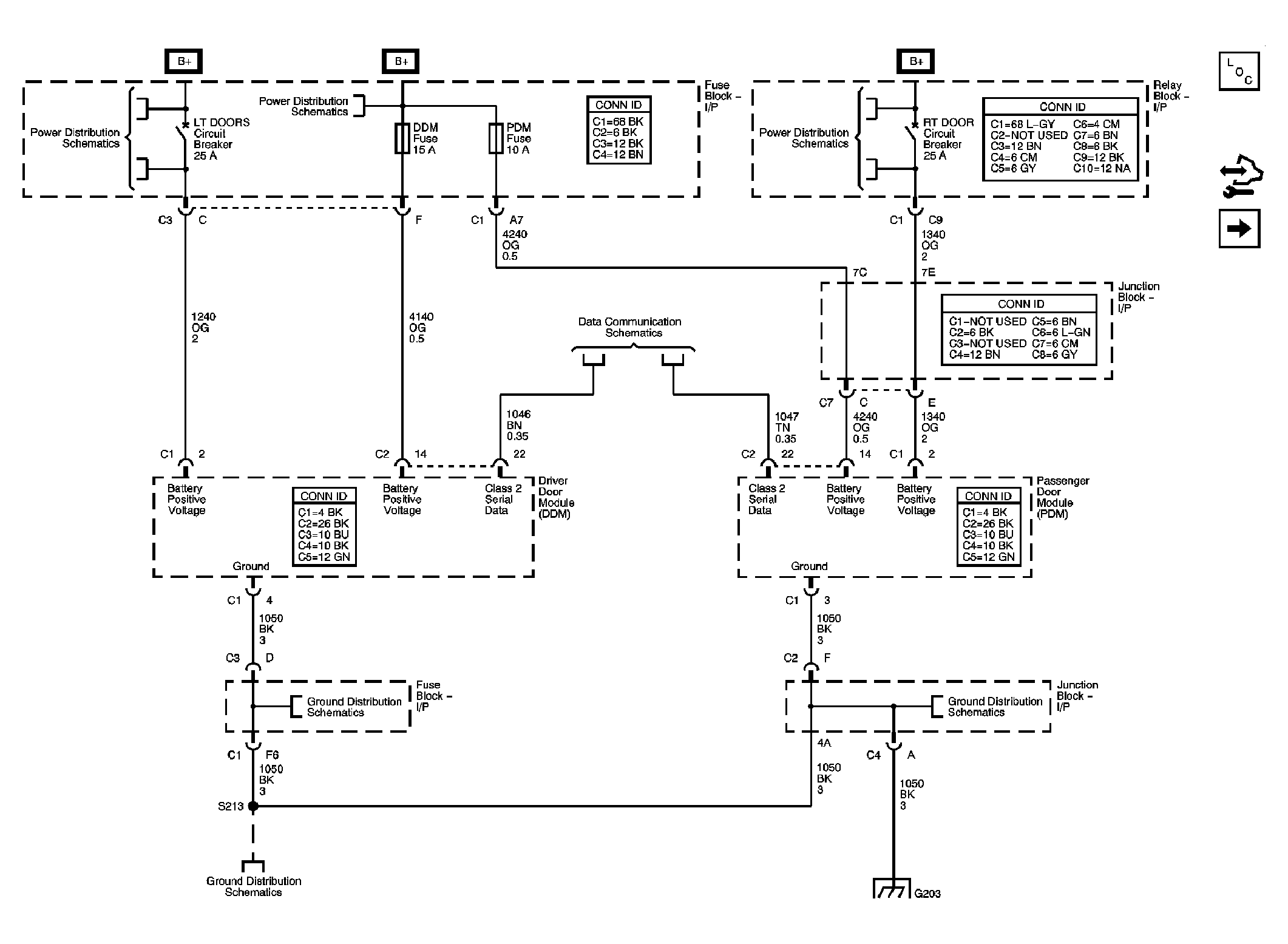

Fig 1: Power, Ground, and Serial Data Schematic
GM1805952Courtesy of GENERAL MOTORS CORP.

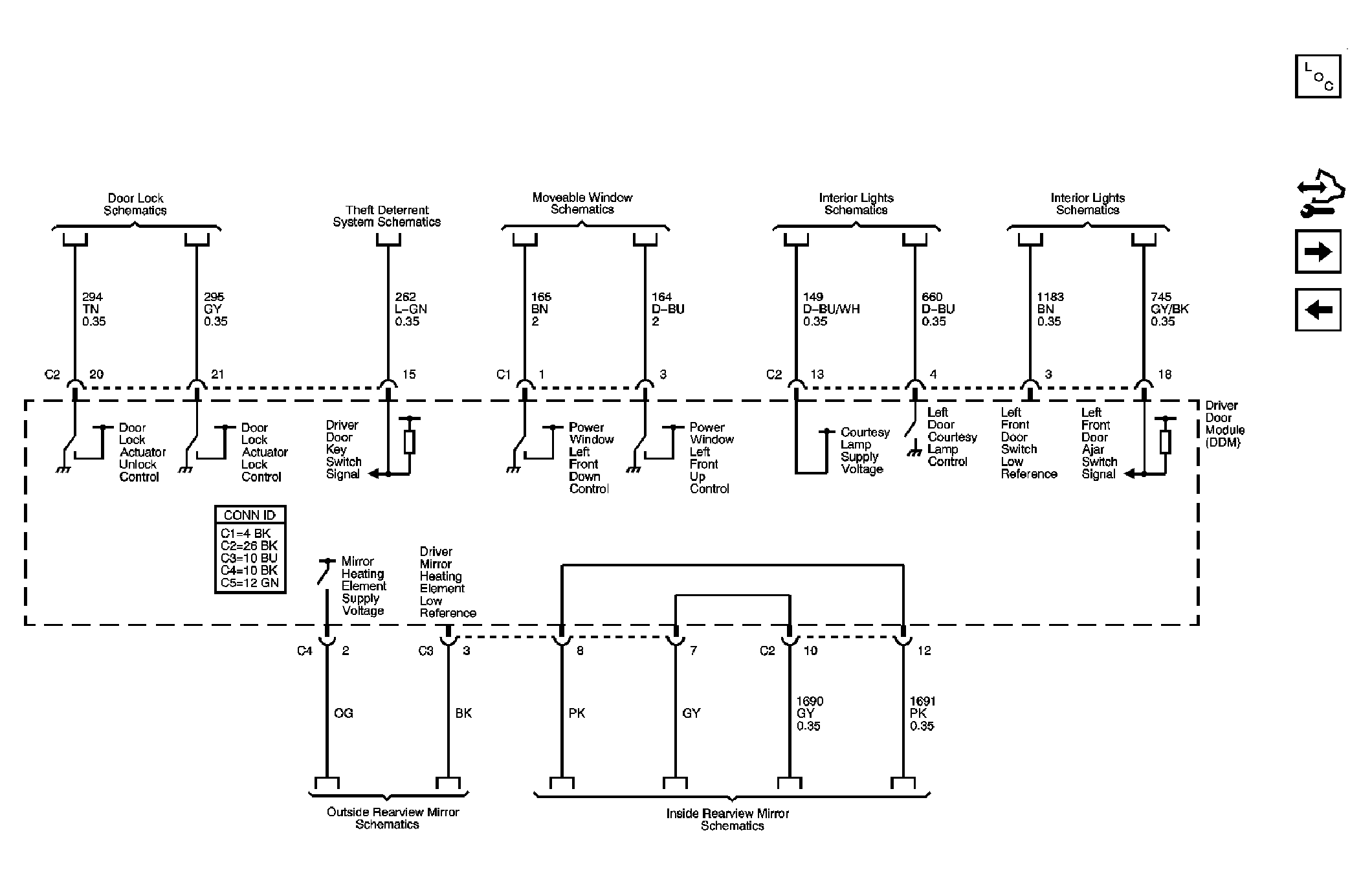

Fig 2: Driver Door Module References Schematic 1 of 2
GM1805956Courtesy of GENERAL MOTORS CORP.

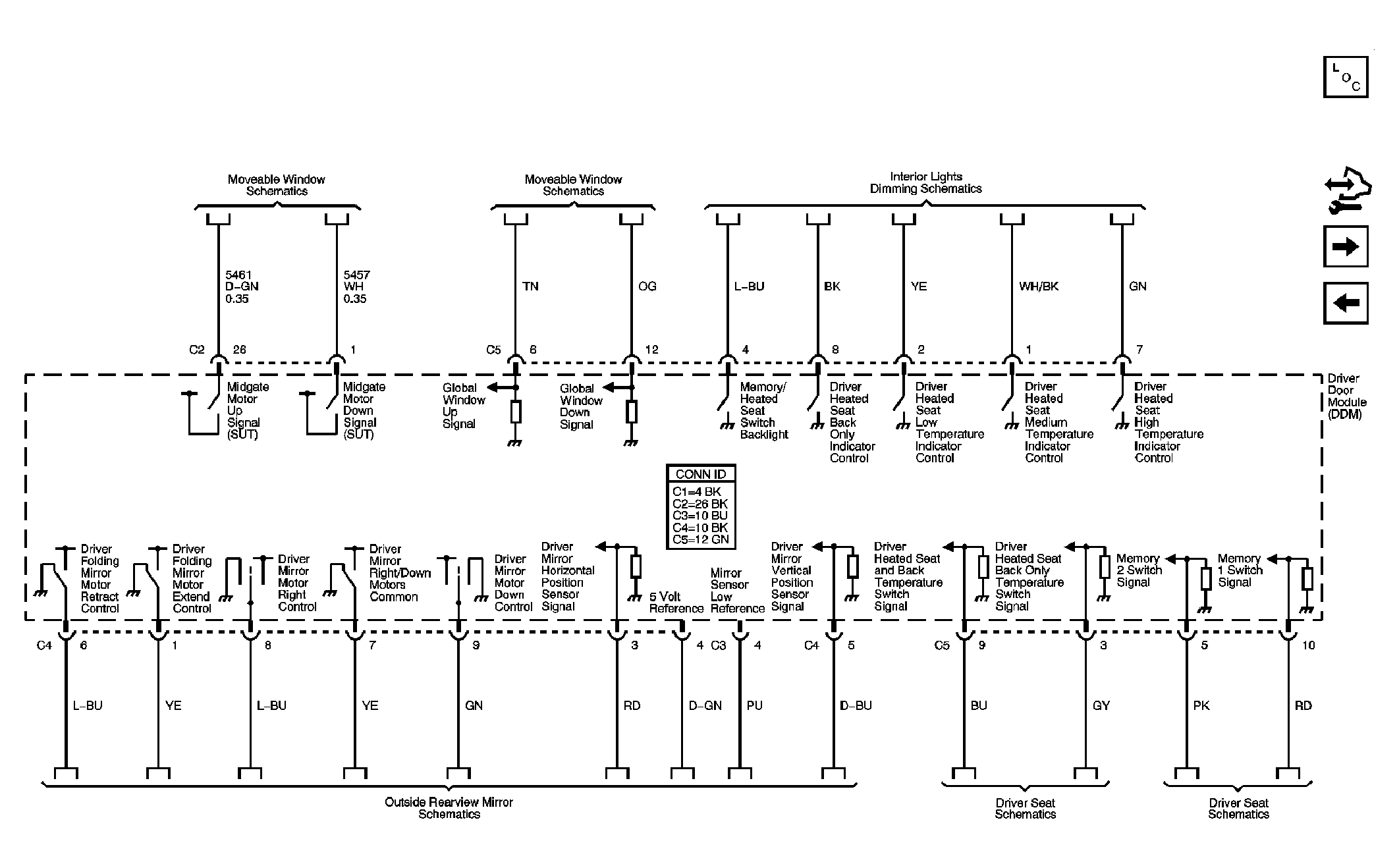

Fig 3: Driver Door Module References Schematic 2 of 2
GM1805958Courtesy of GENERAL MOTORS CORP.

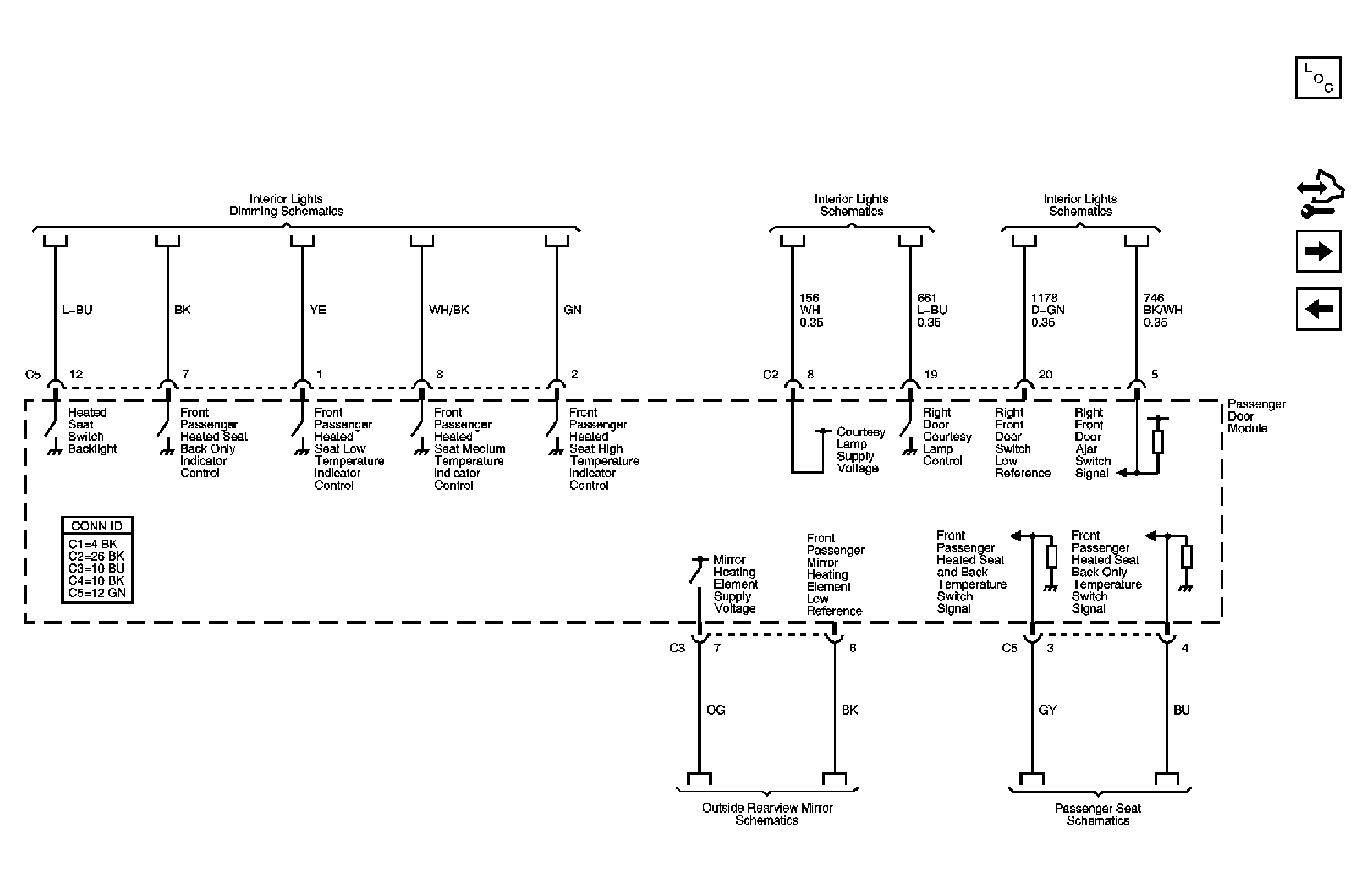

Fig 4: Passenger Door Module References Schematic 1 of 2
GM1805960Courtesy of GENERAL MOTORS CORP.

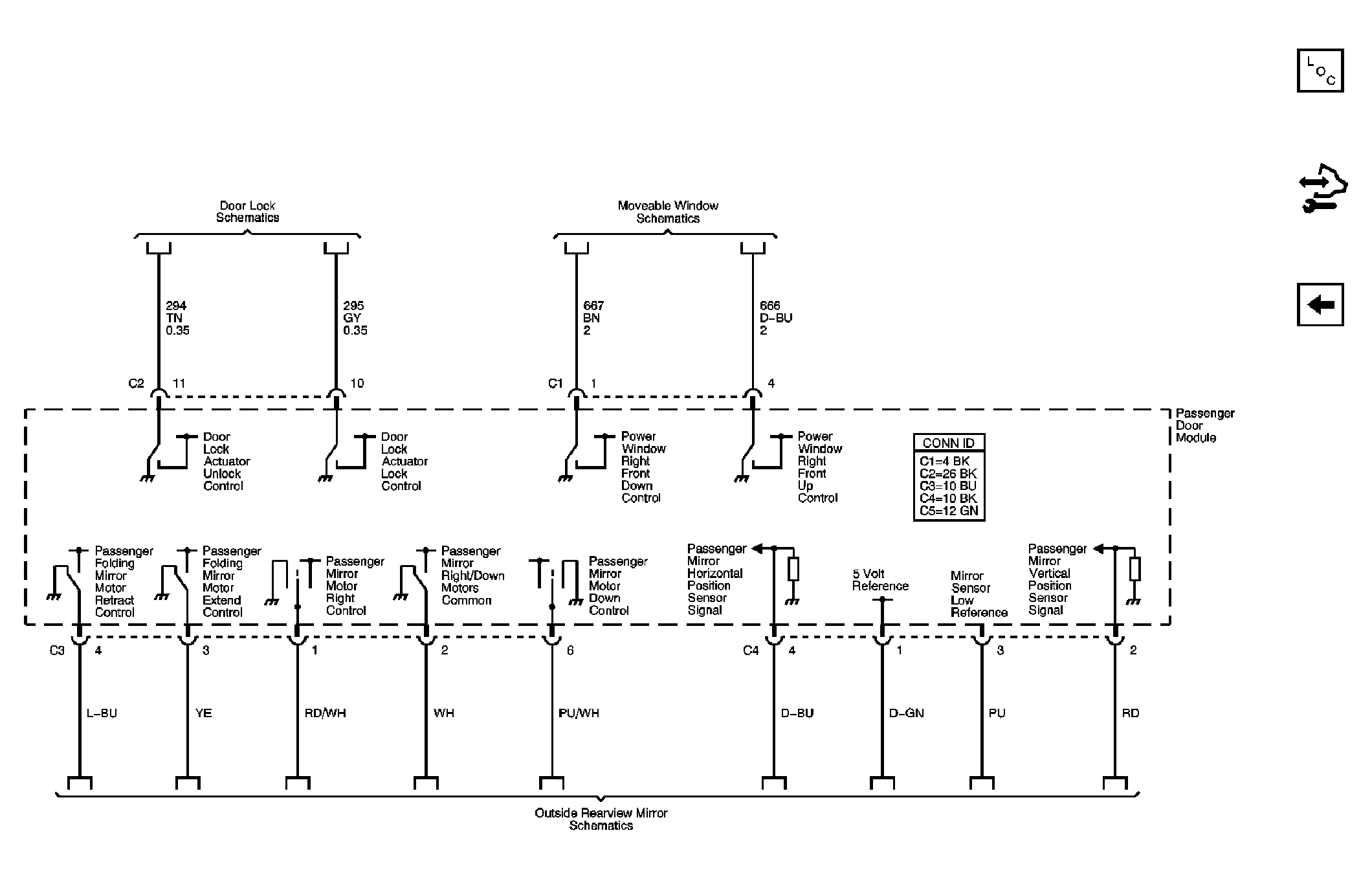

Fig 5: Passenger Door Module References Schematic 2 of 2
GM1805962Courtesy of GENERAL MOTORS CORP.
