Data Communication Component Views

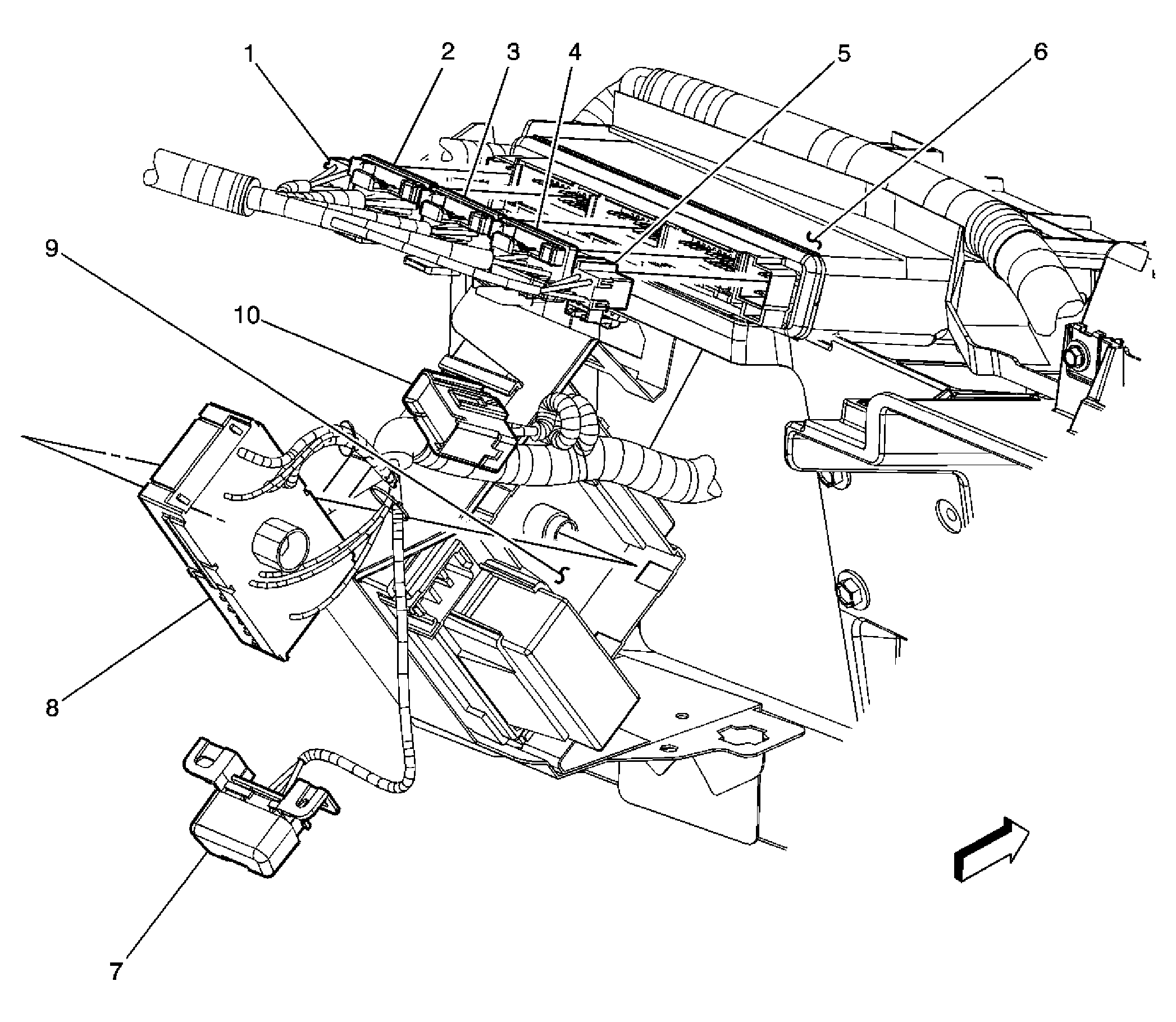

Fig 1: Left Side of I/P
GM1482831Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM) - C1
2 BCM - C2
3 BCM - C4
4 BCM- C3
5 BCM - C5
6 BCM
7 Data Link Connector (DLC)
8 Fuse Block - I/P - C1
9 Fuse Block - I/P
10 Splice Pack SP205
