Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

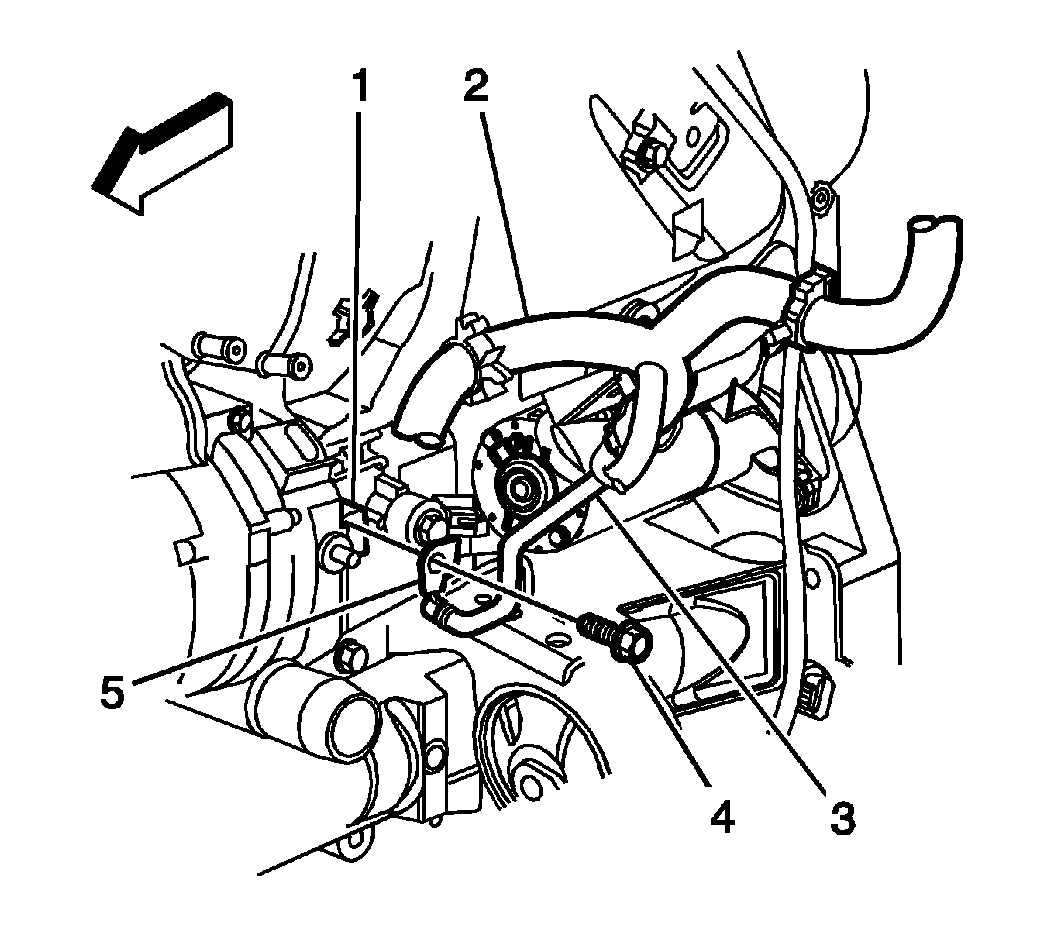

Fig 1: View Of Negative Battery Cable At Engine Block

Courtesy of GENERAL MOTORS CORP.

Insert the battery negative cable (3) into the battery cables harness conduit (2).
Close the battery cable harness retainer at the engine wiring harness bracket.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolt (4) securing the battery negative cable (3) to the engine block (1).
Tighten: Tighten the battery negative cable to engine block bolt to 35 N.m (26 lb ft).
Install the left wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front in Body Front End.
Lower the vehicle.

Fig 2: View Of Battery Tray, Battery Box & Battery Cable Harness Retainers

Courtesy of GENERAL MOTORS CORP.

Insert the battery negative cable into the upper portion of the battery cables harness conduit.
Close the battery cable harness retainer (4) at the battery tray (1).

Fig 3: View Of Battery Negative Cable, Battery Tray & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the bolt (3) securing the battery negative cable (1) to the battery tray (2).
Tighten: Tighten the battery negative cable to battery tray bolt to 9 N.m (80 lb in).
Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
