Installation Procedure

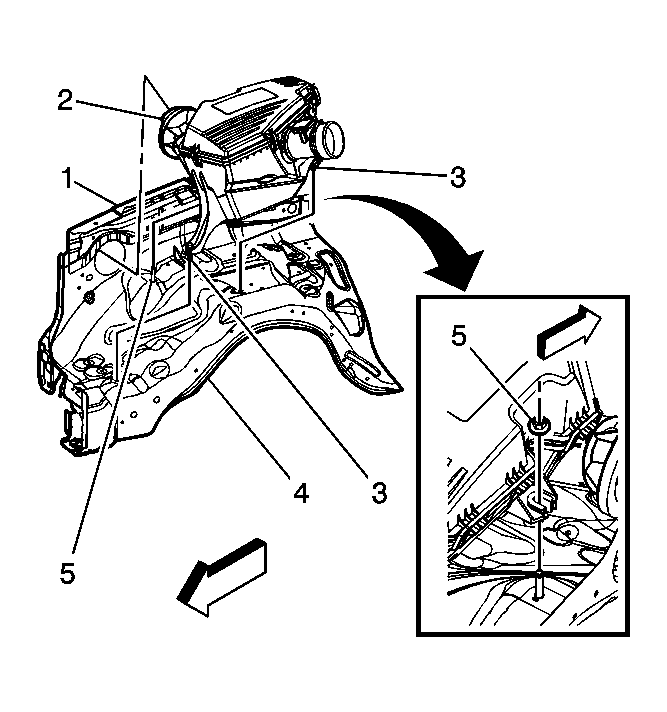

    Fig 1: View Of Air Cleaner Assembly
    GM1352017Courtesy of GENERAL MOTORS CORP.
  1. Position the air cleaner assembly into the engine compartment, inserting the snorkel (2) into the fender (1).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 2 bolts (3) and nut (5) securing the air cleaner assembly to the wheel house (4).

    Tighten:

    • Tighten the bolts to 10 N.m (89 lb in).
    • Tighten the nut to 15 N.m (11 lb ft).

  3. Connect the air cleaner outlet duct to the air cleaner assembly.

    Tighten:  Tighten the clamp to 6 N.m (53 lb in).

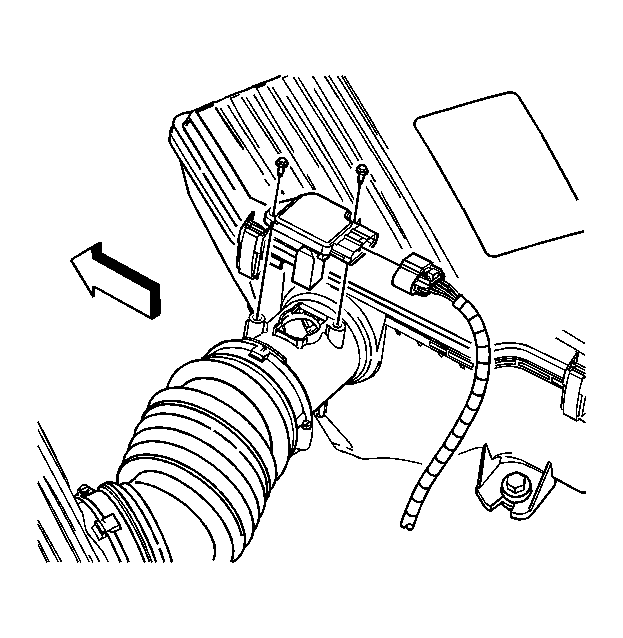

    4. Fig 2: View Of MAF/IAT Sensor
    GM1352006Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector to the MAF/IAT sensor.
