Installation Procedure

Fig 1: Starter Wiring (2 of 2)

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolt (5) securing the negative battery cable ground terminal (4) to the engine block.
Tighten: Tighten the bolt to 35 N.m (26 lb ft).

Fig 2: Starter Wiring (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Install the positive battery cable terminal (2) to the starter and the starter terminal nut (1).
Install the left wheelhouse liner. Refer to Wheelhouse Panel Replacement .

Fig 3: Harness Clips

Courtesy of GENERAL MOTORS CORP.

Fig 4: Nuts Securing The Battery Cables To Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

Tighten the nuts (1) securing the battery cables to the underhood fuse block.
Tighten: Tighten the nuts to 9 N.m (80 lb in).
Install the underhood fuse block cover to the underhood fuse block, engaging the locking tabs.

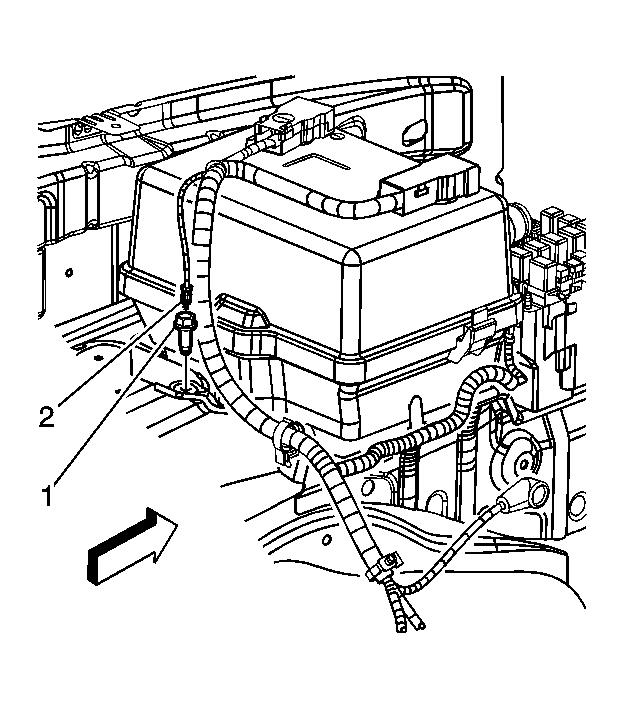

Fig 5: Bolt Securing Negative Battery Cable Ground To Battery Tray

Courtesy of GENERAL MOTORS CORP.

Install the bolt (1) securing the negative battery cable ground (2) to the battery tray.
Tighten: Tighten the bolt to 9 N.m (80 lb in).

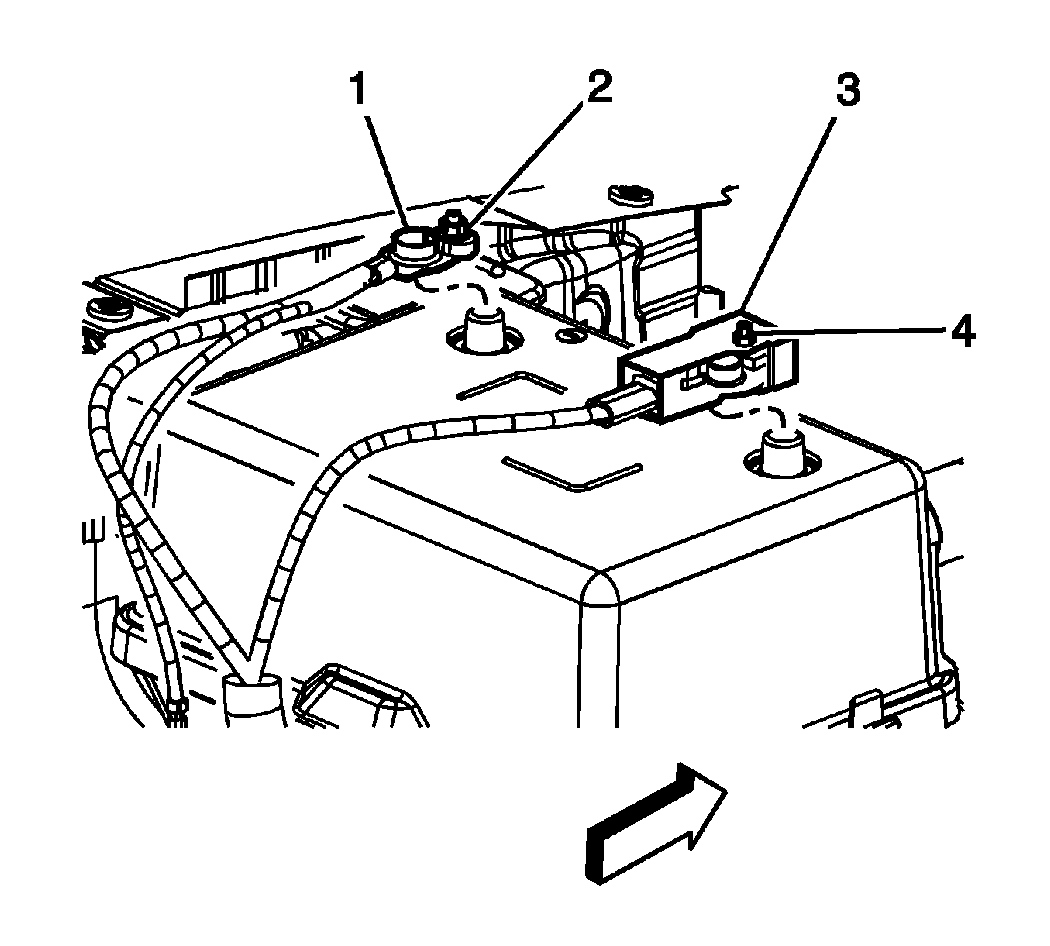

Fig 6: View Of Battery Cables

Courtesy of GENERAL MOTORS CORP.

Install the positive battery cable (4) to the battery.
Tighten the positive battery cable nut (3).
Tighten: Tighten the nut to 9 N.m (80 lb in).
Close the protective cover to access the positive battery cable terminal.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
