Lock Cylinder Replacement - Door

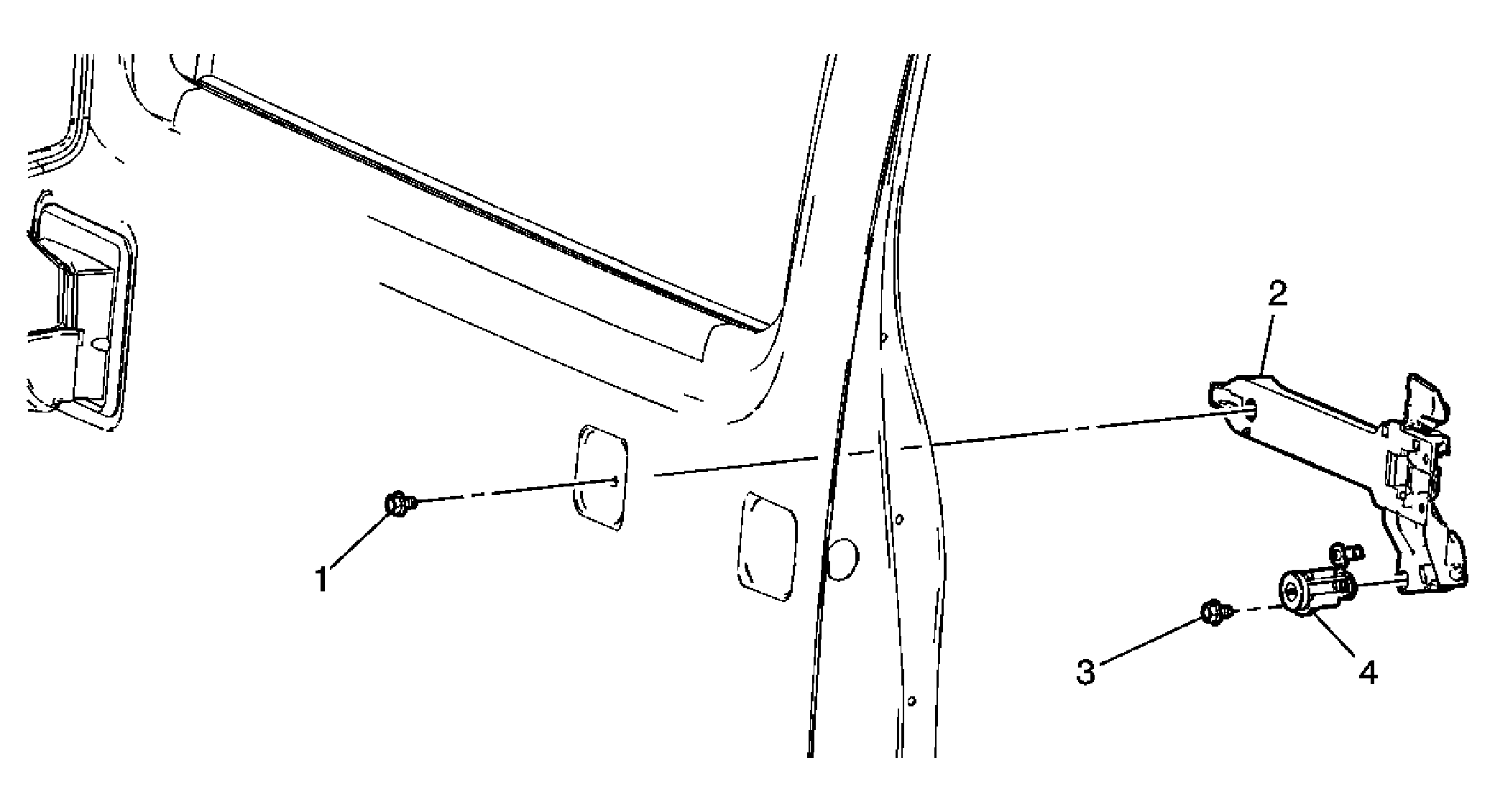

Fig 1: Lock Cylinder Replacement - Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door . Remove the water deflector. Refer to Water Deflector Replacement - Front Door . Remove the outside door handle. Refer to Door Handle Replacement - Front Outside .
1	Bolt, Front Side Door Lock Housing Tighten: 7 N.m (62 lb in)
2	Housing, Front Door Handle Tip: Disconnect the lock and handle rods to remove the housing.
3	Bolt, Front Side Door Lock Cylinder Tighten: 7 N.m (62 lb in)
4	Lock Cylinder, Front Side Door
