Seat Back Replacement - Rear
Seat Back Replacement - Rear

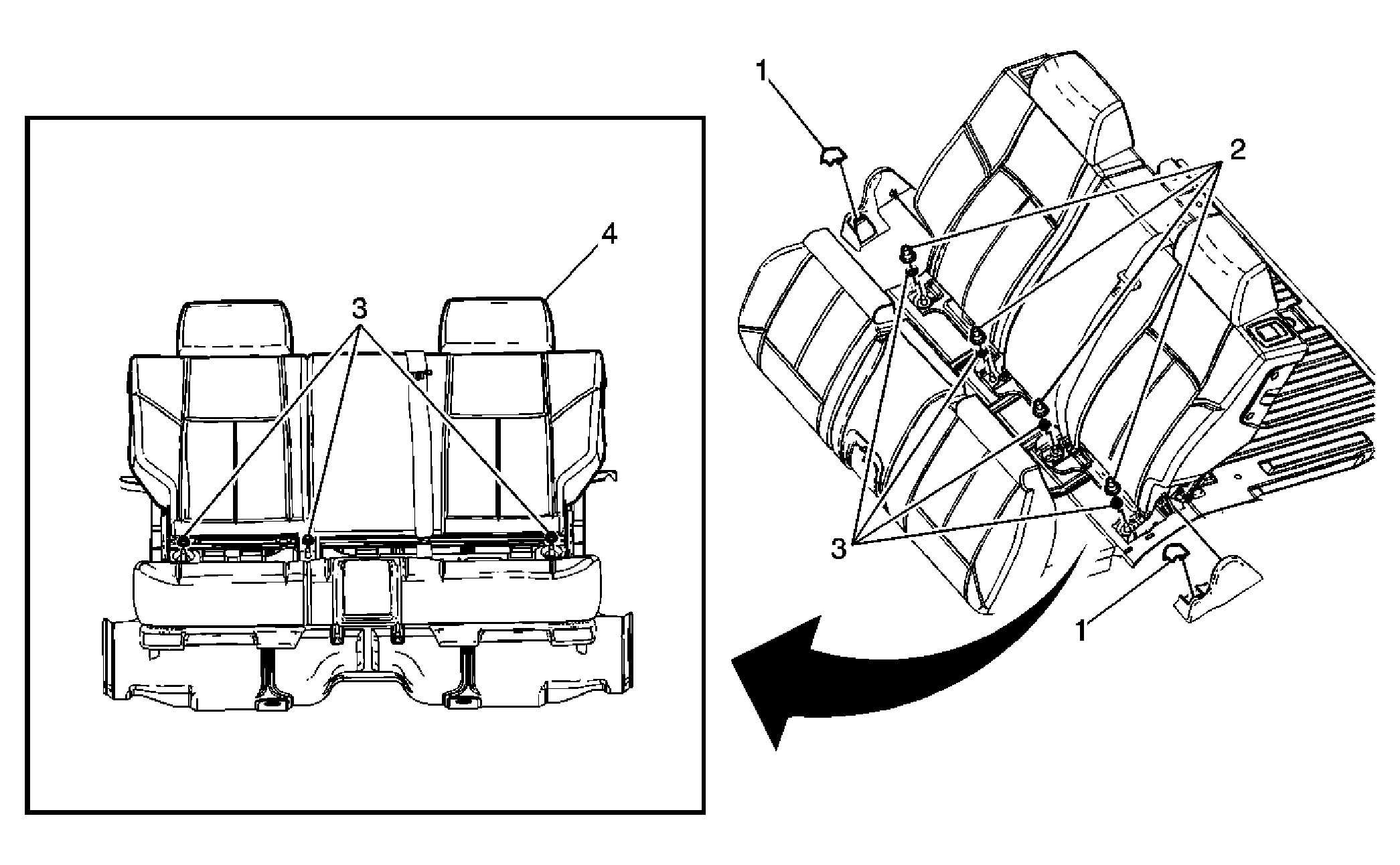

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Cap, Rear Seat Hinge Finish Cover (Qty: 2) |
| 2 | Cap, Rear Seat Back Stud Finish Cover (Qty: 7) |
| 3 | Nut, Rear Seat Back Cushion (Qty: 7) Tighten: 55 N.m (41 lb ft) |
| 4 | Cushion Assembly, Rear Seat Back |
