OnStar Microphone Replacement

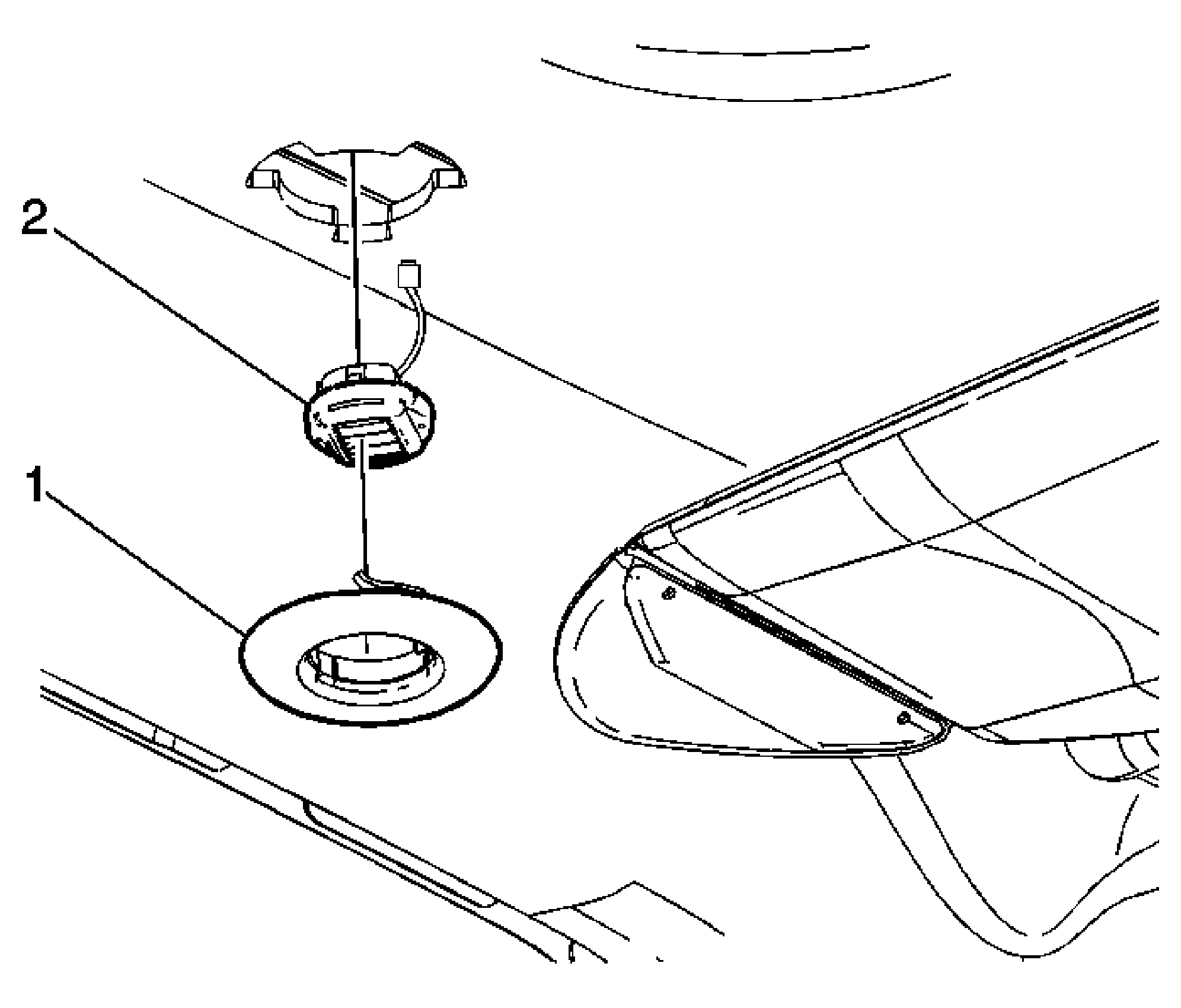

Fig 1: OnStar Microphone

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Bezel, Mobile Telephone Microphone Tip: Partially lower headliner to access microphone electrical connector. Refer to Headliner Replacement .
2	Microphone Assembly, Mobile Telephone
