Windshield Wiper Motor

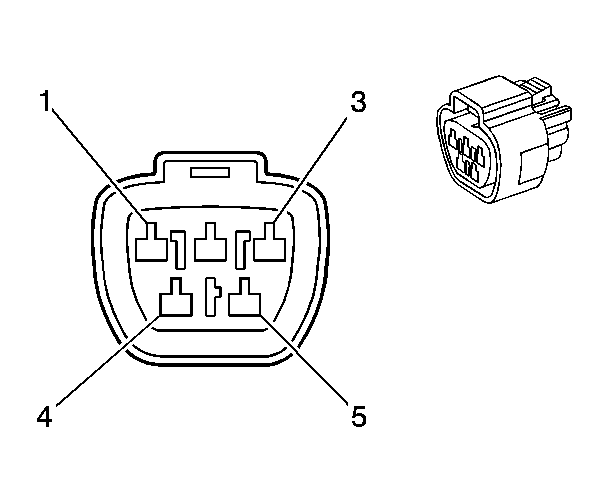

Fig 1: Windshield Wiper Motor Connector End Views
GM1567053Courtesy of GENERAL MOTORS CORP.
Windshield Wiper Motor Connector Part Information

Connector Part Information
  • OEM: 6189-0504
  • Service: See Catalog
  • Description: 5-Way F 090 TS (GY)
Terminal Part Information
  • Pins:
  • Terminal: 8100-0460/6
  • Core/Insulation Crimp:
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Windshield Wiper Motor Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 YE 196 Windshield Wiper Motor Park Switch Signal
2 - - Not Used
3 PU 92 Windshield Wiper Motor High Speed Control
4 BK 850 Ground
5 D-GN 95 Windshield Wiper Motor Low Speed Control
