Ignition and Start Switch Replacement Document

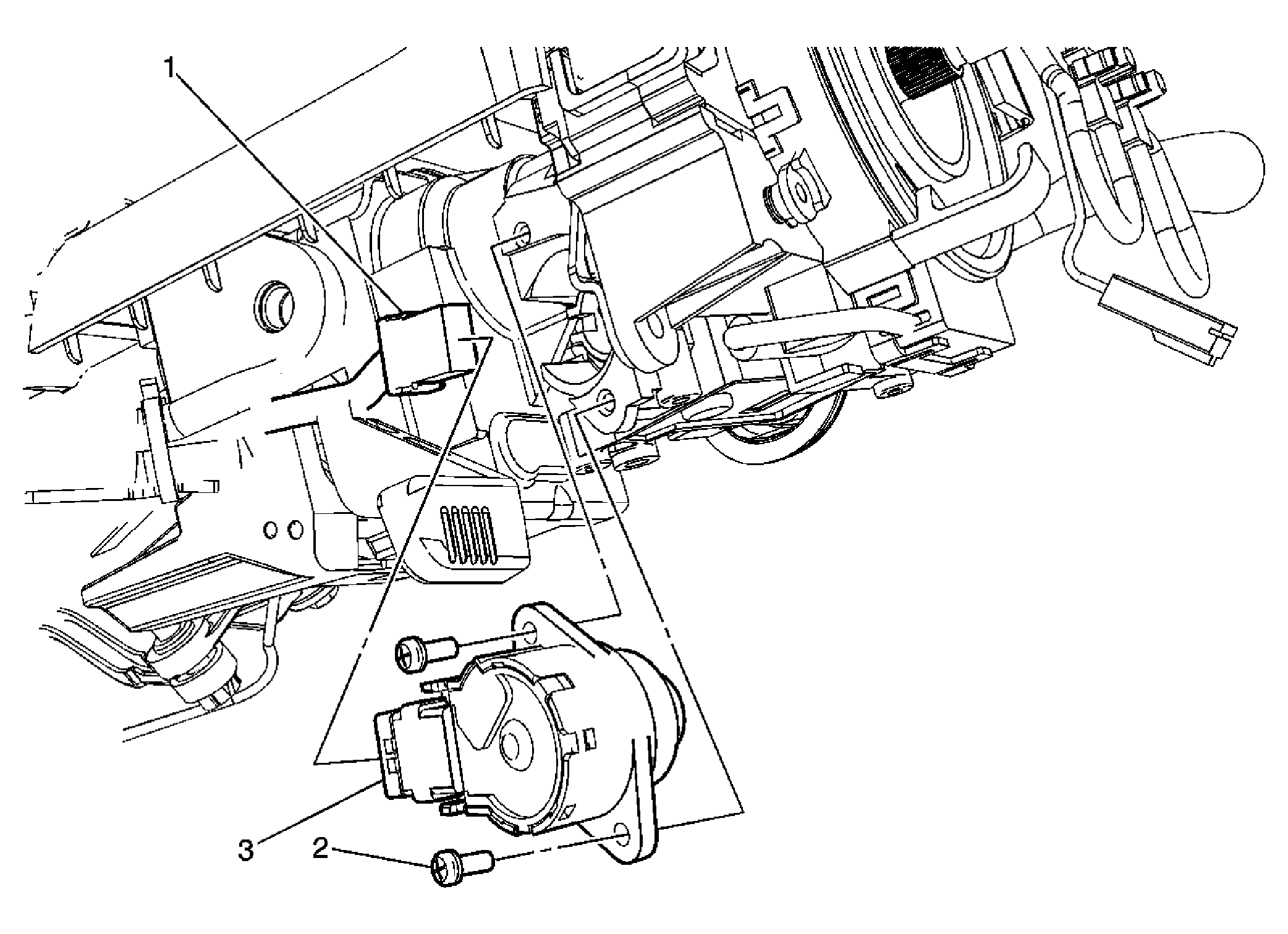

Fig 1: Ignition and Start Switch Replacement

Courtesy of GENERAL MOTORS CORP.

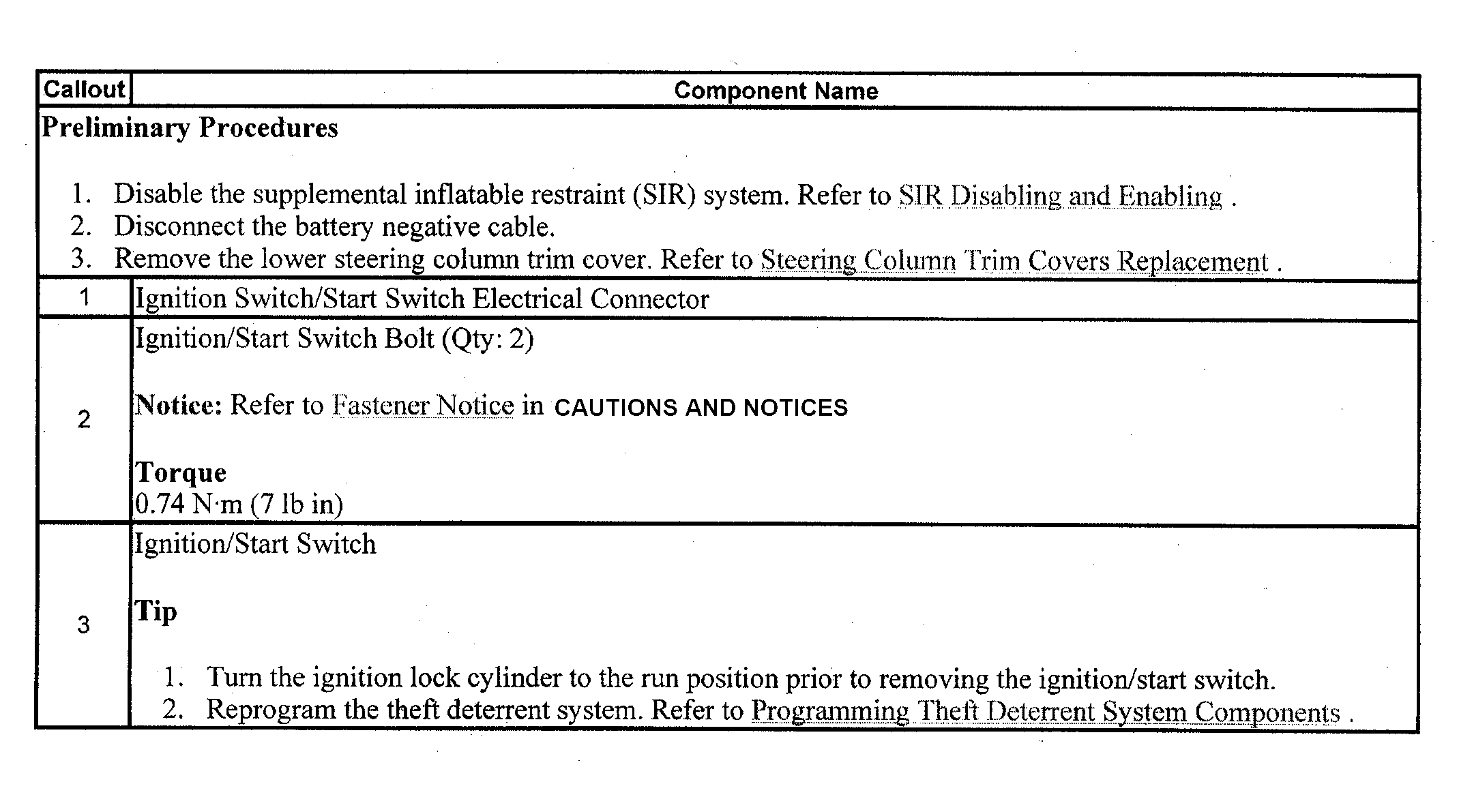

Fig 2: Callouts And Preliminary Procedures For Fig 1

Courtesy of GENERAL MOTORS CORP.
