Disabling Procedure

    IMPORTANT: Refer to SIR Disabling and Enabling Zones  before disabling the SIR system.
  1. Turn the steering wheel until the vehicles wheels are pointing straight ahead.
  2. Turn OFF the ignition.
  3. Remove the key from the ignition.

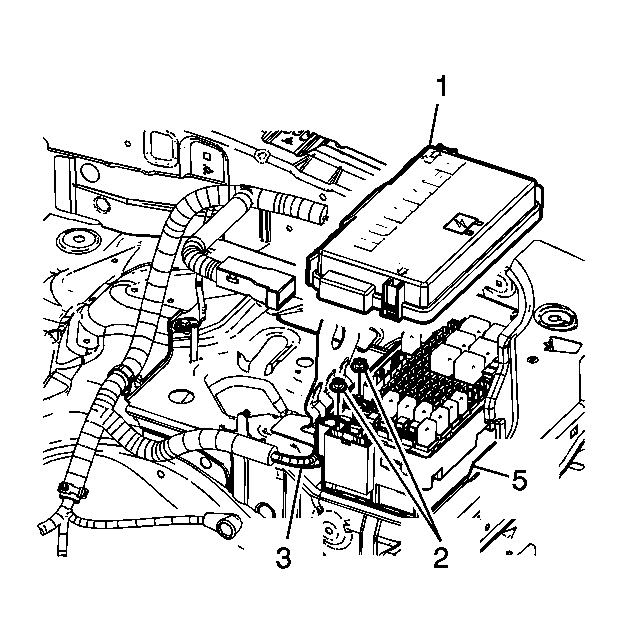

    4. Fig 1: Locating Underhood Fuse Block
    GM1591712Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: With the Air Bags fuse removed and the ignition ON, the AIR BAG indicator illuminates. This is normal operation and does not indicate an SIR system malfunction.
  4. Remove the Air Bags fuse from the fuse block (5) located in the underhood fuse block.
  5. Remove the left door trim panel. Refer to Trim Panel Replacement - Side Front Door .
    6. Fig 2: View Of Connector Position Assurance (CPA) & Side Impact Sensor Yellow 2-Way Connector
    GM612189Courtesy of GENERAL MOTORS CORP.
  6. Remove the connector position assurance (CPA) (3) from the side impact sensor yellow 2-way connector (5) located near the middle of the door.
  7. Disconnect the side impact sensor yellow 2-way connector (5) located near the middle of the door.
    8. Fig 3: View Of Seat Belt Retractor/Pretensioner Assembly
    GM1276832Courtesy of GENERAL MOTORS CORP.
  8. Remove the trim panel. Refer to Trim Panel Replacement - Lower Center Pillar .
  9. Remove the connector positive assurance (CPA) from the seat belt pretensioner-right connector.
  10. Disconnect the seat belt pretensioner-right connector from the vehicle harness connector.
  11. Remove the garnish molding. Refer to Garnish Molding Replacement - Windshield Pillar .
    12. Fig 4: View Of Roof Rail Module Connector
    GM1276857Courtesy of GENERAL MOTORS CORP.
  12. Disconnect the roof rail module connector (1) from the vehicle harness.
