Inflatable Restraint Roof Rail Module Replacement - Front

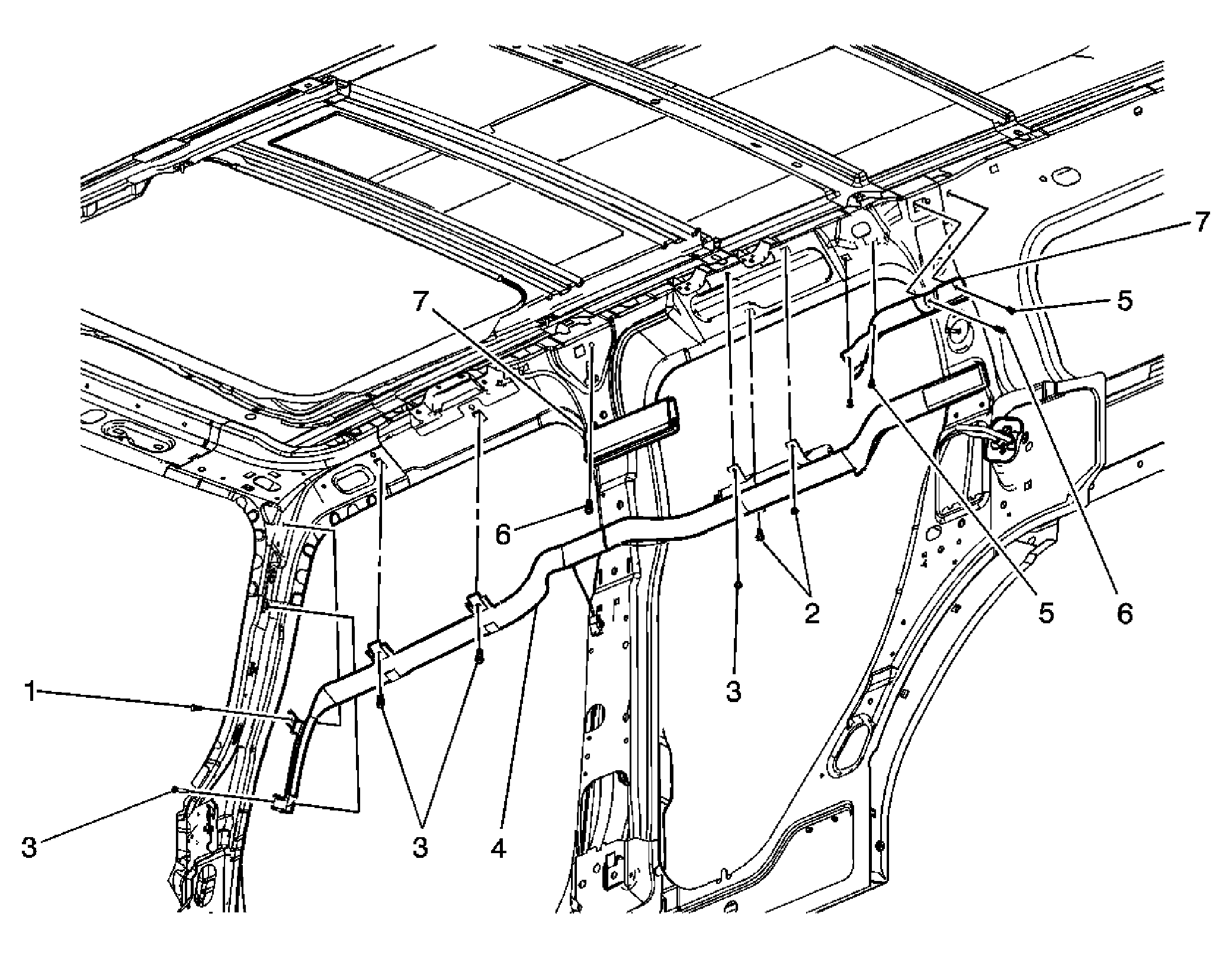

Fig 1: Inflatable Restraint Roof Rail Module Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Caution . CAUTION: When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to SIR Disabling and Enabling Zones. Failure to observe the correct procedure could cause deployment of the SIR components, personal injury, or unnecessary SIR system repairs. CAUTION: Do not strike or jolt the inflatable restraint side impact sensor (SIS). Before applying power to the SIS make sure that it is securely fastened. Failure to observe the correct installation procedures could cause SIR deployment, personal injury, or unnecessary SIR system repairs. NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR. Refer to SIR Disabling and Enabling Zone 2 or SIR Disabling and Enabling Zone 6 . Remove the windshield garnish molding. Refer to Garnish Molding Replacement - Windshield Pillar . Remove the upper center pillar trim panel. Refer to Trim Panel Replacement - Upper Center Pillar . Remove the rear body side upper garnish molding. Refer to Garnish Molding Replacement - Body Side Rear Upper . Ensure the roof rail inflator has been fully deployed before disposal. Refer to Inflator Module Handling and Scrapping .
1	Retainer, Inflatable Restraint Roof Rail Module
2	Screw, Inflatable Restraint Roof Side Rail Module Assembly (Qty: 2) Tighten: 2 N.m (18 lb in)
3	Bolt, Inflatable Restraint Roof Side Rail Module Assembly (Qty: 4) Tighten: 8 N.m (71 lb in)
4	Module Assembly, Inflatable Restraint Roof Side Rail
5	Screw, Inflatable Restraint Roof Side Rail Module Assembly (Qty: 3) Tighten: 2 N.m (18 lb in)
6	Bolt, Inflatable Restraint Roof Side Rail Module Assembly (Qty: 2) Tighten: 8 N.m (71 lb in)
7	Bracket, Inflatable Restraint Roof Side Rail Module Assembly
