Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

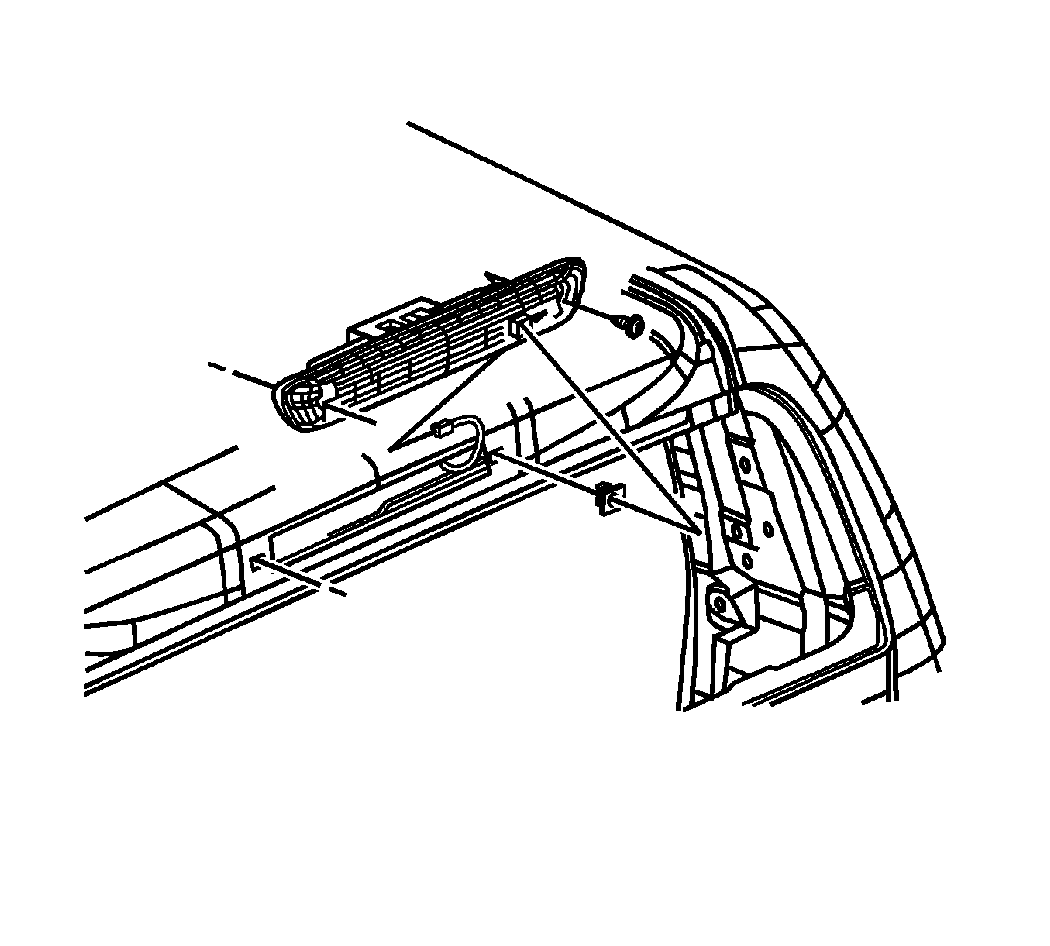

Fig 1: View Of High Mounted Stop Lamp

Courtesy of GENERAL MOTORS CORP.

Install the bulbs into the lamp sockets.
Install the lamp sockets into the high mounted stop lamp and twist clockwise to secure.
Install the high mount stop lamp to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the screws that retain the high mounted stop lamp to the vehicle.
Tighten: Tighten the screws to 2.5 N.m (22 lb in).
