H3 Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Doors
>>
Schematic and Routing Diagrams
>>
Power Window Schematics
Power Window Schematics

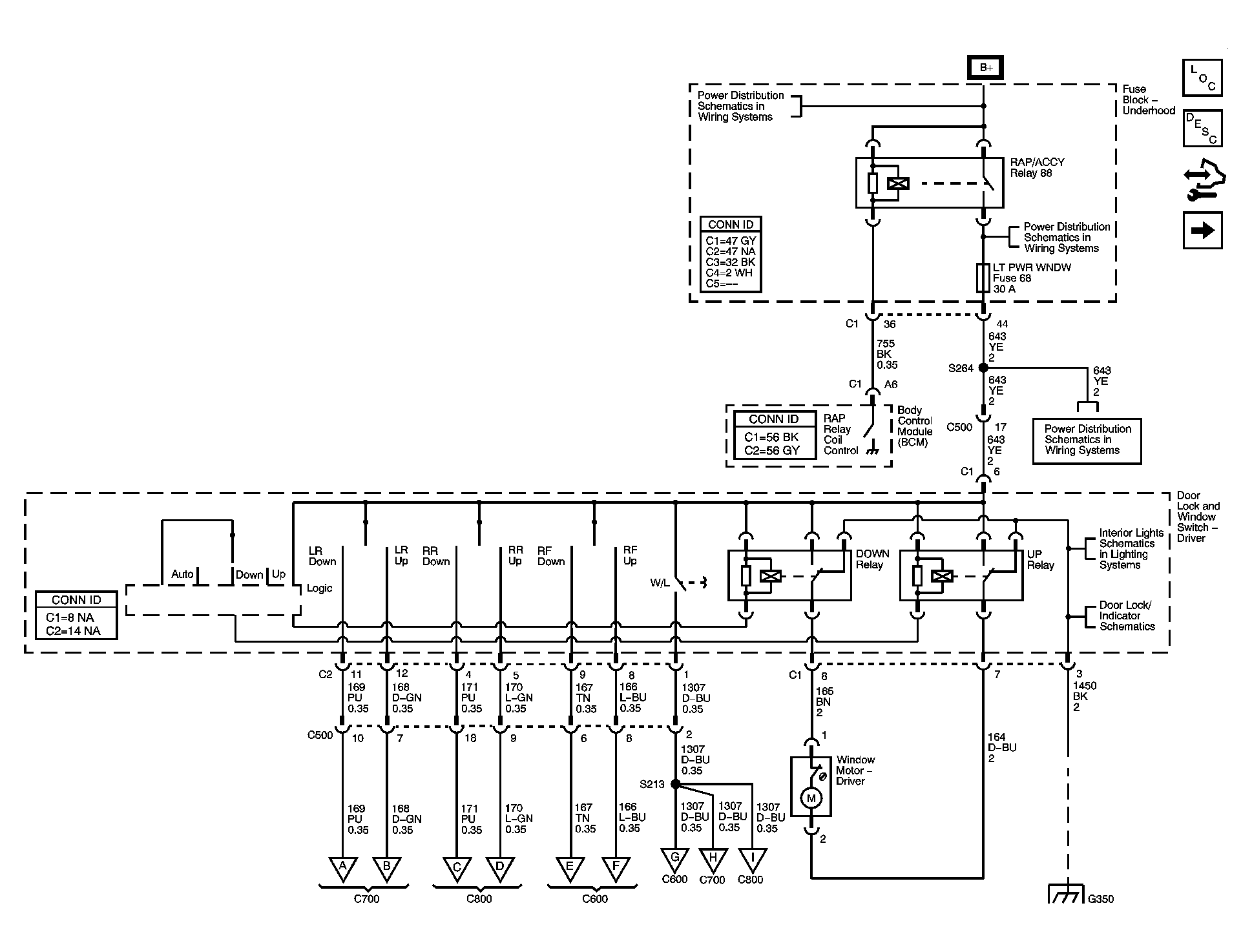

Fig 1: Driver Door
Courtesy of GENERAL MOTORS CORP.

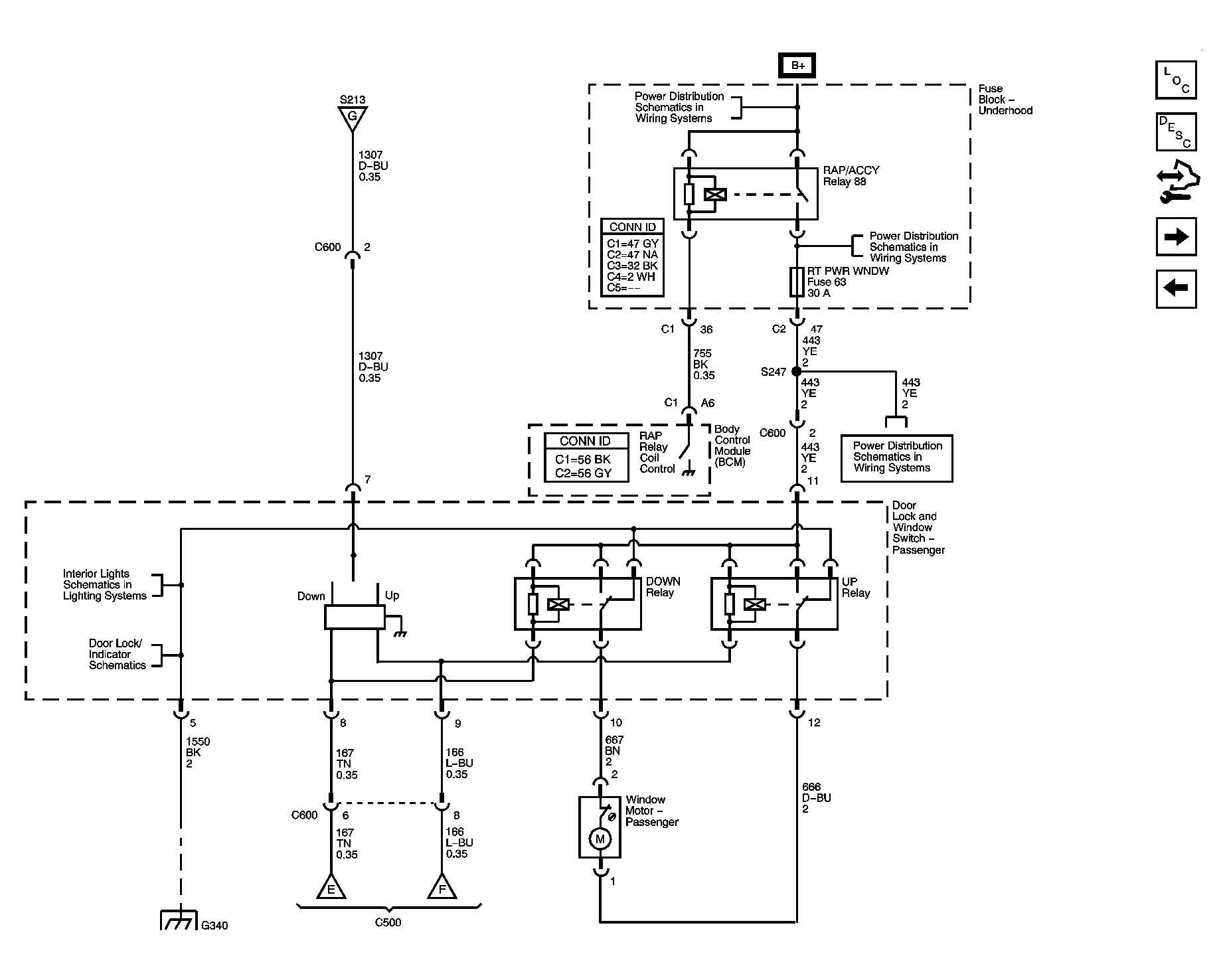

Fig 2: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.

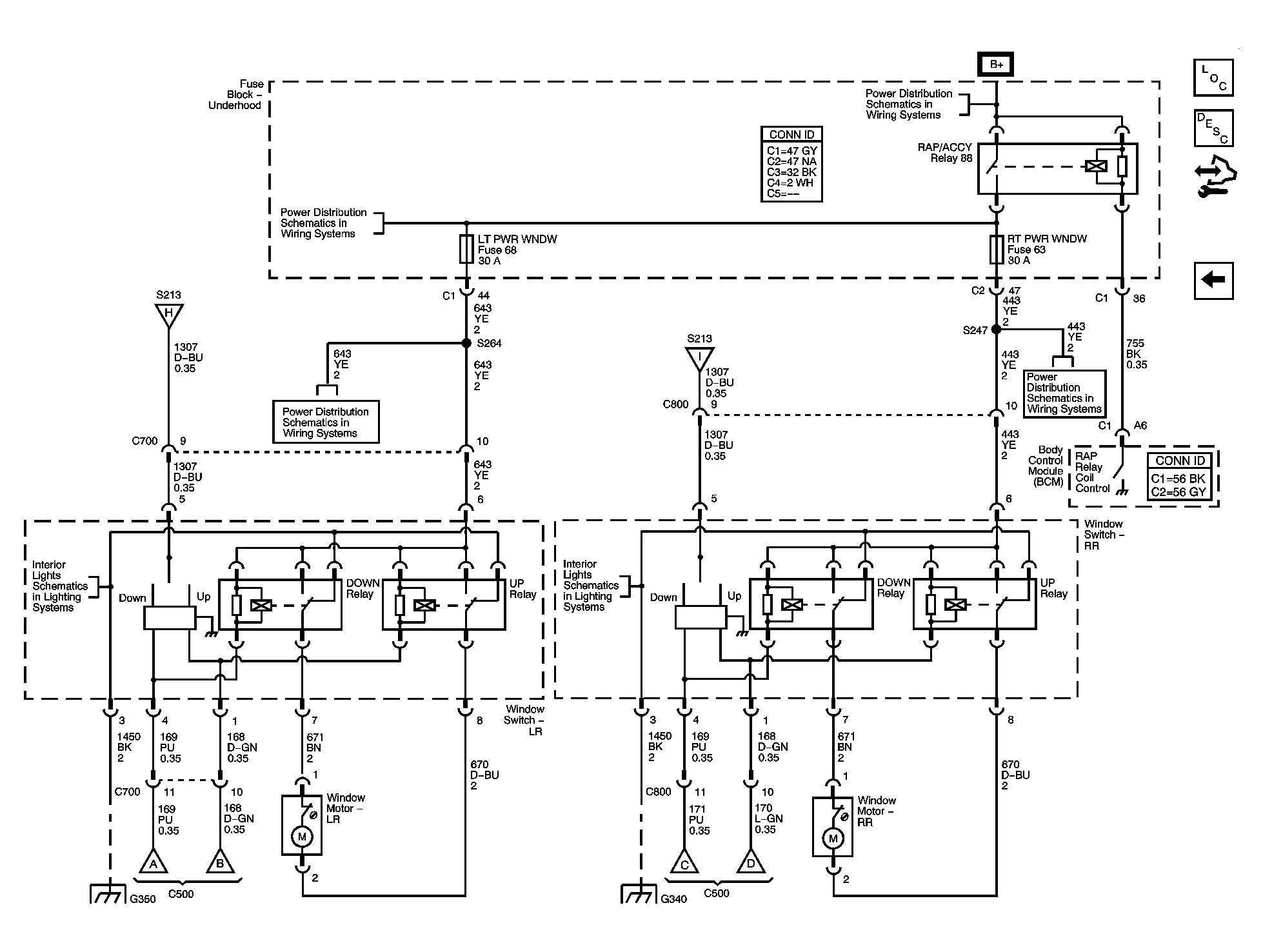

Fig 3: Rear Doors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
