H3 Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Doors
>>
Schematic and Routing Diagrams
>>
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

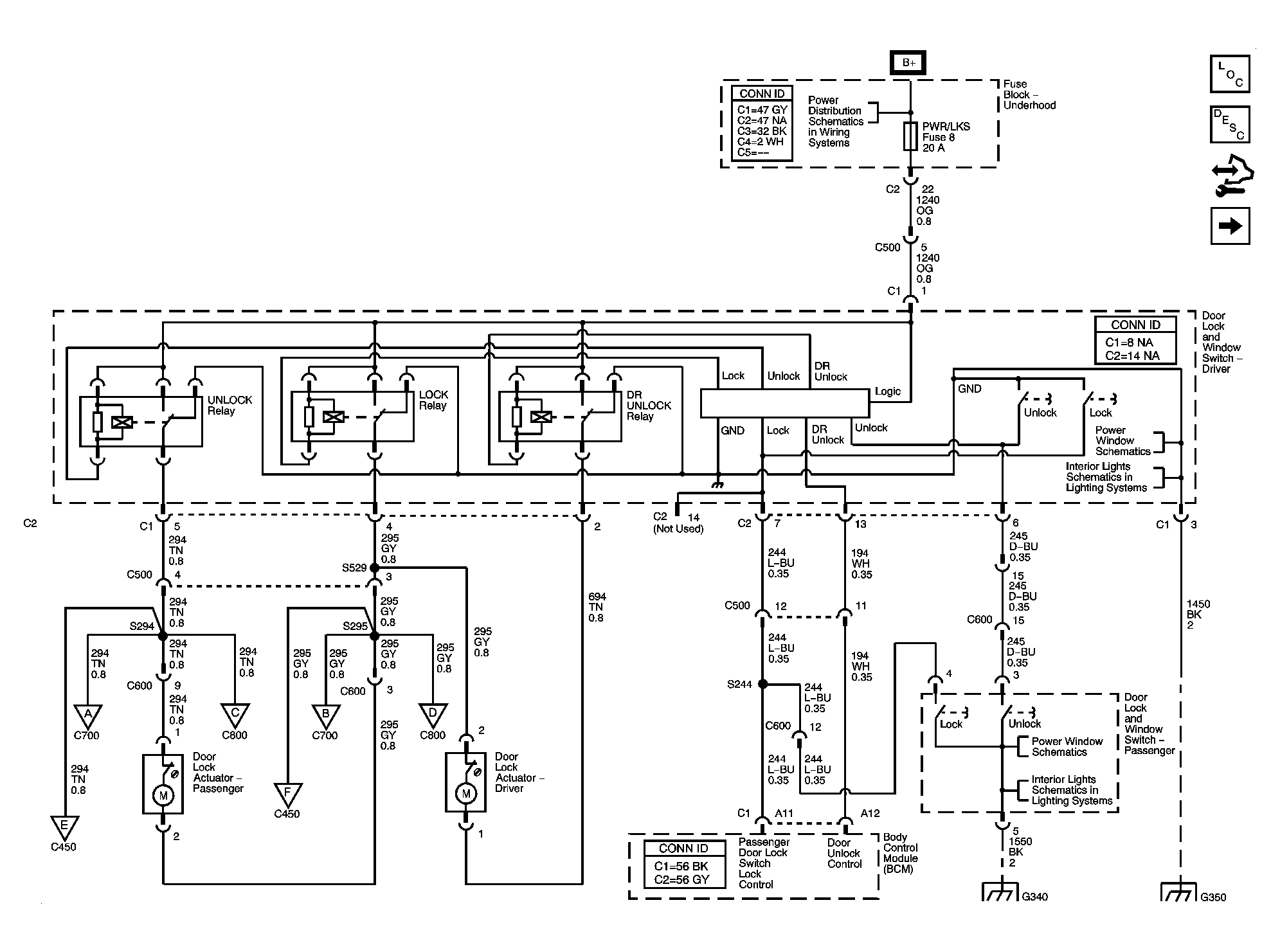

Fig 1: Power Door Locks
Courtesy of GENERAL MOTORS CORP.
Fig 2: Rear Door Lock and Swing Gate Actuators
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
