Window Regulator Motor Replacement - Front Door

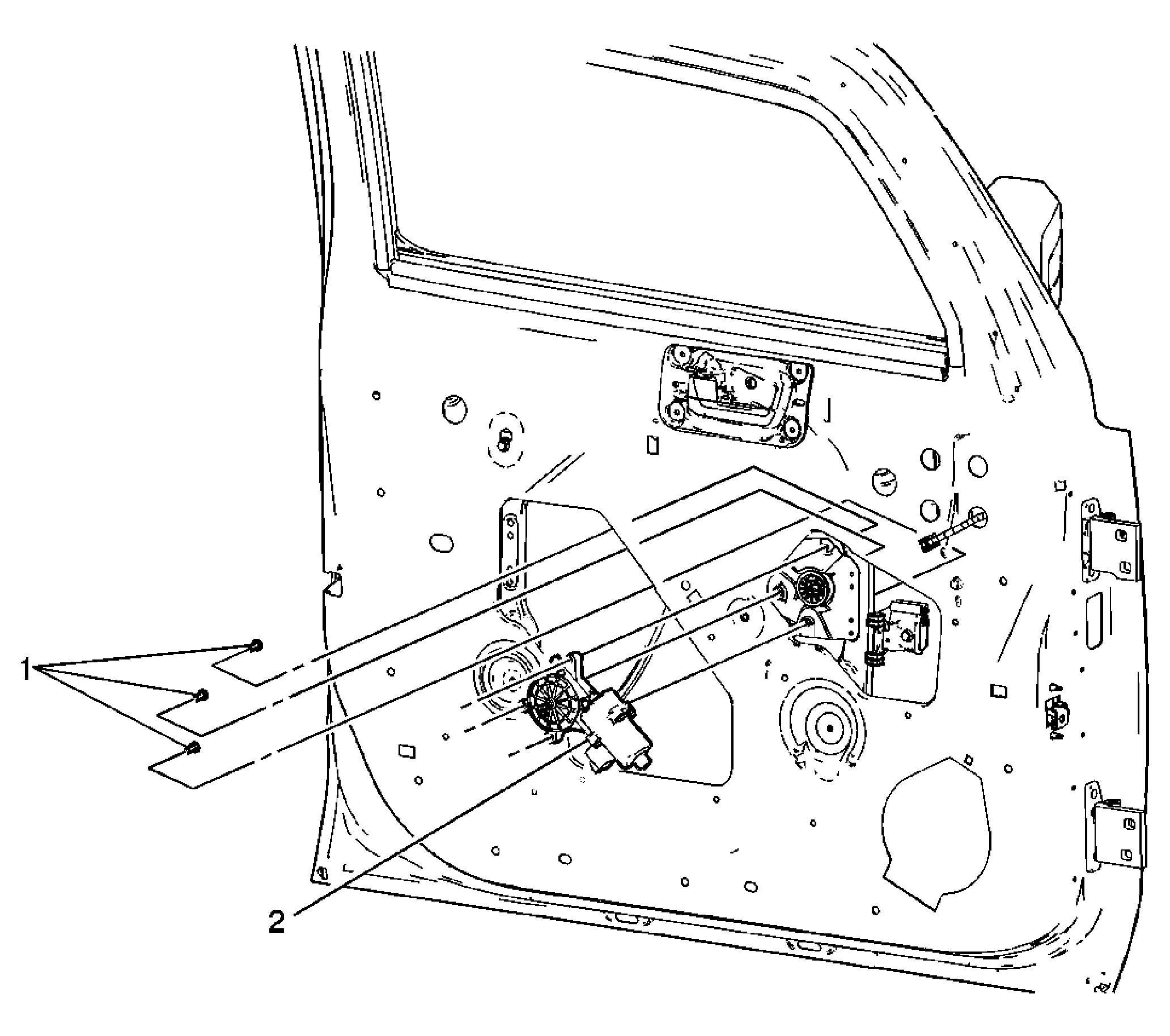

Fig 1: Window Regulator Motor Replacement - Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications Preliminary Procedures Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door Remove the water deflector. Refer to Water Deflector Replacement - Front Door
1	Bolt, Front Side Door Window Regulator Motor (Qty: 3) Tighten: 10 N.m (89 lb in)
2	Motor, Front Side Door Window Tip: Disconnect the electrical connector.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications

Preliminary Procedures

Bolt, Front Side Door Window Regulator Motor (Qty: 3)

Tighten: 10 N.m (89 lb in)

Motor, Front Side Door Window
Tip: Disconnect the electrical connector.
