Weatherstrip Replacement - Front Door

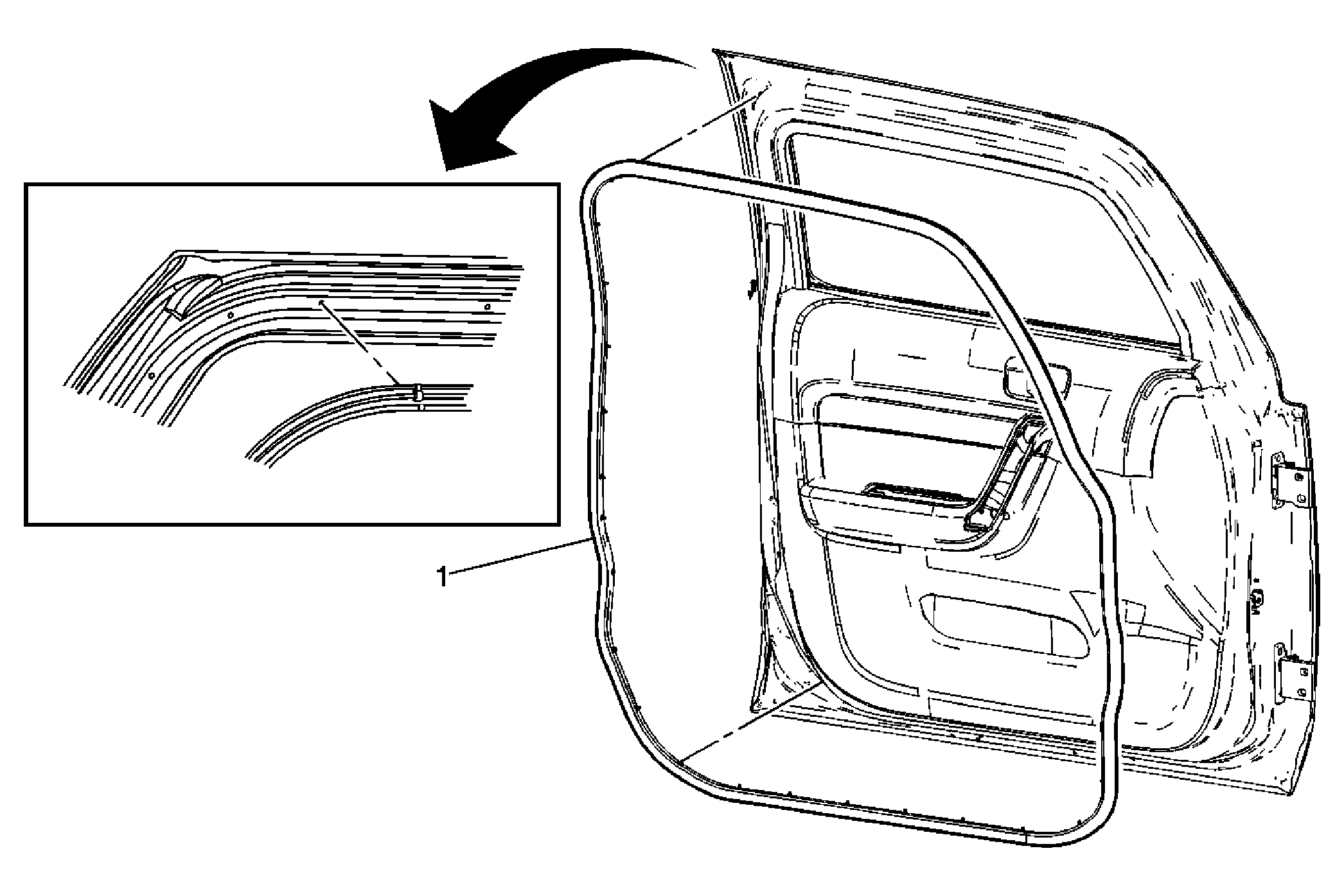

Fig 1: Weatherstrip Replacement - Front Door

Courtesy of GENERAL MOTORS CORP.

Weatherstrip Replacement - Front Door

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Weatherstrip, Front Door Tip:  Carefully pull the weatherstrip away from the front door.
