Door Handle Replacement - Front Outside
Door Handle Replacement - Front Outside

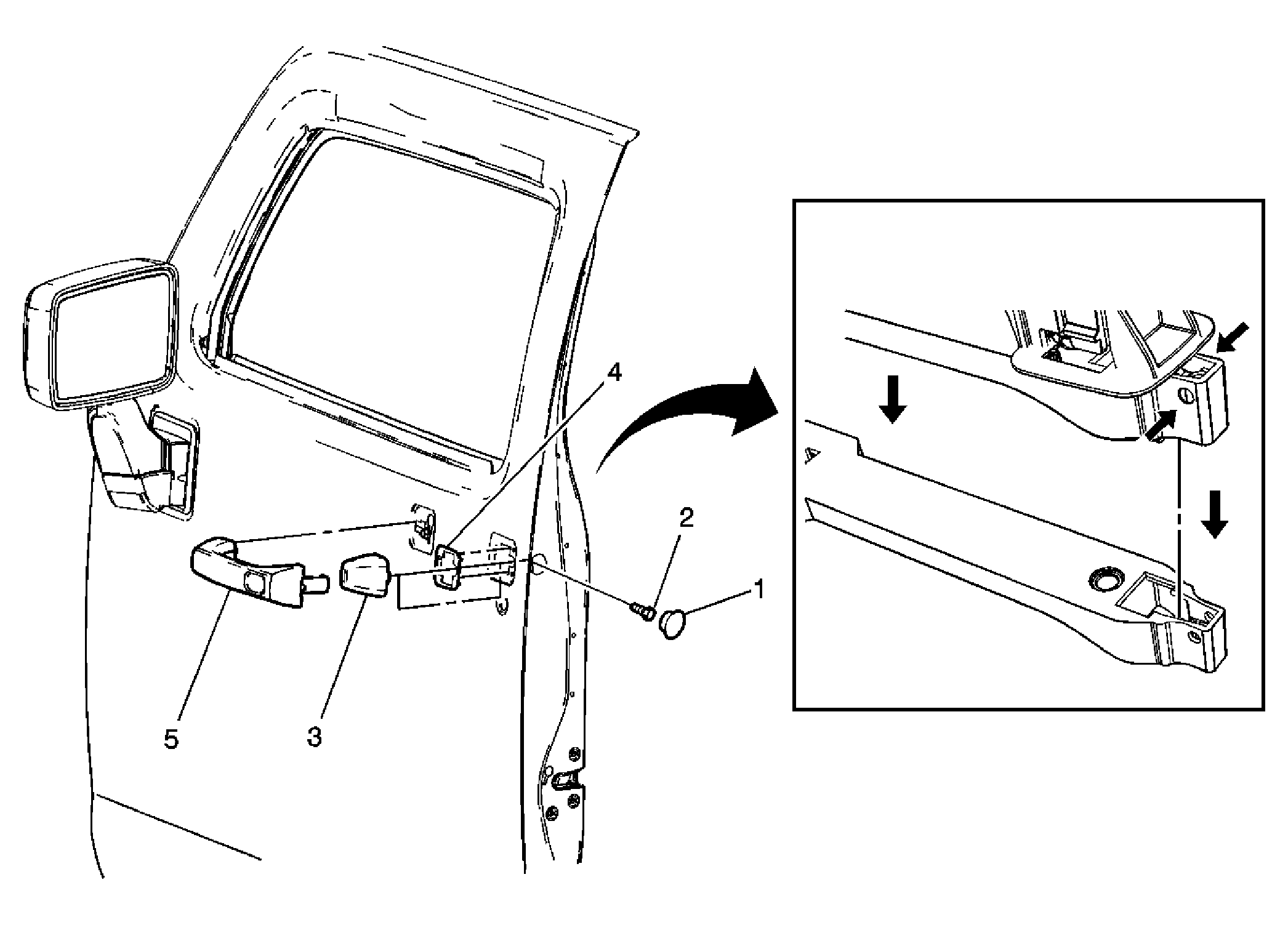

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Plug, Bolt Access Tip: Use a plastic flat-bladed tool to remove. |
| 2 | Bolt, Front Side Door Outside Handle Tighten: 9 N.m (80 lb in) |
| 3 | Cap, Front Door Outside Handle |
| 4 | Gasket, Front Door Outside Handle Cap |
| 5 | Handle, Front Door Outside Tip: Release the outside handle from the inside handle. |
