Sunroof Switch Replacement

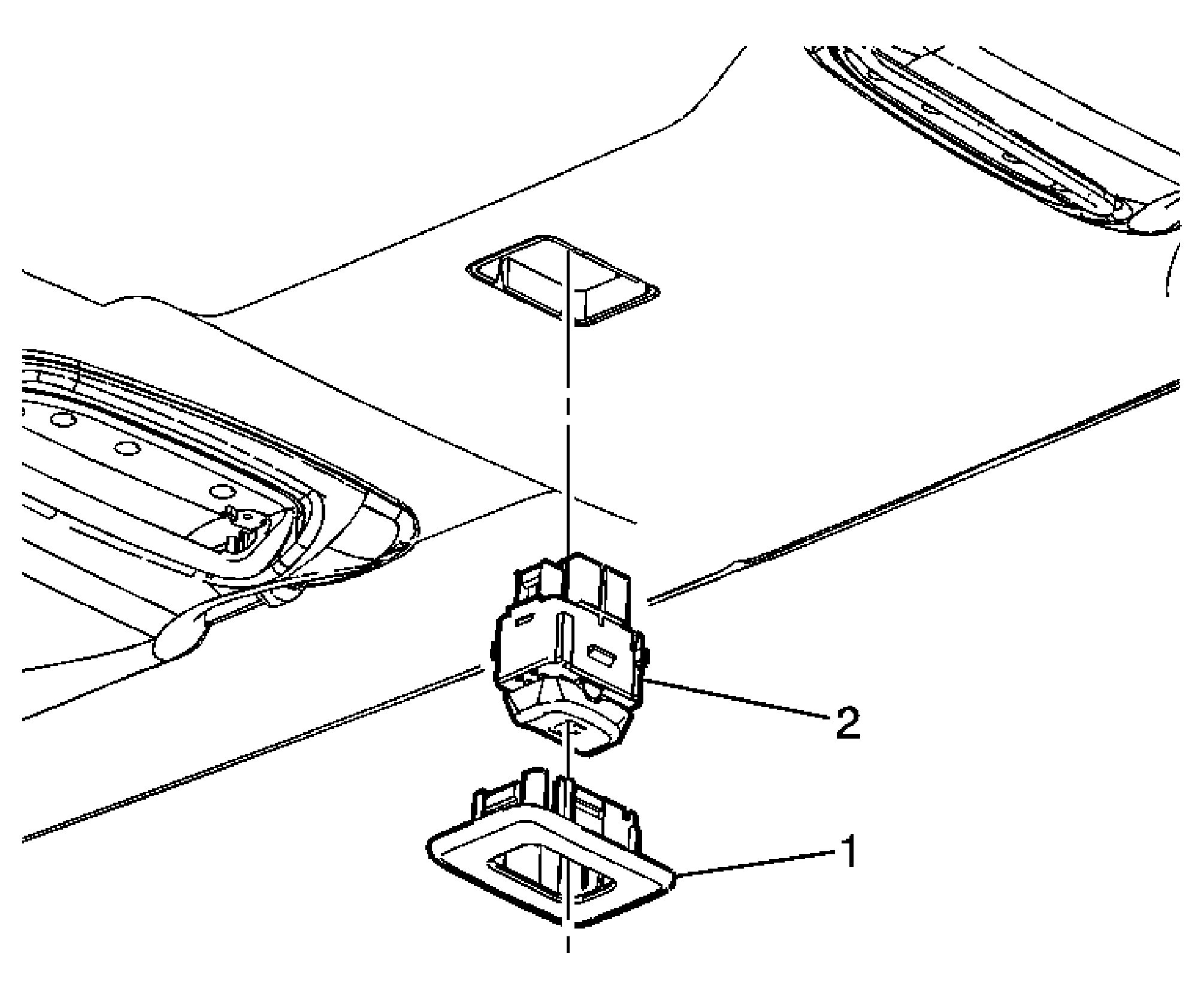

Fig 1: Sunroof Switch Replacement
GM1562695Courtesy of GENERAL MOTORS CORP.
Sunroof Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Bezel, Sunroof Switch
Tip:  Pry the bezel with a flat-bladed tool.
2 Switch, Sunroof
Tip:  Disconnect the electrical connector.
