Seat Switch Bezel Replacement

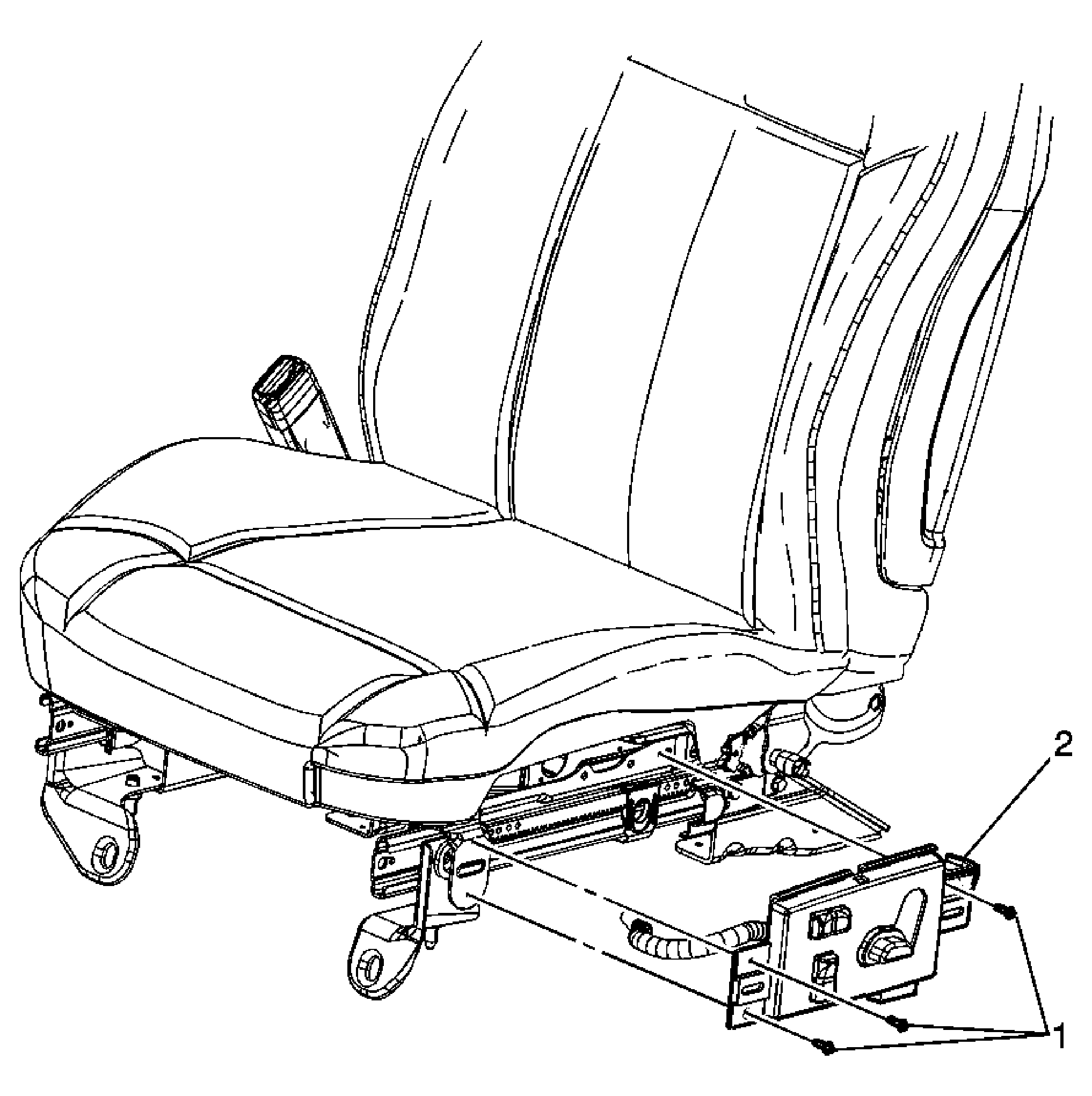

Fig 1: Seat Switch Bezel Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front bucket seat. Refer to Seat Replacement - Front Bucket . Remove the front seat trim panel. Refer to Trim Panel Replacement - Front Seat (Power Lumbar) or Trim Panel Replacement - Front Seat (Manual Lumbar) .
1	Screw, Seat Switch Assembly (Qty: 3) Tighten: 2 N.m (18 lb in)
2	Bezel Assembly, Seat Switch Tip: Disconnect the electrical connectors.

Callout

Component Name

NOTE: Refer to Fastener Notice in Cautions and Notices.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Screw, Seat Switch Assembly (Qty: 3)

Tighten: 2 N.m (18 lb in)

Bezel Assembly, Seat Switch
Tip: Disconnect the electrical connectors.
