Seat Back Frame Replacement - Rear

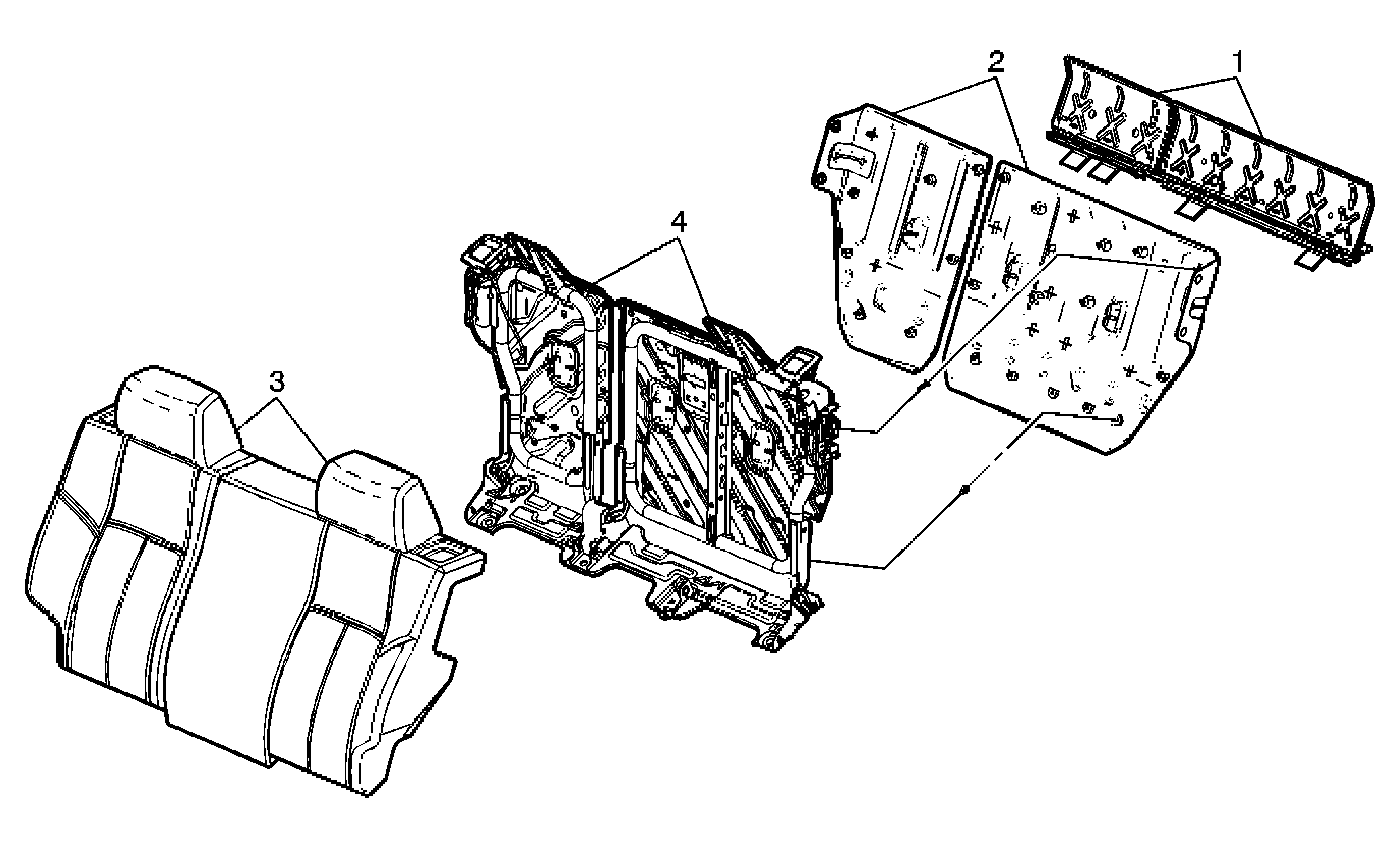

Fig 1: Seat Back Frame Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the rear seat back. Refer to Seat Back Replacement - Rear .
1	Panel, Rear Seat Back Cushion Filler Tip: Release the filler panel by pulling rearward to release the retaining clips.
2	Panel, Rear Seat Back Cushion Tip: Recline the seat forward. Remove the panel by pulling the panel away from the seat back to disengage the retainers. Remove the lower bolt from the center seat belt. Remove the seat back cushion cover and pad as an assembly and feed the center seat belt through the opening when removing.
3	Cushion Cover and Pad, Rear Seat Back Refer to Seat Back Cover and Pad Replacement - Rear .
4	Frame, Rear Seat Back Cushion
