Lumbar Support Knob Replacement

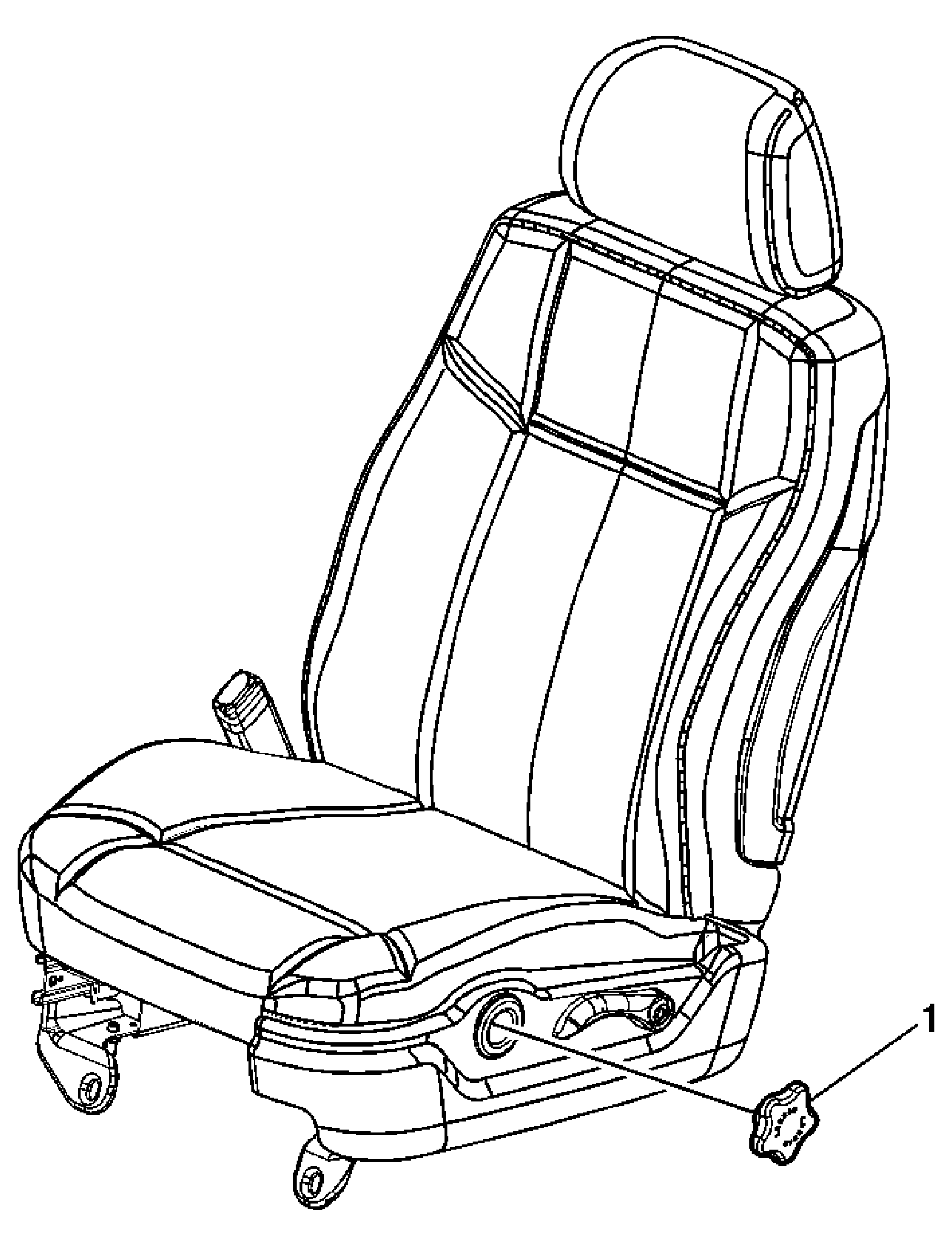

Fig 1: Lumbar Support Knob Replacement
GM1552297Courtesy of GENERAL MOTORS CORP.
Lumbar Support Knob Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Knob, Lumbar Support Actuator
Tip:  Pull away from the seat to remove.
