Head Restraint Guide Replacement - Front Seat

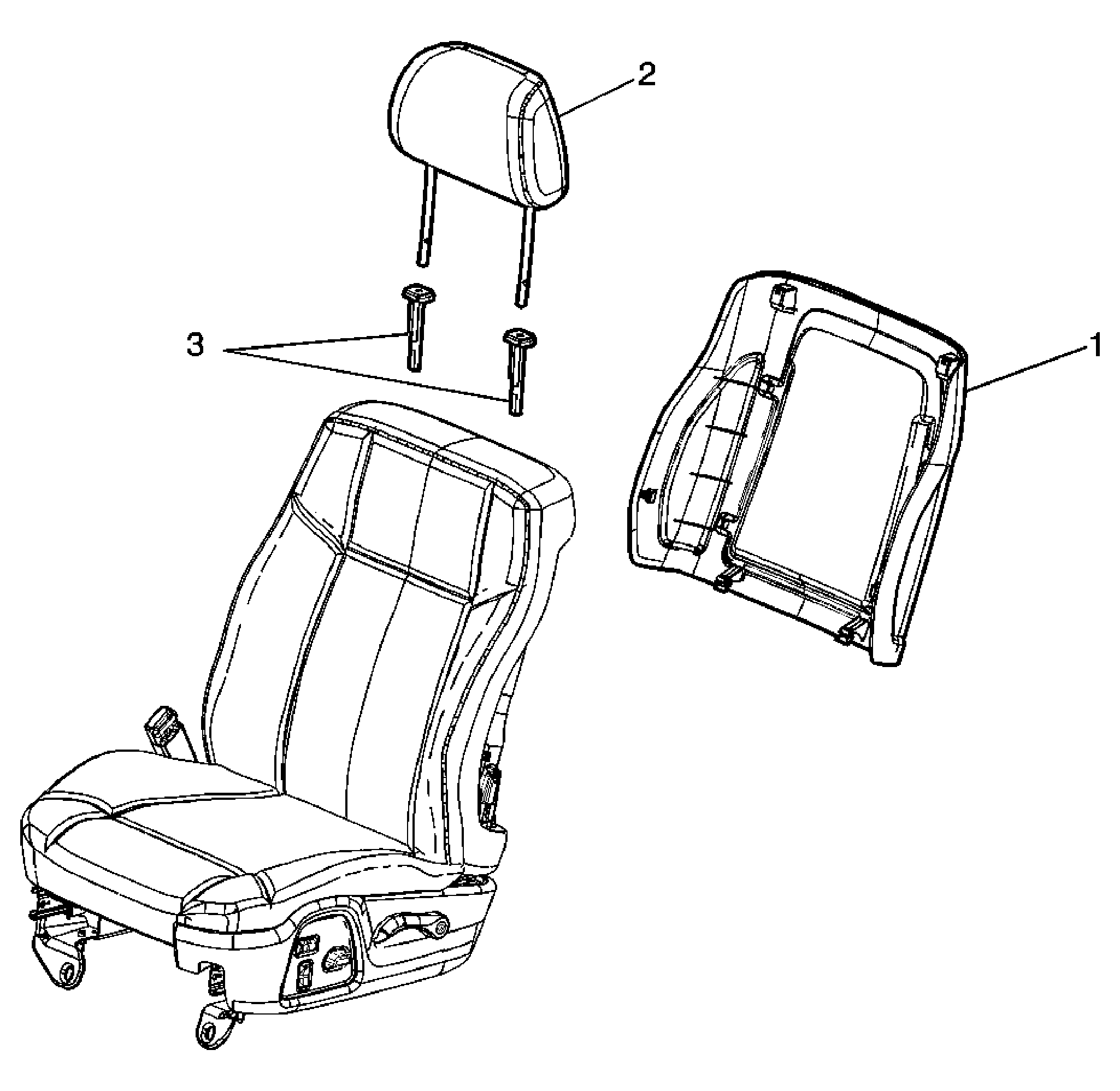

Fig 1: Head Restraint Guide Replacement - Front Seat
GM1552302Courtesy of GENERAL MOTORS CORP.
Head Restraint Guide Replacement - Front Seat

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Panel, Seat Back
Tip:  Pull rearward to disengage the retainers, then pull upward to disengage the seat back panel from the seat back frame.
2 Restraint, Seat Head
Tip:  Push in the button on the head restraint guide and pull up on the head restraint to remove.
3 Guide, Seat Head Restraint (Qty: 2)
Tip:  Squeeze the bottom of the guide and push upward to remove.
