Wiper/Washer System Schematics

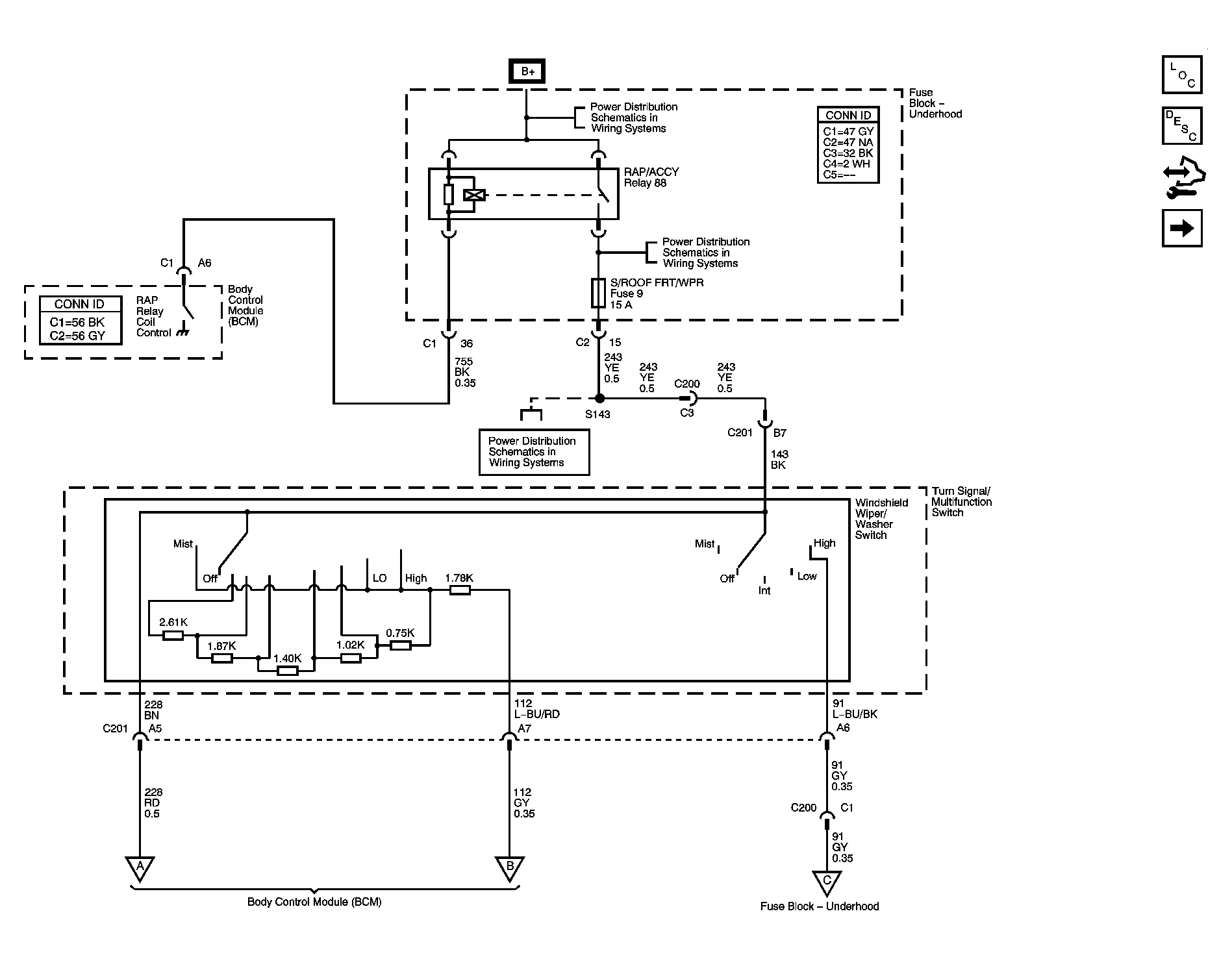

Fig 1: Windshield Wiper/Washer Switch
GM1566717Courtesy of GENERAL MOTORS CORP.

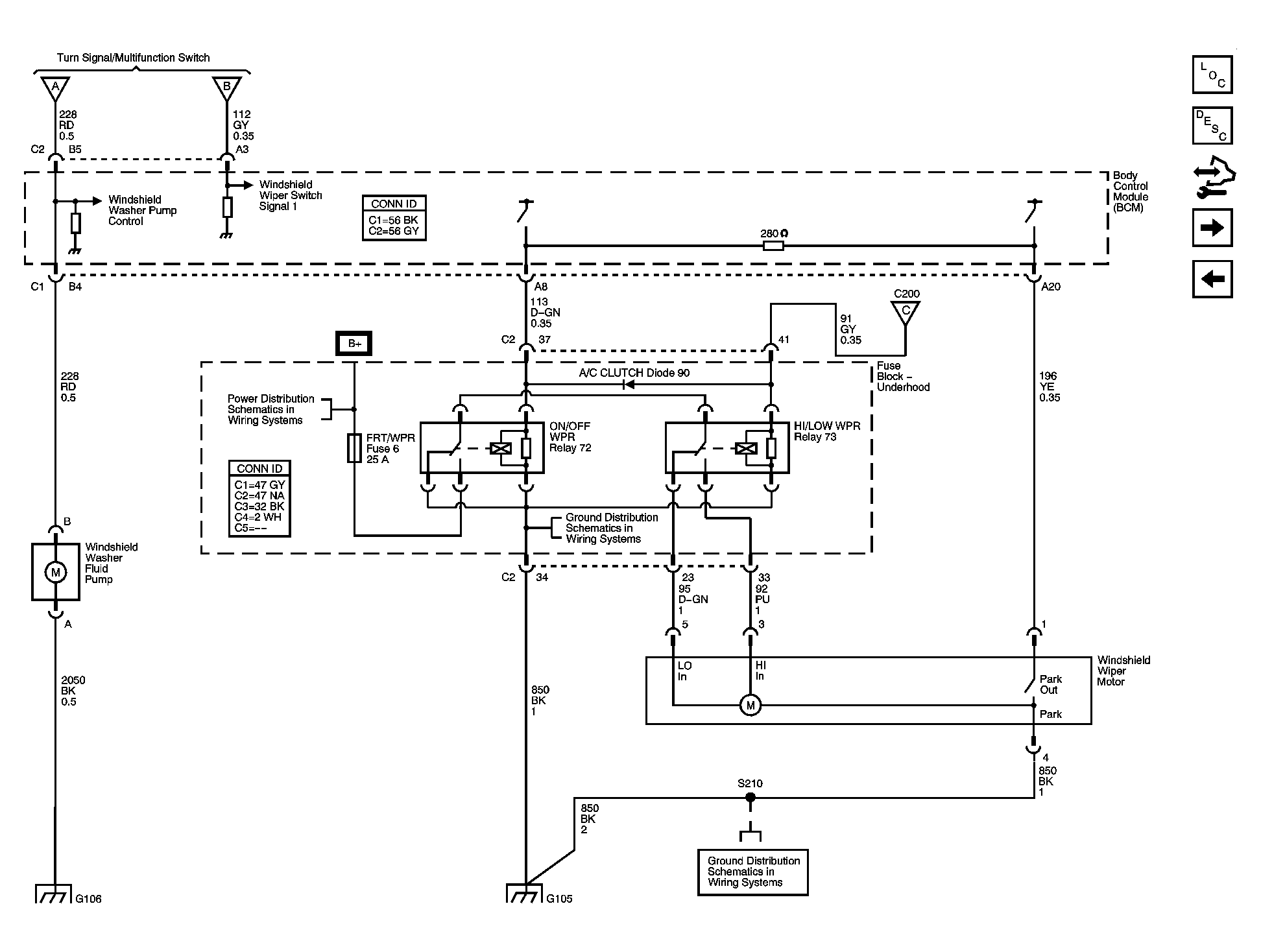

Fig 2: Windshield Washer Fluid Pump and Windshield Wiper Motor
GM1566718Courtesy of GENERAL MOTORS CORP.

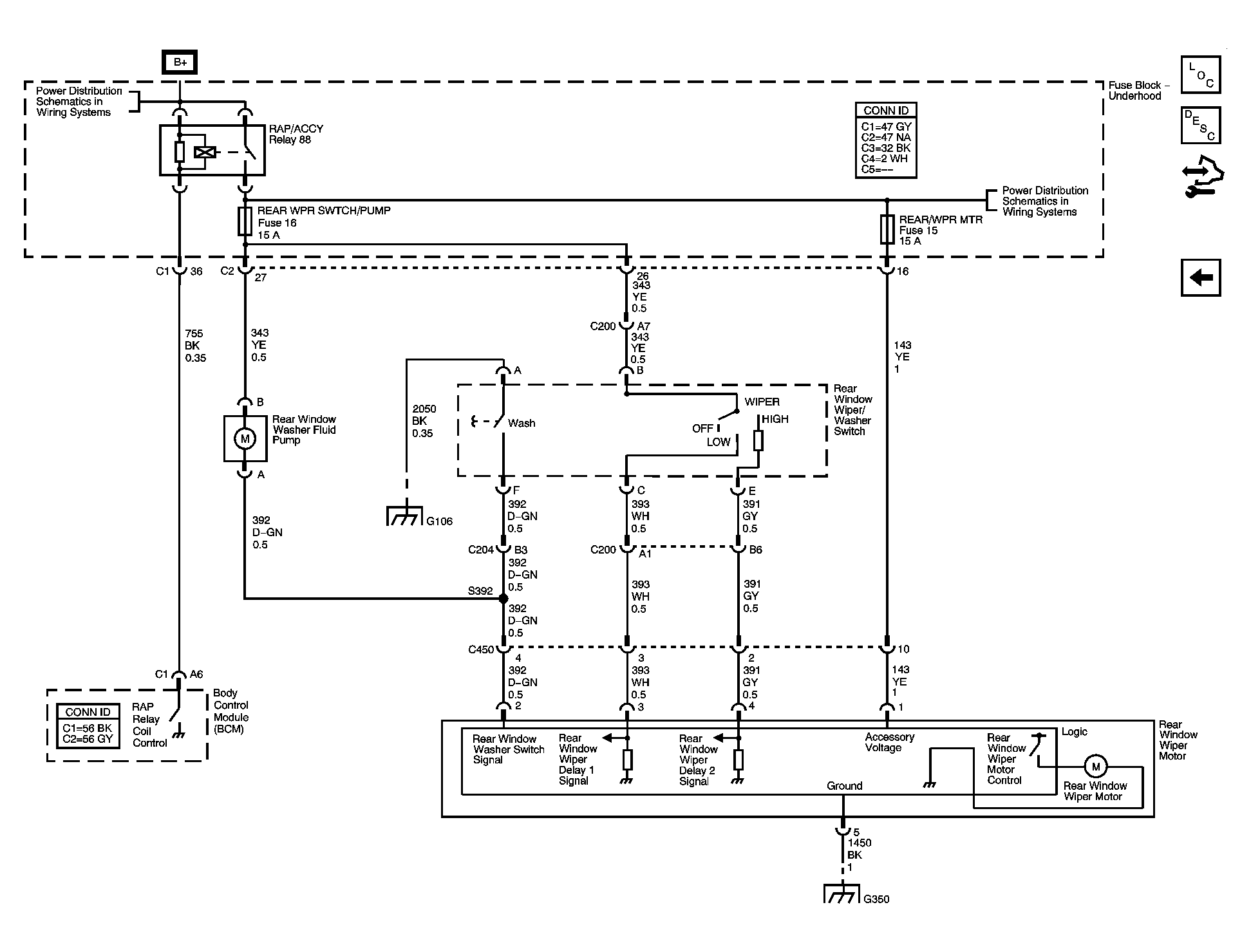

Fig 3: Rear Wiper
GM1566719Courtesy of GENERAL MOTORS CORP.
