Power Window Schematics

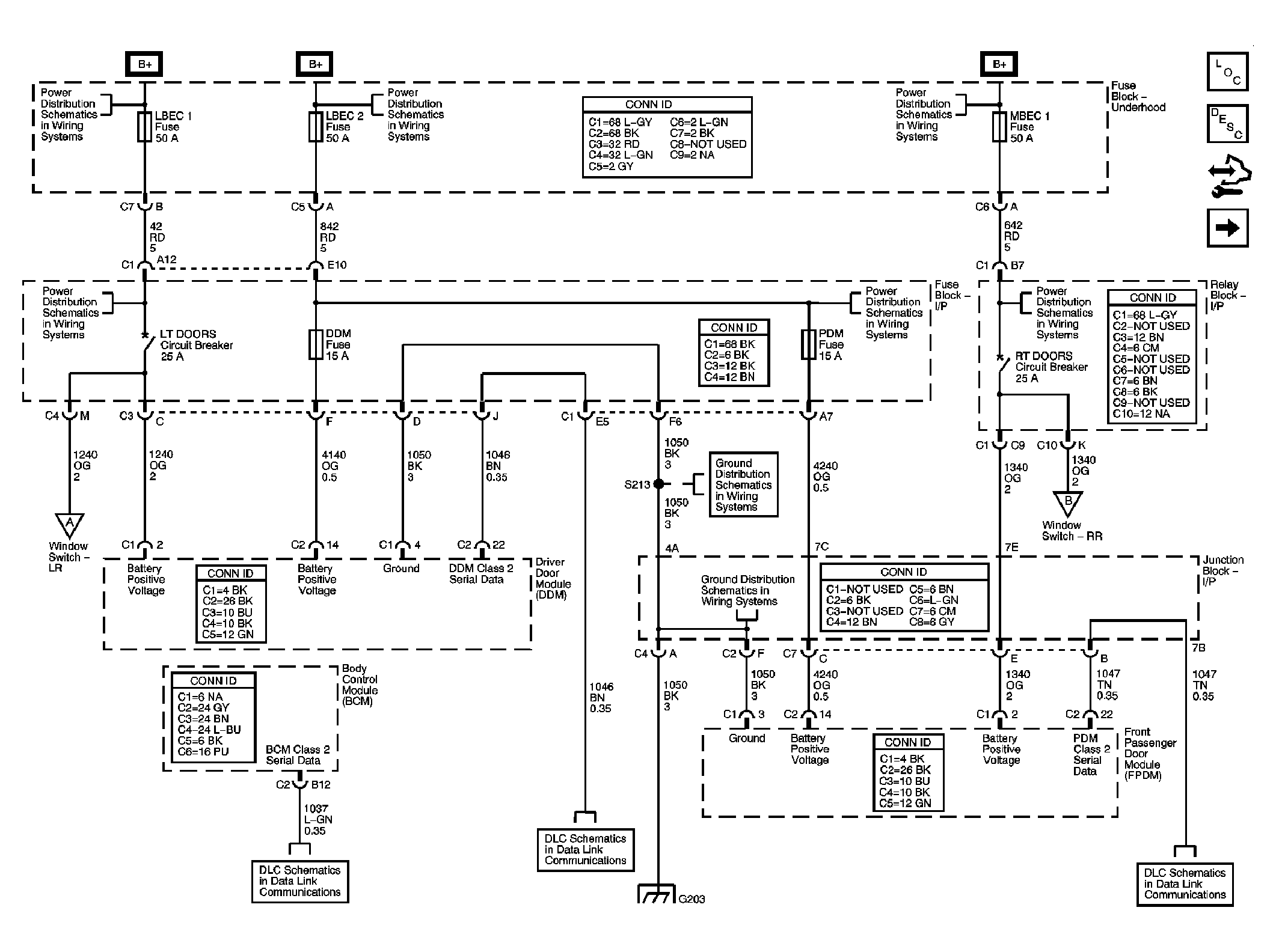

Fig 1: Power, Ground, and Serial Data
GM1566975Courtesy of GENERAL MOTORS CORP.

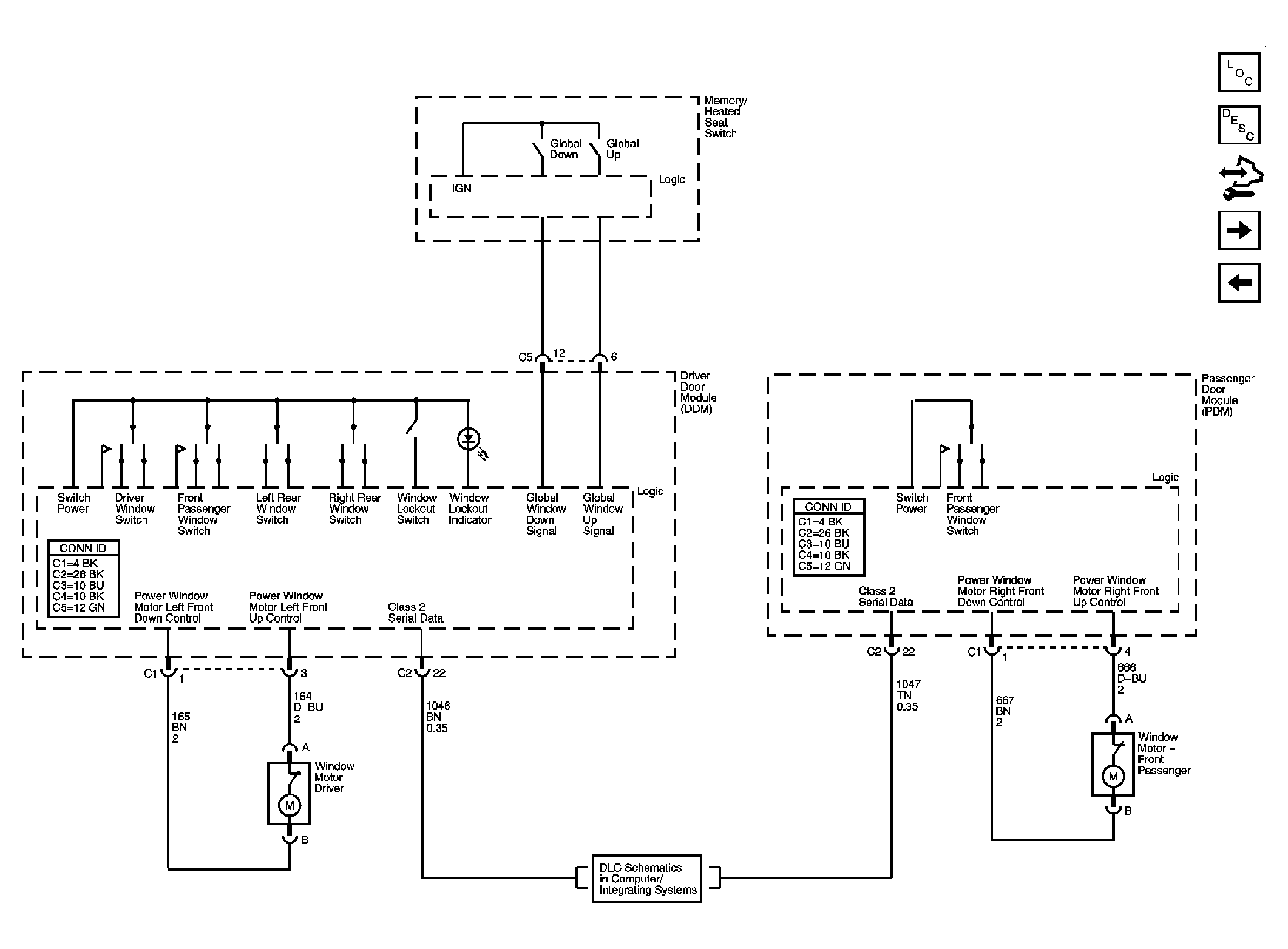

Fig 2: Front Door Windows
GM1566976Courtesy of GENERAL MOTORS CORP.

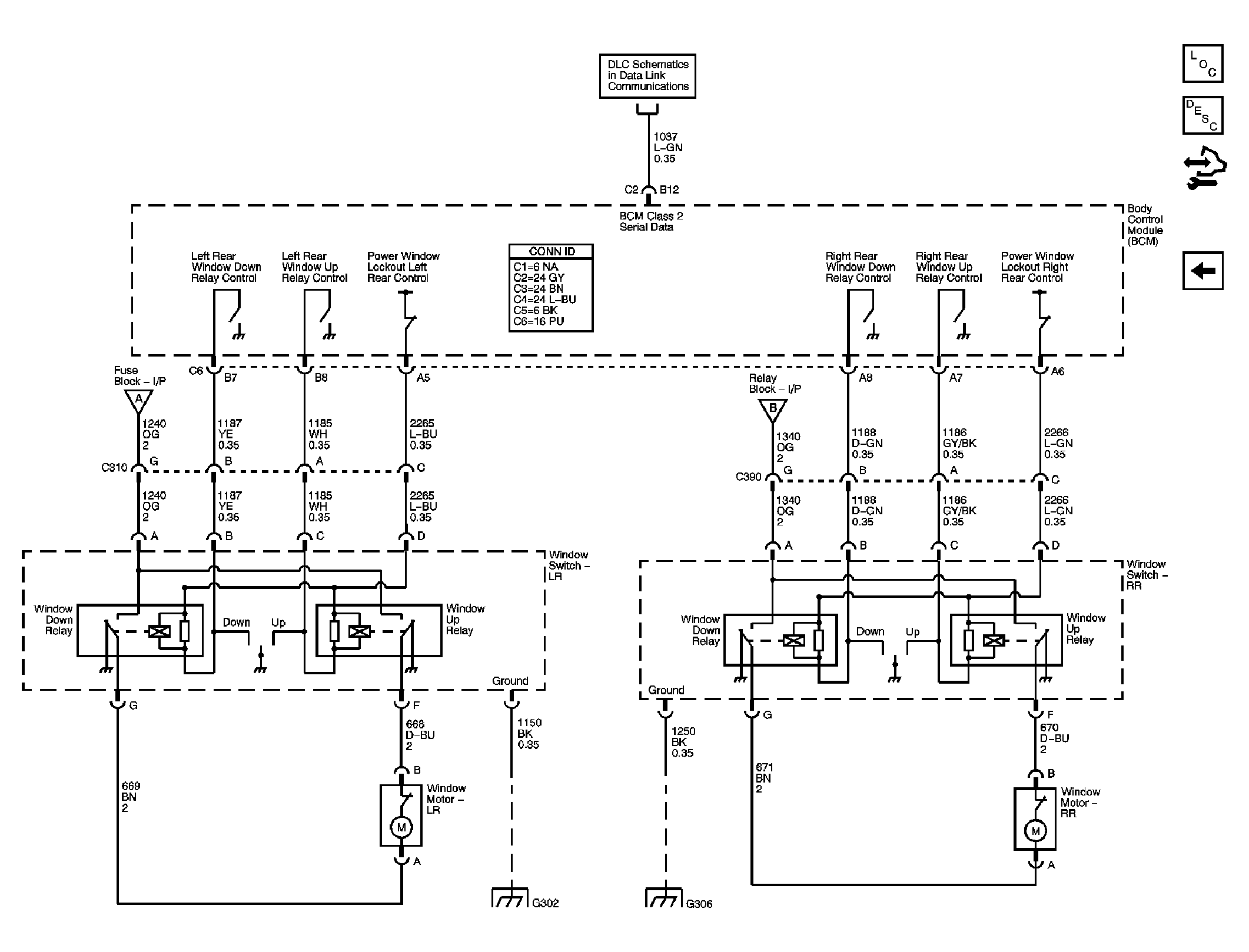

Fig 3: Rear Door Windows
GM1566978Courtesy of GENERAL MOTORS CORP.
