Rear Door Weatherstrip Replacement
>>
Installation Procedure
Installation Procedure

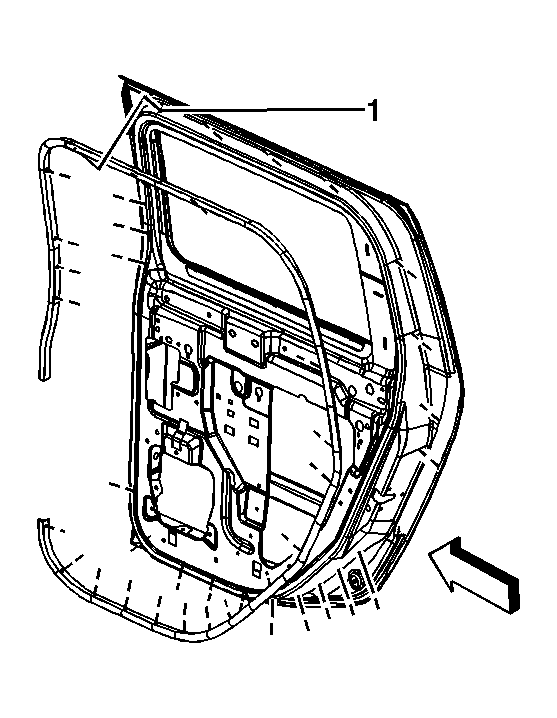

Fig 1: Rear Door Weatherstrip
Courtesy of GENERAL MOTORS CORP.
Install weatherstrip by securing the 22 retainers into their correct locating holes (1) on the door.
Close the doors.
