Removal Procedure

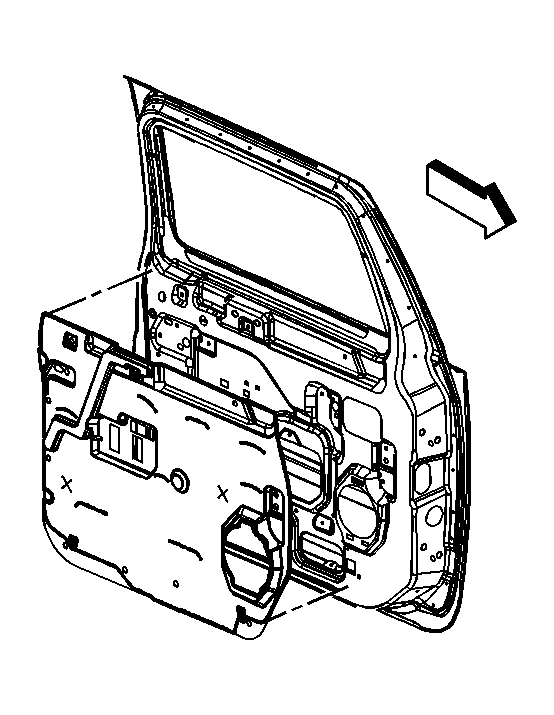

    Fig 1: Front Door Water Deflector
    GM831760Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Water deflectors seal the inner panel, preventing water from entering the door. A piece of adhesive between the deflector and the door secures the deflector.
  1. Remove the trim panel. Refer to Front Side Door Trim Panel Replacement .
  2. Remove the inside door handle. Refer to Front Side Door Inside Handle Replacement .
  3. Using a flat-bladed tool, break the bond between the sealer and the door.
  4. Remove the water deflector.
