Video Disc Player Replacement

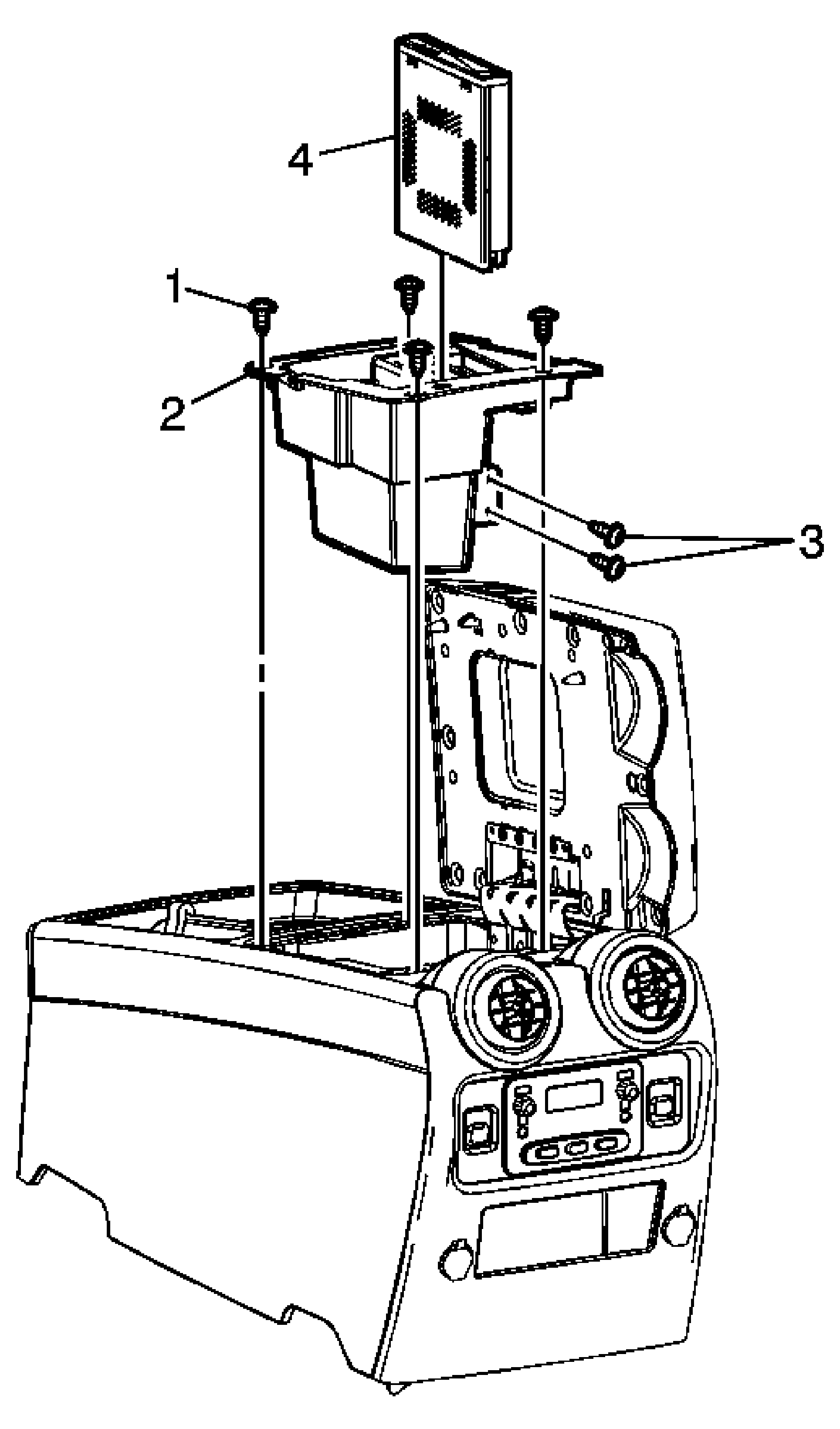

Fig 1: View Of Center Console Video Disc Player And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice Fastener Notice . Fastener Tightening Specifications Refer to Fastener Tightening Specifications .
1	Video Disc Player Bracket Assembly Screw (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Video Disc Player Bracket Assembly
3	Video Disc Player Assembly Screw (Qty: 4) Tighten: 2 N.m (18 lb in)
4	Video Disc Player Assembly Tip: Disconnect the connectors.
