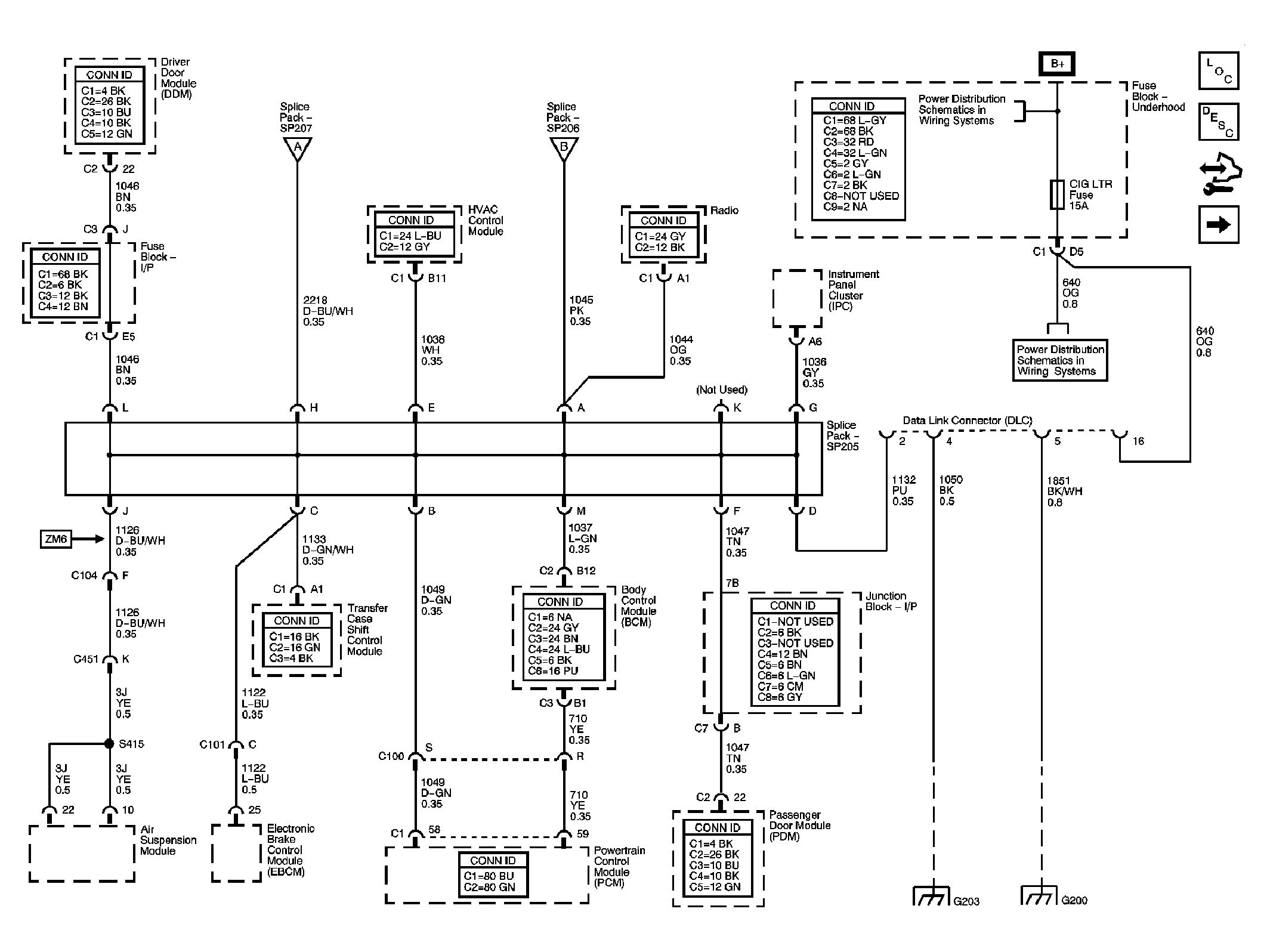

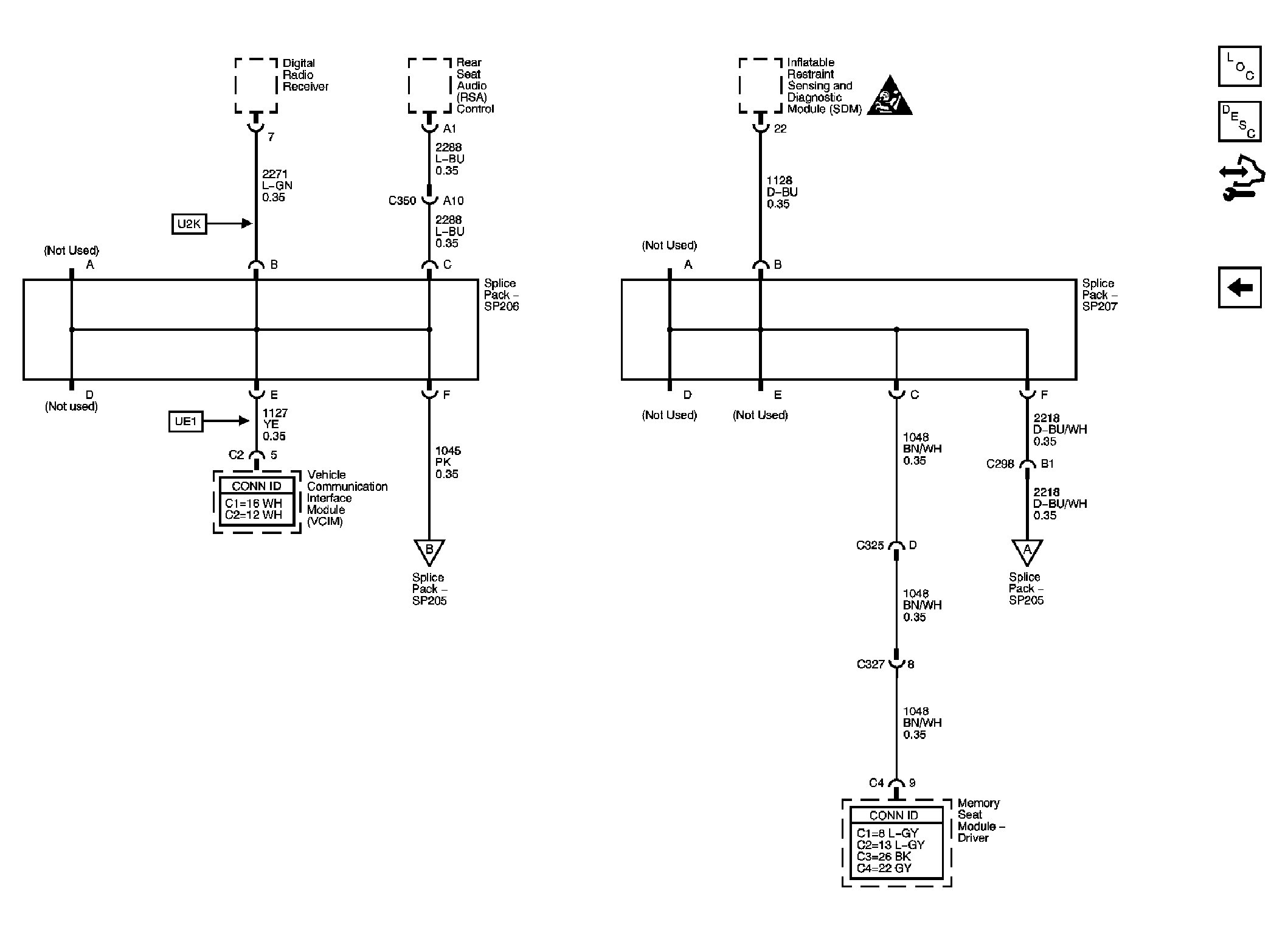

Home >> Hummer >> 2006 >> H2 4D Utility Pickup >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Computer/Integrating Systems >> Schematic and Routing Diagrams >> Data Link Connector Schematics
