Rear Window Wiper Control Module Replacement

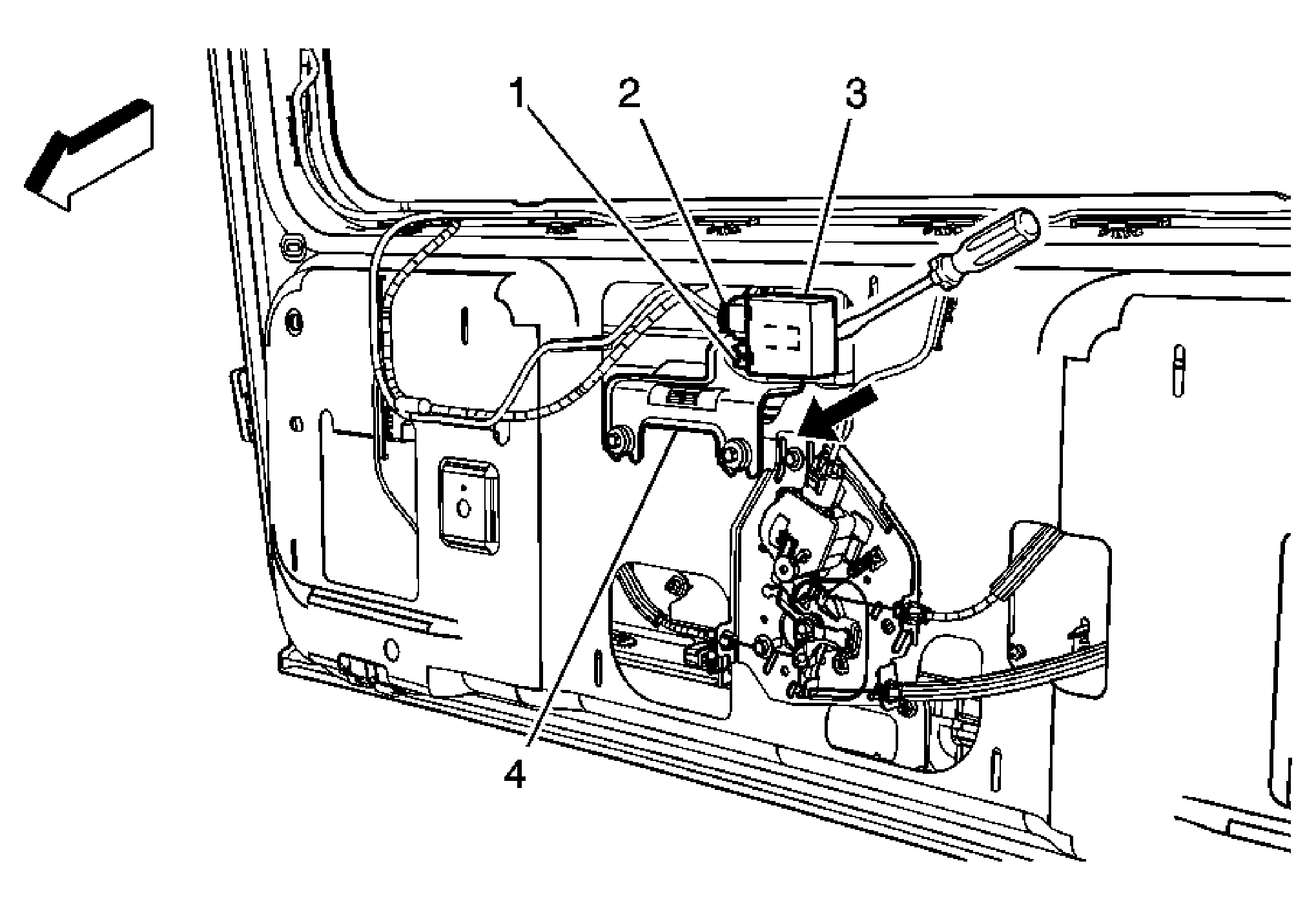

Fig 1: Rear Window Wiper Control Module Replacement

Courtesy of GENERAL MOTORS CORP.

Rear Window Wiper Control Module Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications . Preliminary Procedure:  Remove the rear liftgate trim panel. Refer to Liftgate Trim Panel Replacement .
1	Wiper Motor Electrical Connector
2	Main Liftgate Harness Electrical Connector
3	Rear Window Wiper Control Module Tip:  Using a flat-bladed tool, insert the tool behind the control module and release the locking tab in order to slide and remove the wiper control module from the wiper motor bracket. Program the rear window wiper control module. Refer to Control Module References .
4	Rear Window Wiper Motor Bracket
