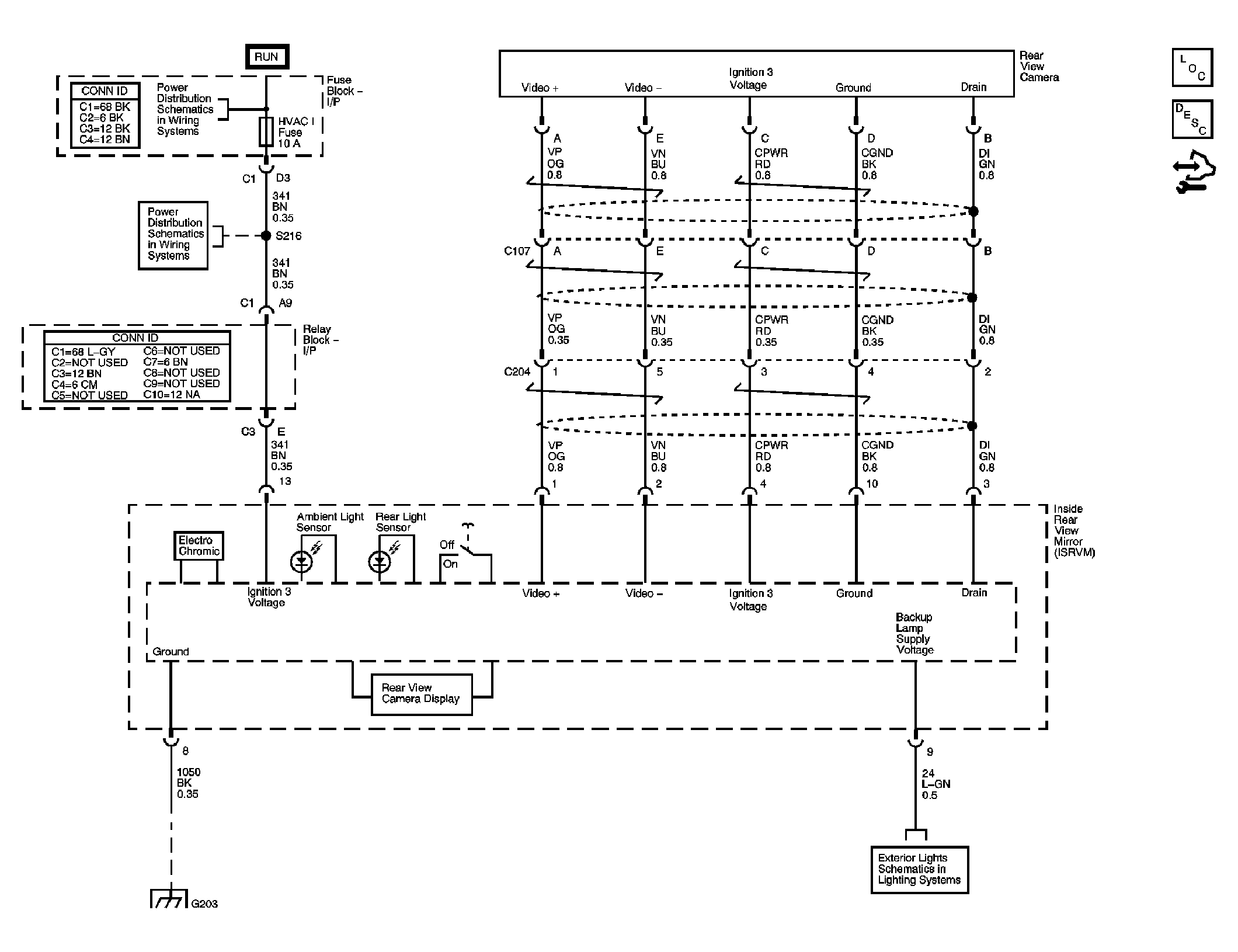

Home >> Hummer >> 2006 >> H2 4D Utility Pickup >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Collision/Avoidance >> Object Detection >> Schematic and Routing Diagrams >> Object Detection Schematics
