Ground Distribution Schematics

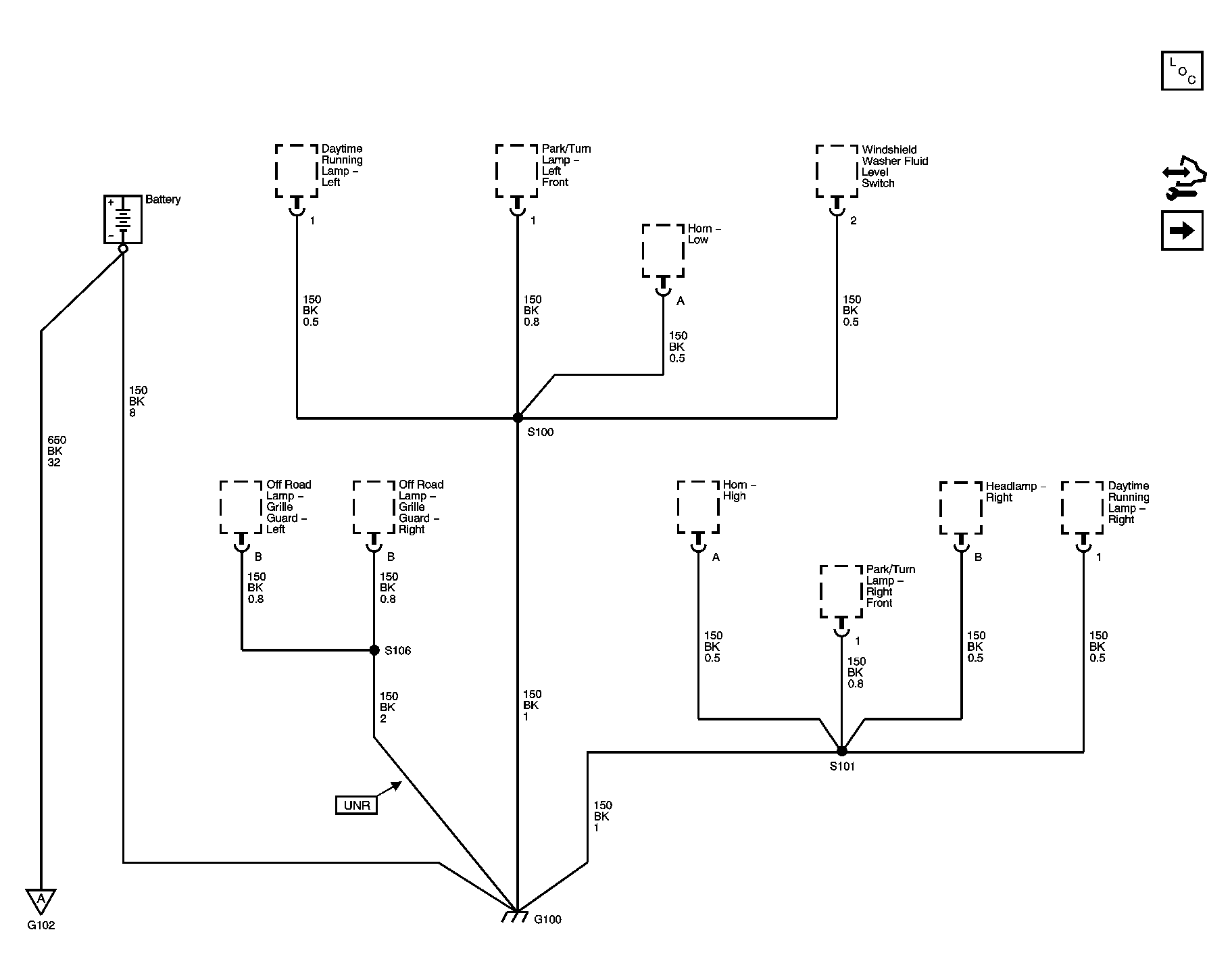

Fig 1: G100

GM1462329

Courtesy of GENERAL MOTORS CORP.

Fig 2: G102 and G103

GM1462331

Courtesy of GENERAL MOTORS CORP.

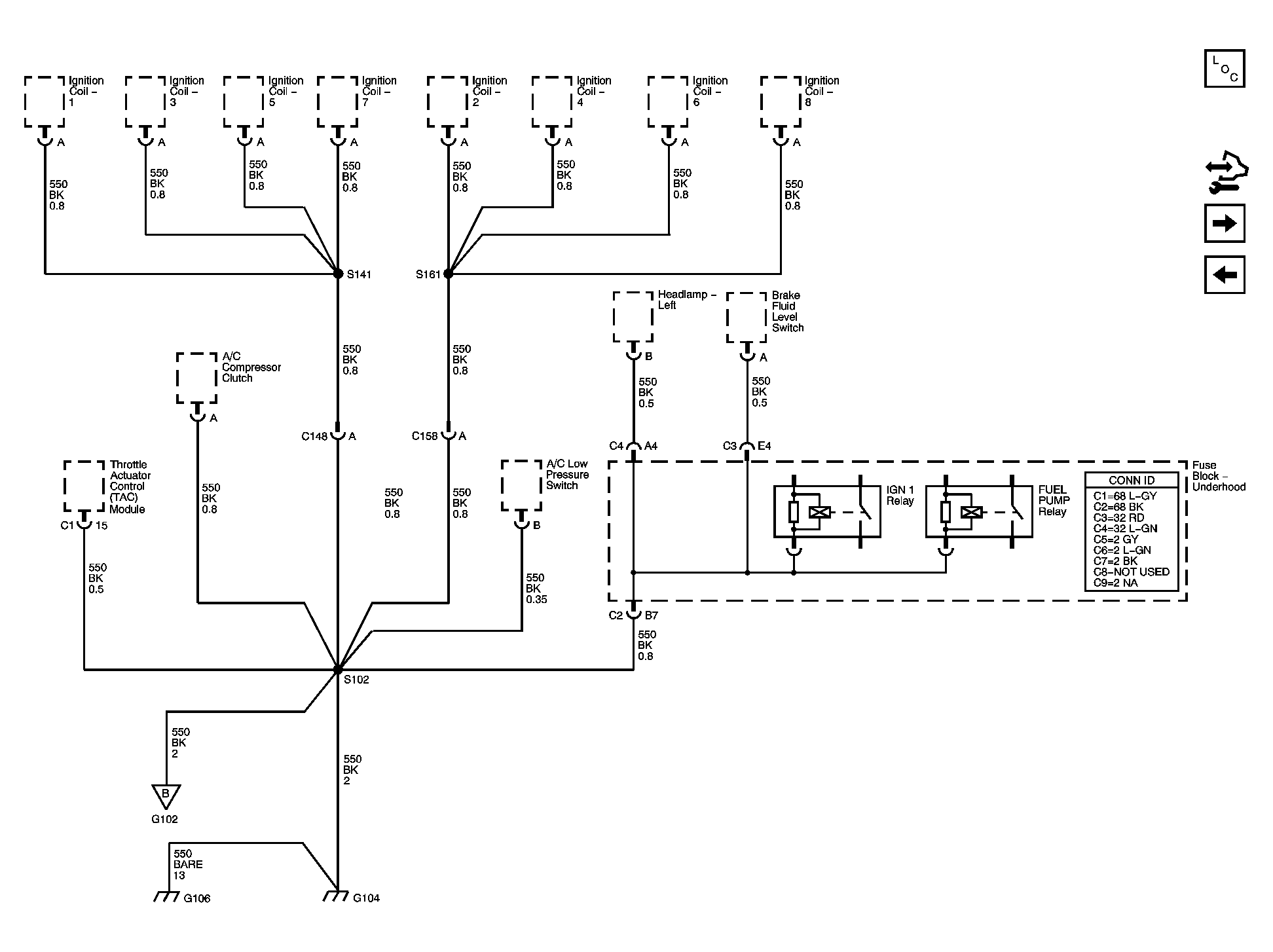

Fig 3: G104 and G106

GM1462335

Courtesy of GENERAL MOTORS CORP.

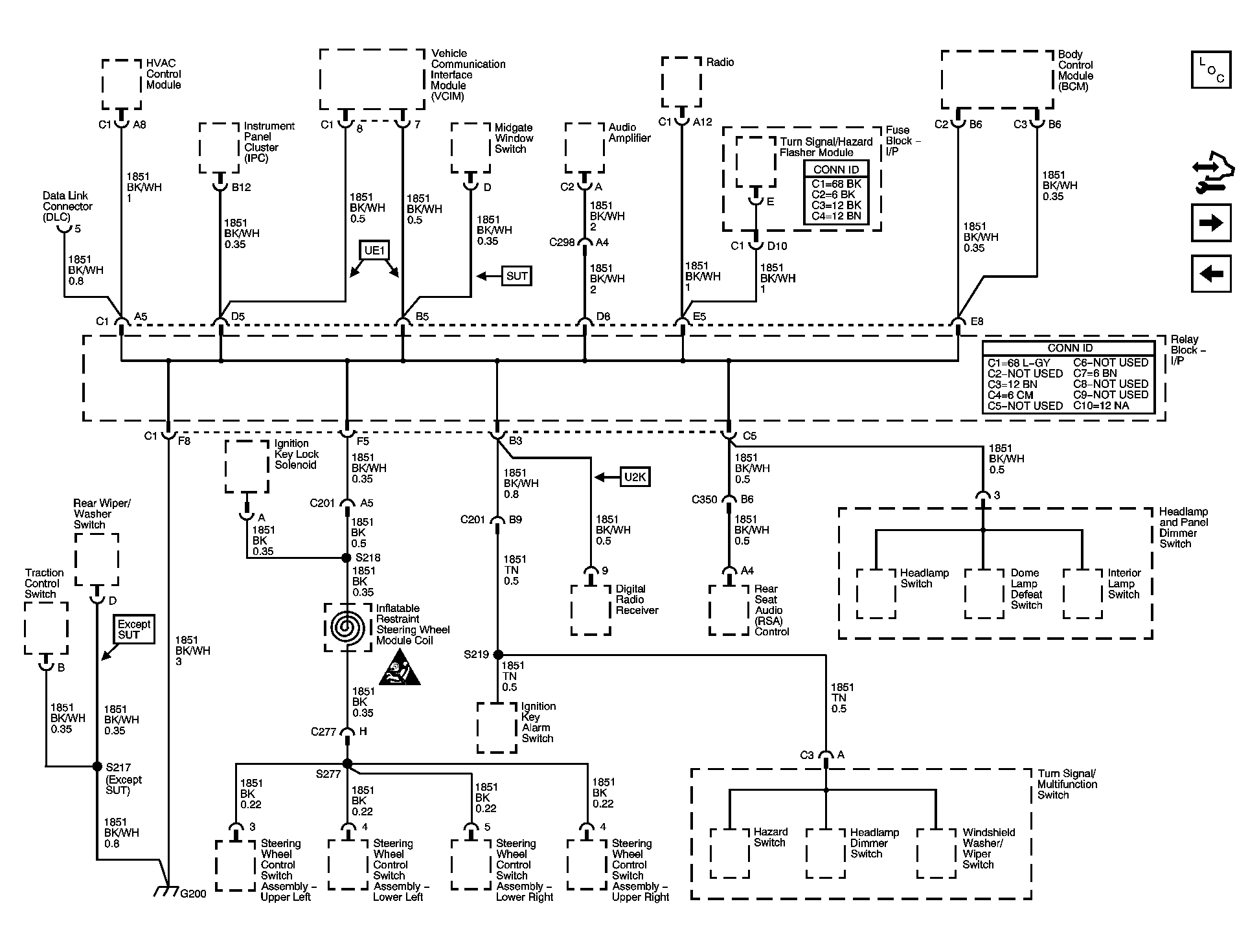

Fig 4: G200

GM1462337

Courtesy of GENERAL MOTORS CORP.

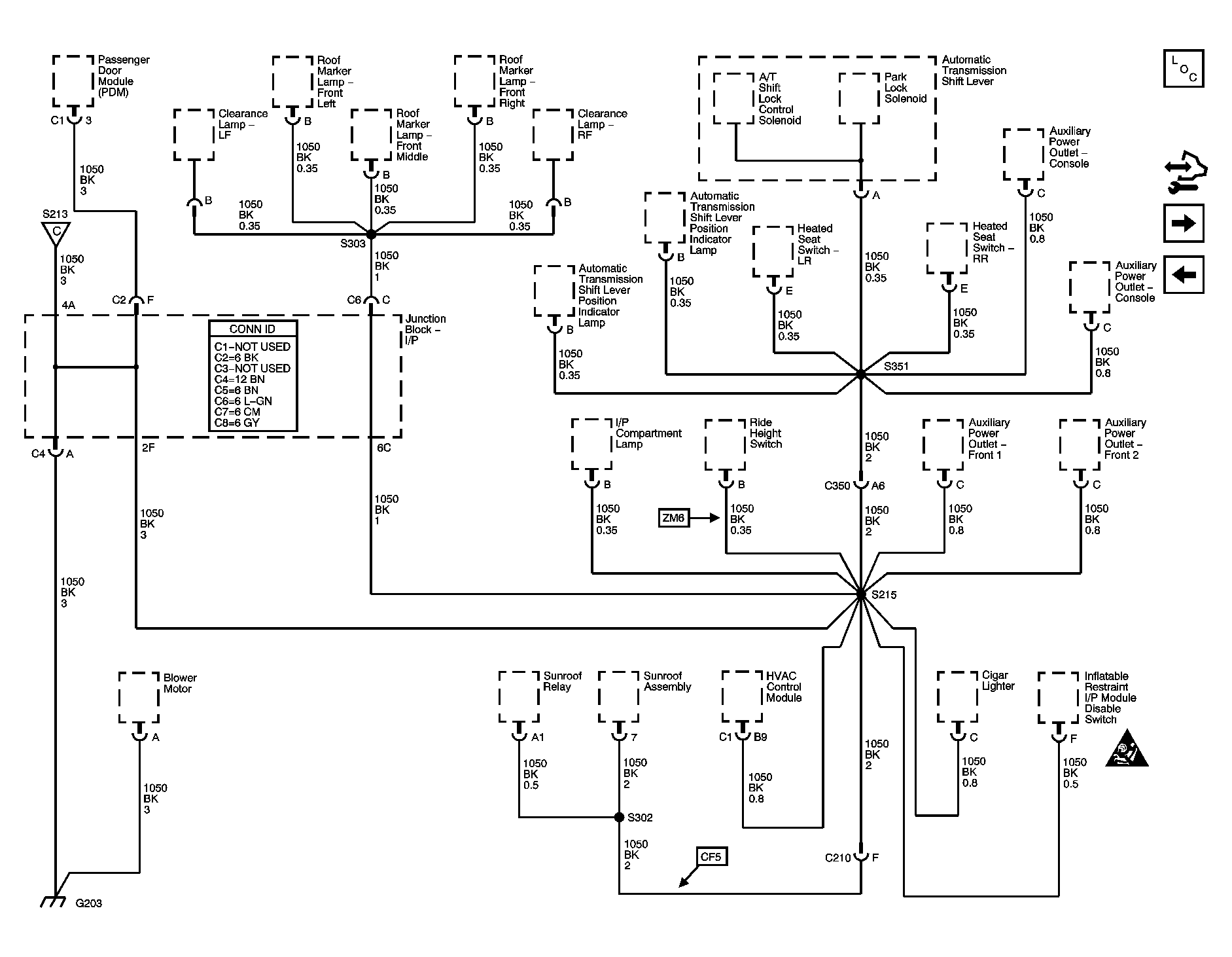

Fig 5: G203 - 1 of 2

GM1462338

Courtesy of GENERAL MOTORS CORP.

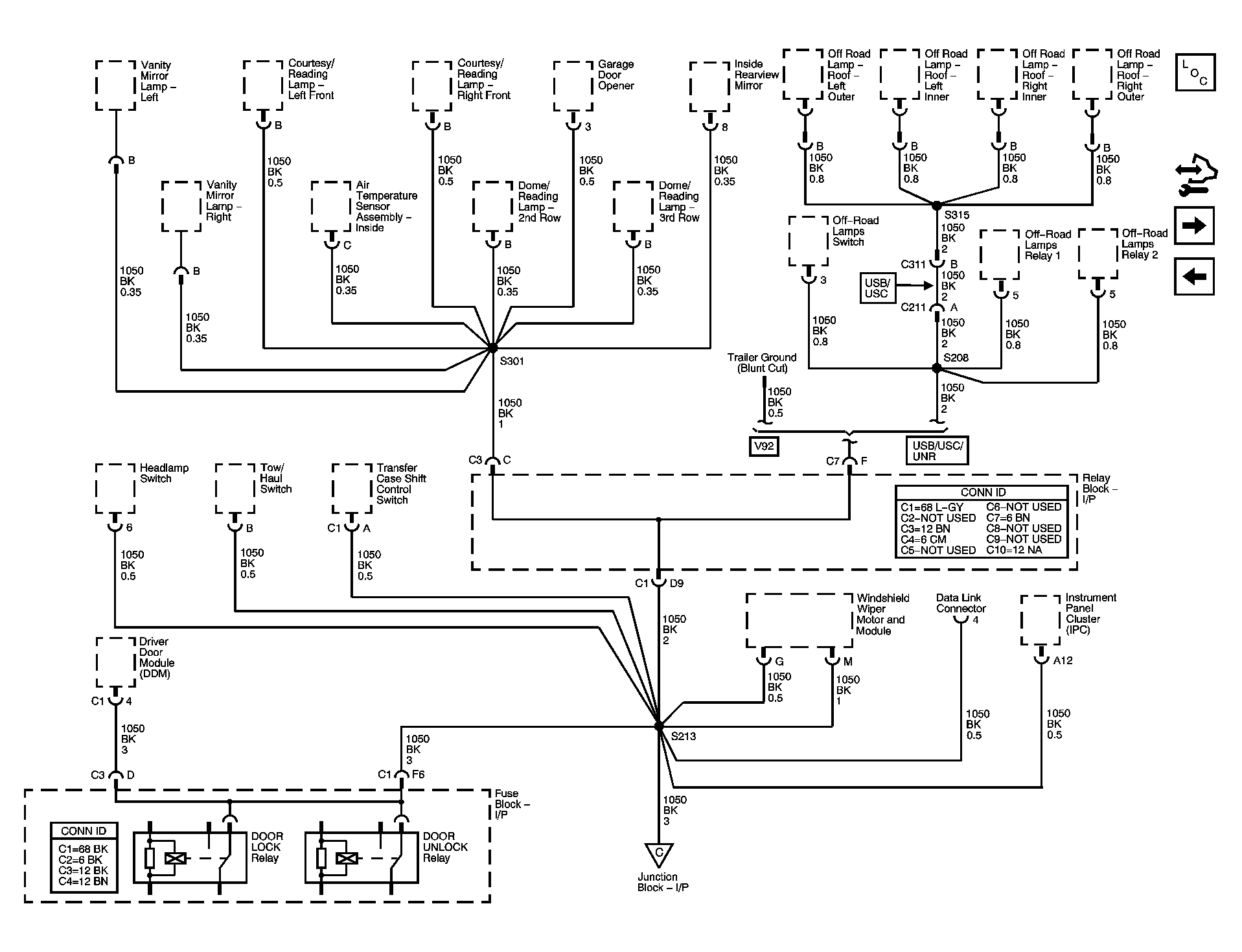

Fig 6: G203 - 2 of 2

GM1462340

Courtesy of GENERAL MOTORS CORP.

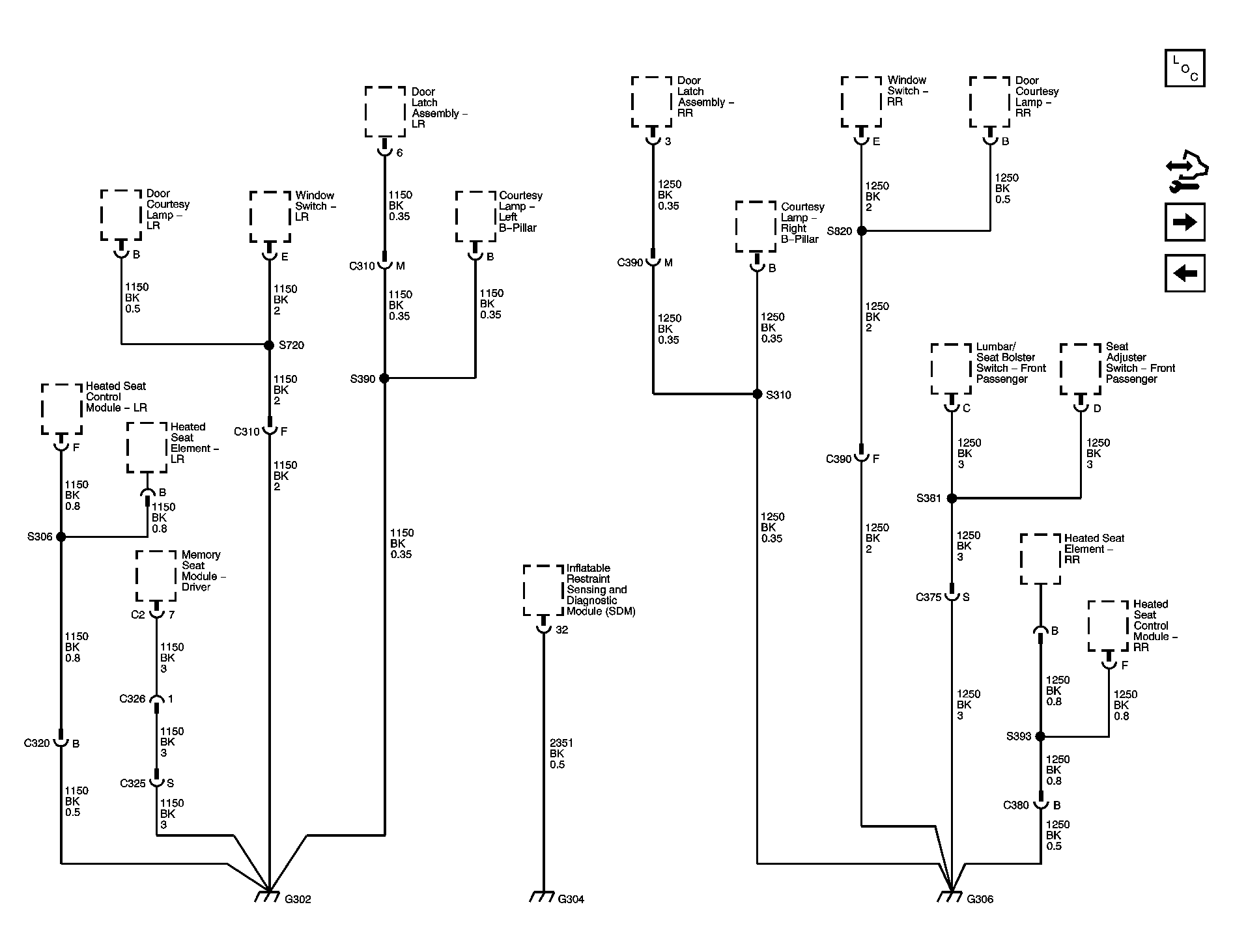

Fig 7: G302, G304 and G306

GM1462344

Courtesy of GENERAL MOTORS CORP.

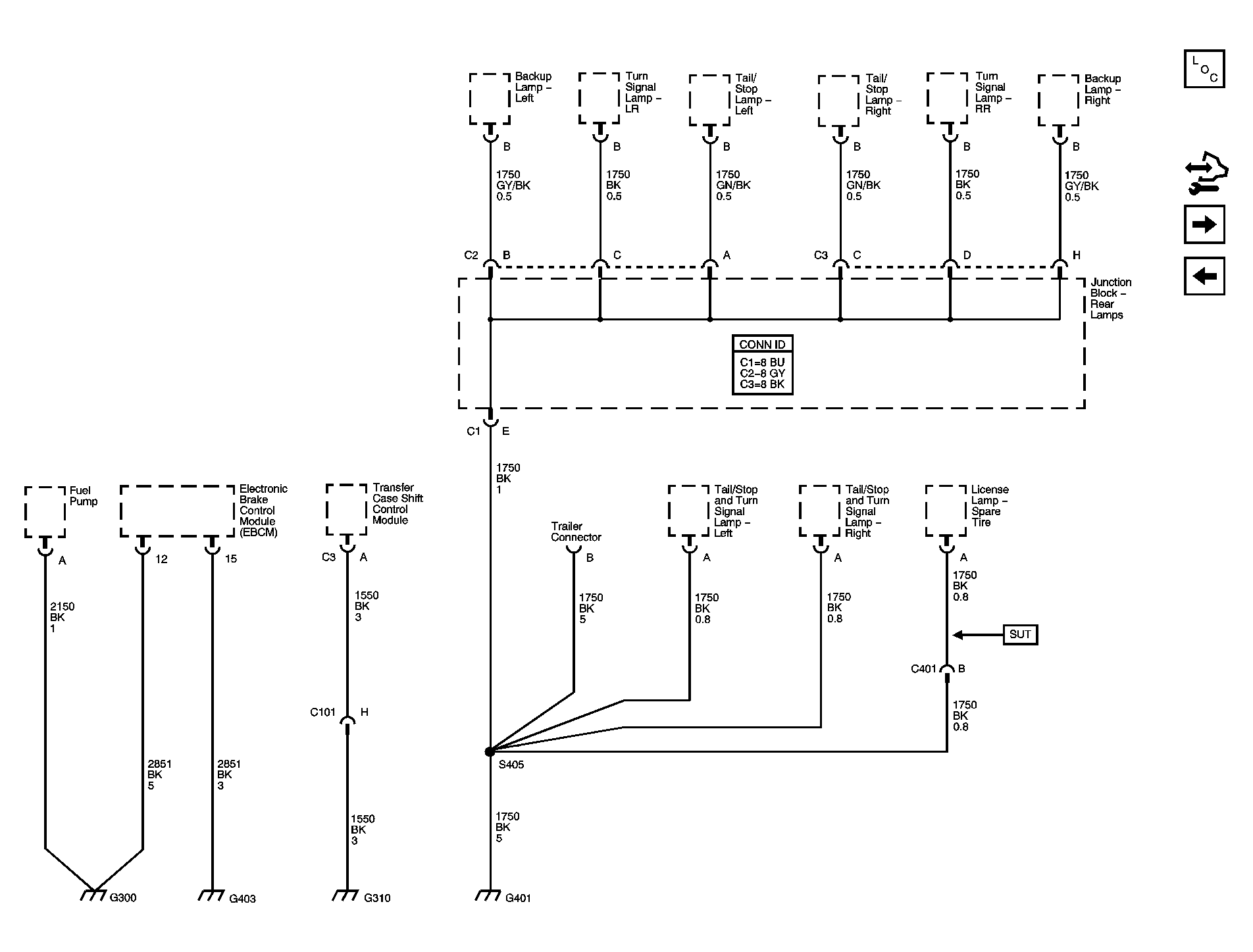

Fig 8: G300, G310, G401 and G403

GM1462346

Courtesy of GENERAL MOTORS CORP.

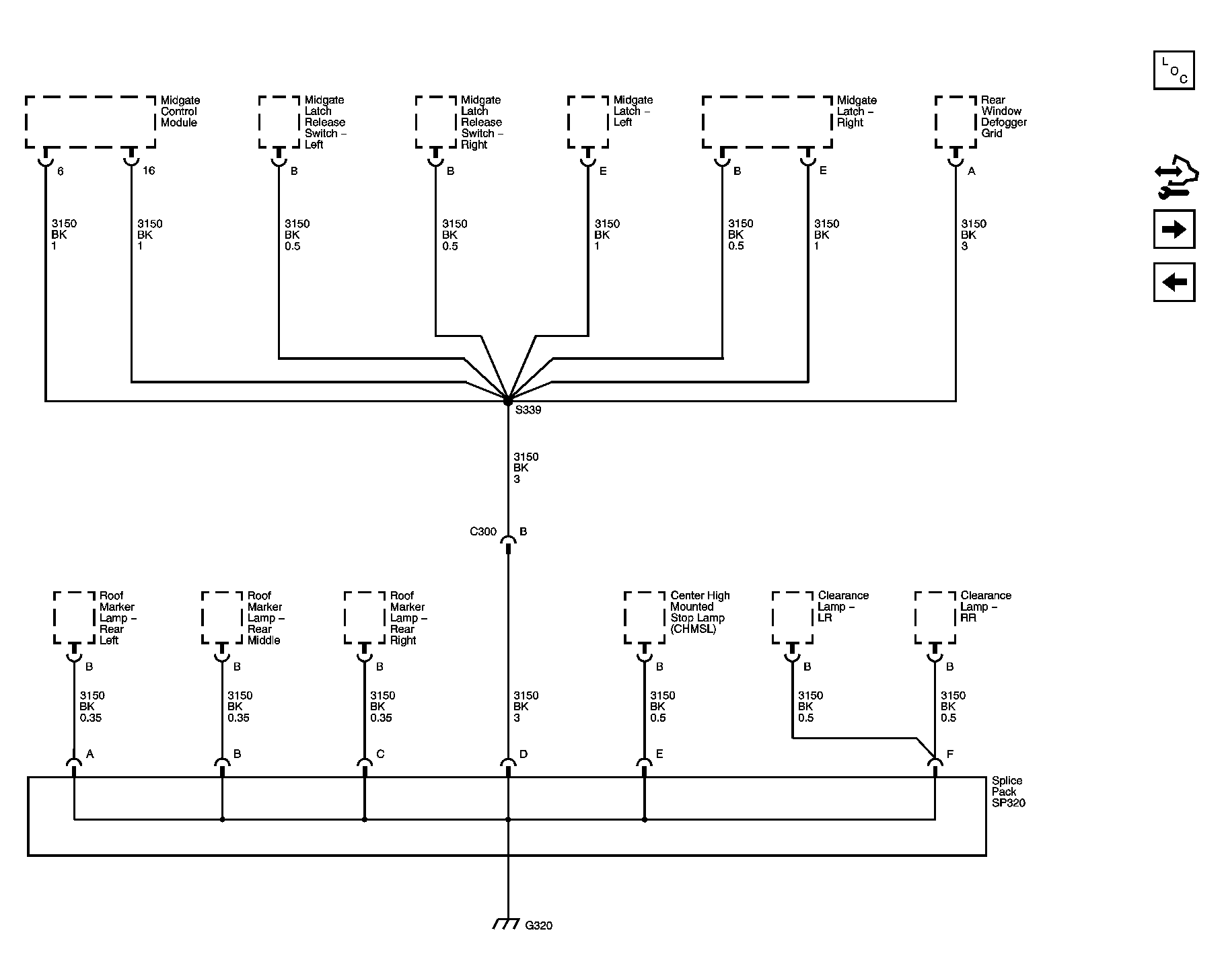

Fig 9: G320 - SUT

GM1462349

Courtesy of GENERAL MOTORS CORP.

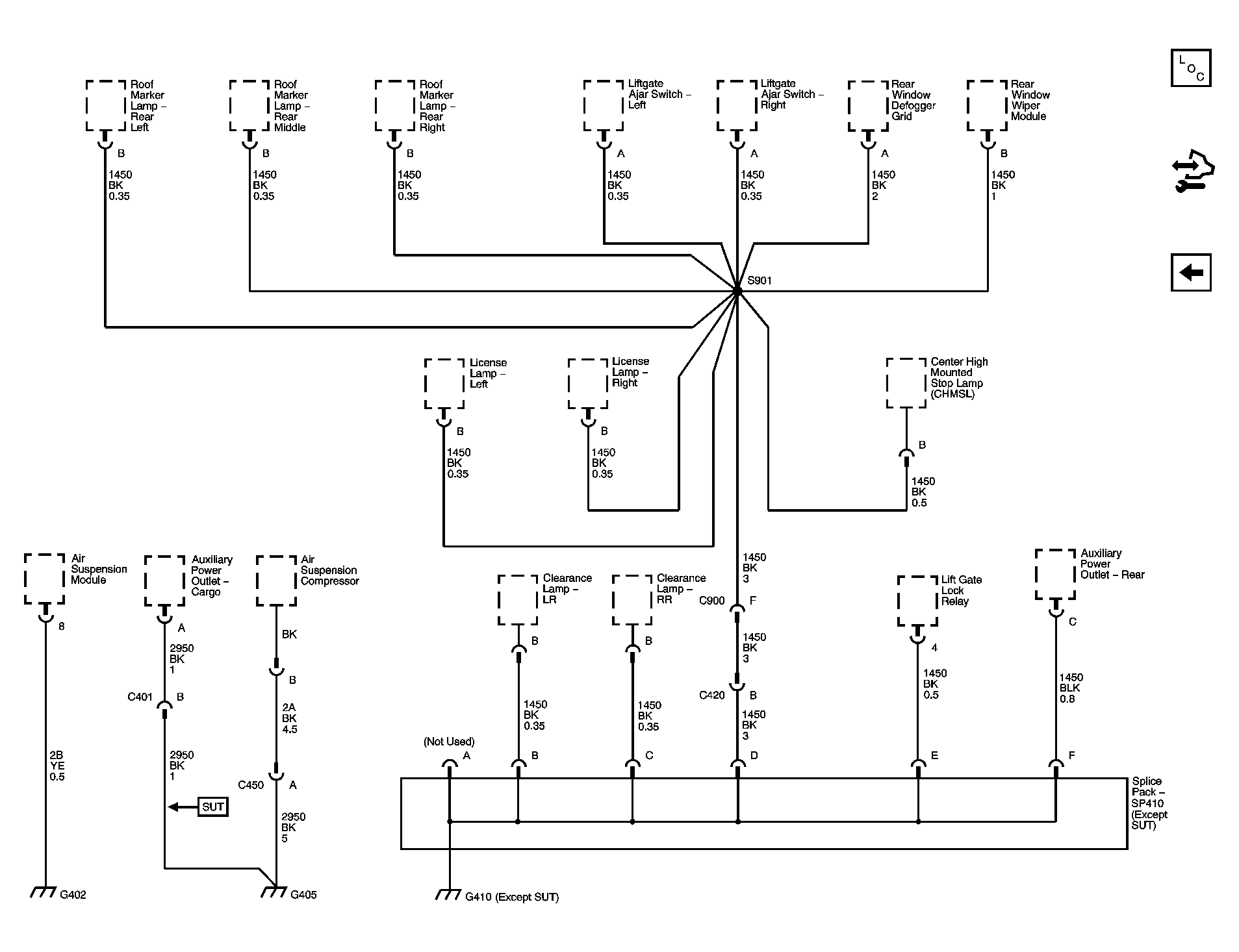

Fig 10: G402, G405, and G410

GM1462354

Courtesy of GENERAL MOTORS CORP.
