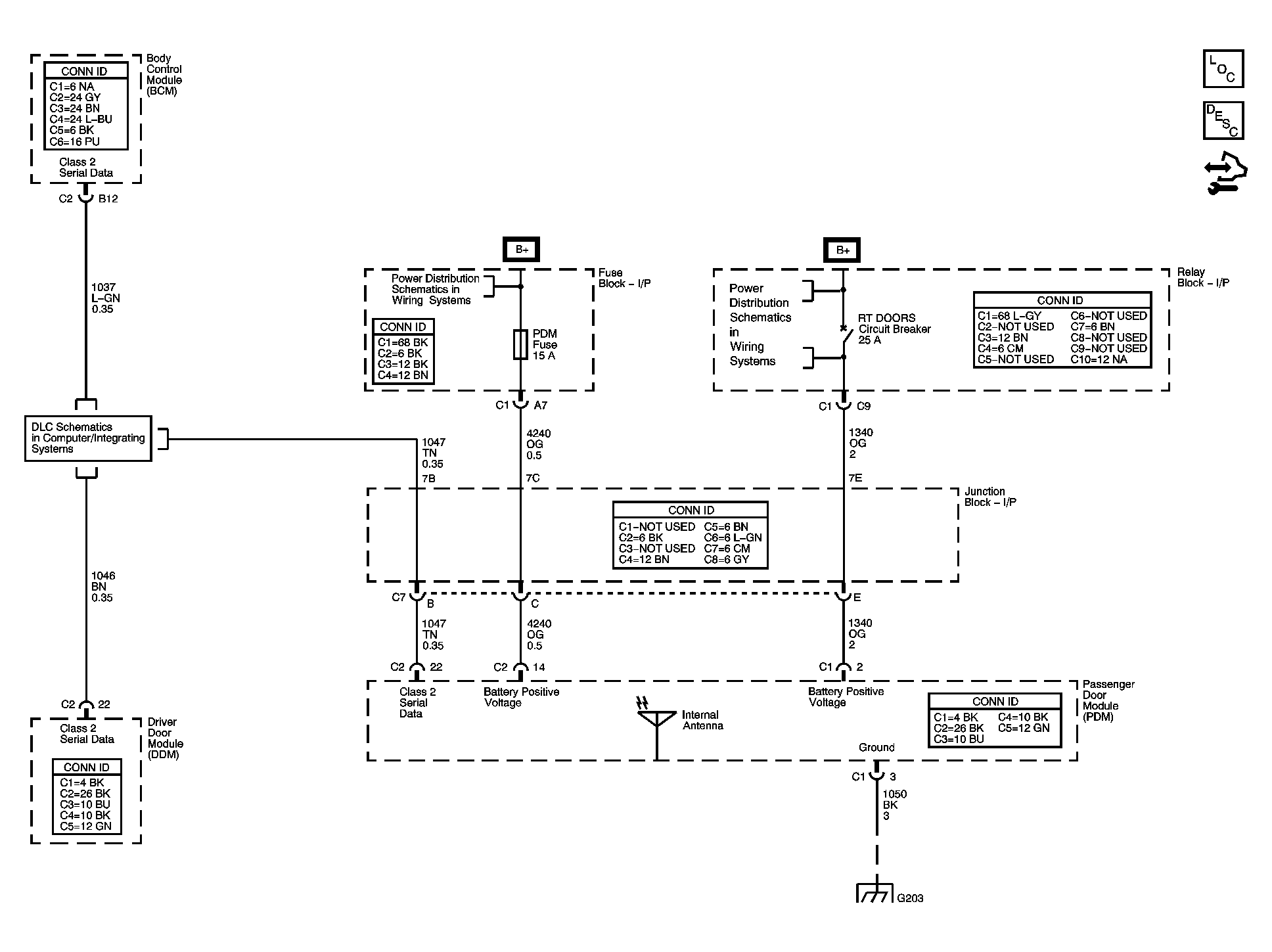

Home >> Hummer >> 2005 >> H2 4D Utility Pickup >> Repair and Diagnosis (Single Page) >> Body & Frame >> Door Locks >> Keyless Entry System >> Schematic And Routing Diagrams >> Keyless Entry Schematics
