Installation Procedure

WARNING: This page is about a different car, the 2003 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

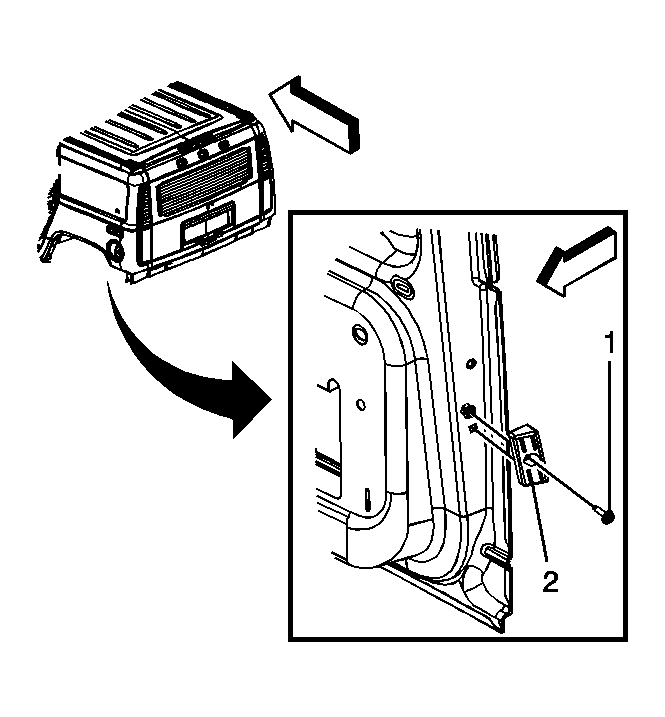

    Fig 1: Wedge & Liftgate
    GM832854Courtesy of GENERAL MOTORS CORP.
  1. Align the wedge (2) to the liftgate.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fastener (1) retaining the wedge to the liftgate.

    Tighten:  Tighten the fastener to 9 N.m (7 lb ft).
