Installation Procedure

WARNING: This page is about a different car, the 2003 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

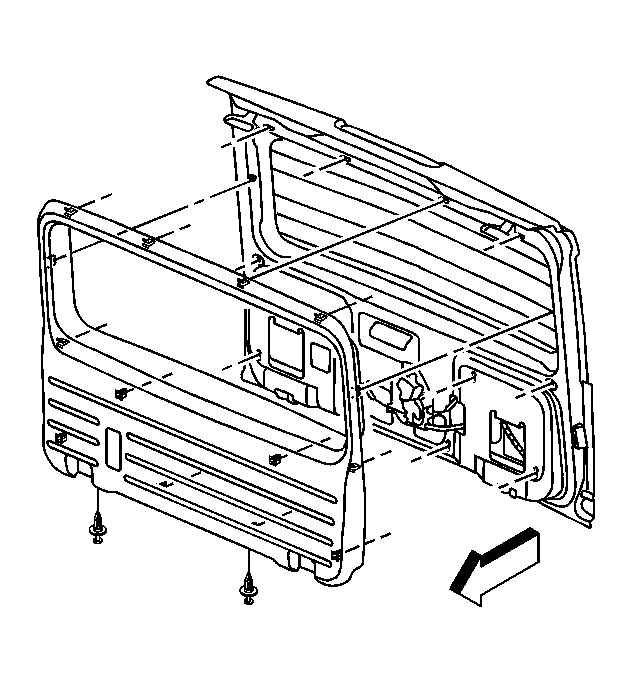

    Fig 1: Liftgate Trim Panel
    GM833482Courtesy of GENERAL MOTORS CORP.
  1. Install the lift gate trim panel to the vehicle on the liftgate trim panel.
    1. Align the retaining clips on the liftgate trim panel with the openings in the lift gate.
    2. Gently press inward on the liftgate trim panel to engage the clips.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.

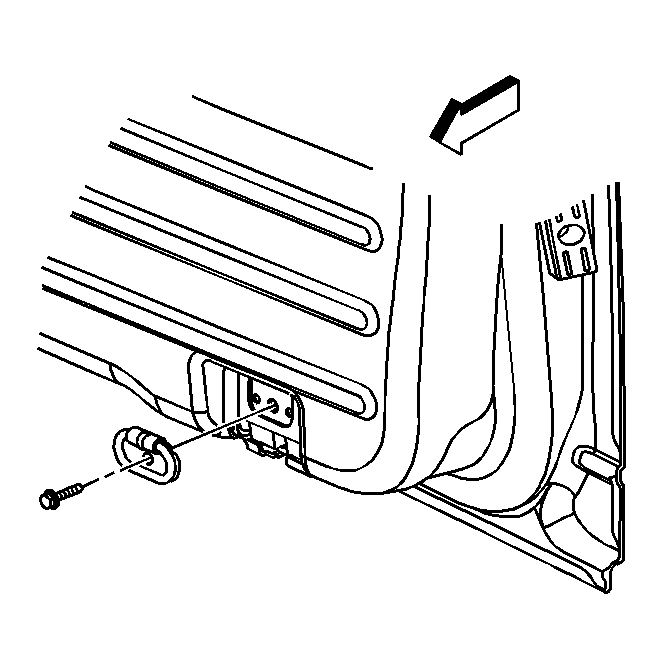

    Fig 2: Cargo Tie Down
    GM833484Courtesy of GENERAL MOTORS CORP.
  2. Install the cargo tie down and secure with the tie down bolt.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

  3. Install the lift gate pullstrap. Refer to Pullstrap Replacement - Liftgate  .
  4. Install the 2 push pin fasteners at the bottom edge of the liftgate trim panel.
